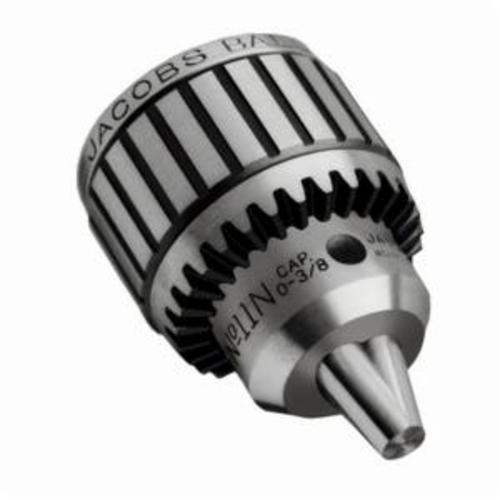

Jacobs® 30215 11N Super Drill Chuck, 0.04 to 0.375 in Capacity, 2JT Mounting, Ball Bearing, K32
Jacobs® 30215 11N Super Drill Chuck, 0.04 to 0.375 in Capacity, 2JT Mounting, Ball Bearing, K32
-
BrandJacobs®
-
UPC095456302150
-
Manufacturer Part Number30215
-
CountryUSA|Canada
-
Capacity0.04 to 0.375 in
-
Closed Length2.88 in
-
TypeSuper
-
Mounting Type2JT
-
Series11N
-
Bearing TypeBall
-
Open Length2.26 in
-
Key NumberK32
-
Outside Diameter1.93 in
- Jaws center-ground for absolute straightness and alignment
- Through-hardened sleeve teeth, plus hardened nose and keyholes provide outstanding wear resistance
- Steel chuck
- Each chuck 100% inspected for performance and precision
- One-piece sleeve eliminates crack between driving teeth often found in other designs
- Fluted sleeve standard
- T.I.R. 0.003 in maximum at half capacity
- Designed to work with a wide range of production drilling equipment, jig borers, milling machines, lathes and radials, this chuck is engineered for heavy duty, close tolerance production drilling
- Ball bearing construction maximizes gripping force and drilling accuracy
- Ball thrust bearings reduce friction and increase grip torque and overall performance
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 3L874 |
| Grainger | 3L874 |
-
UNSPSC27112807
-
Package Description1/BX
-
Warranty1 Year
-
