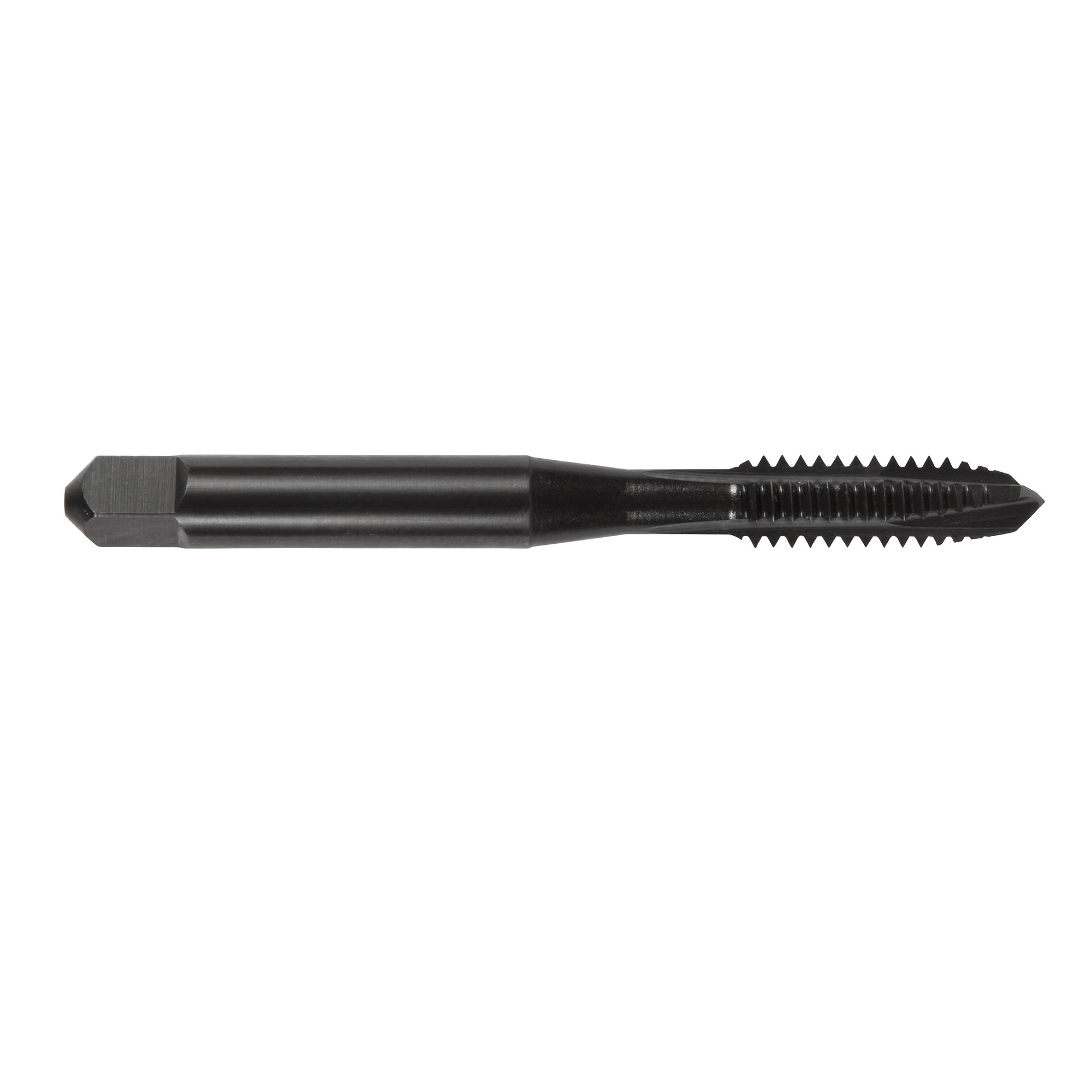

DRILLCO 215N120A 2150N Spiral Point Tap, Right Hand Cutting, M12x1.75 Thread, D6 Thread Limit, Plug Chamfer, 3 Flutes, Black Oxide, M35 HSS-Co
Nitro-Max ANSI/ANSI taps are produced with a reduced neck to allow for longer reach, improved coolant flow, and easier chip evacuation. These taps offer higher heat resistance and red hardness over conventional High Speed Steel taps. For CNC applications.
-
BrandDrillco
-
UPC045996892949
-
Manufacturer Part Number215N120A
-
CountryUSA|Canada
-
Finish/CoatingBlack Oxide
-
MaterialM35 HSS-Co
-
Thread LimitD6
-
Material ApplicationHigh Tensile Strength Steel and Stainless Steel
-
Thread SizeM12x1.75
-
Chamfer TypePlug
-
Through Coolant (Yes/No)Yes
-
Measurement SystemMetric
-
Series2150N
-
Number of Flutes3
-
Cutting DirectionRight Hand
-
Overall Length3-3/8 in
- Available in plug geometry
- Black oxide surface treatment for extended life
- Reduced neck for better clearance in deeper holes
- Black oxide surface treatment provides improved lubricity and helps prevent the formation of built up edge
- Spiral point taps are designed for producing through holes in a workpiece
- Available in plug geometry
- Reduced neck for better clearance in deeper holes
-
UNSPSC27112806
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified|USCTI 302A|PROP65: This product can expose you to chemicals including Cobalt, which is [are] known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
-
SDS
-
Catalog
