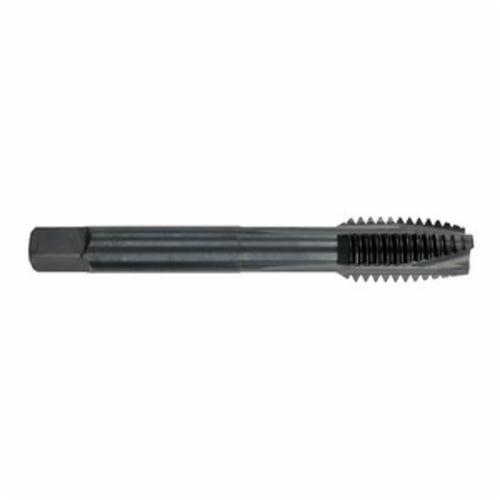

ShearTap™ 35248 2090M Oversized Spiral Point Tap, Right Hand Cutting, M10x1.25 Thread, D6 Thread Limit, Plug Chamfer, 3 Flutes, Black Steam Oxide Over Nitride, HSS
ShearTap™ 35248 2090M Oversized Spiral Point Tap, Right Hand Cutting, M10x1.25 Thread, D6 Thread Limit, Plug Chamfer, 3 Flutes, Black Steam Oxide Over Nitride, HSS
-
BrandShearTap™
-
UPC686125352486
-
Manufacturer Part Number35248
-
CountryUSA
-
Finish/CoatingBlack Steam Oxide Over Nitride
-
Thread Length3/4 in
-
MaterialHSS
-
Thread LimitD6
-
Material ApplicationSteels and Stainless Steels up to 35Rc Hardness
-
Thread SizeM10x1.25
-
Chamfer TypePlug
-
Measurement SystemMetric
-
TypeOversized
-
Series2090M
-
Number of Flutes3
-
Cutting DirectionRight Hand
-
Overall Length2-15/16 in
- ShearTap™ offers exceptional value for high volume tapping
- The geometry is optimized for long chipping steels and stainless steels up to a hardness of 35Rc
- Made with premium high speed steel with an enhanced flute design, the ShearTap™ offer great chip management, cutting edge strength and wear resistance, resulting in a high quality threads
- Spiral point taps are designed for machine tapping in through holes in a wide variety of materials
- The point ejects the chips ahead of the tap, eliminating chip disposal problems and thread damage
- Shallower flutes also result in greater tap core strength allowing for higher cutting speeds
- Plug style (3 to 5 thread chamfer) is the most common chamfer used for tapping applications in through holes and blind holes with sufficient bottom clearance
- CNC reduced neck design enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling
- Also reduces contact between the tap and the workpiece
- Steam oxide over nitride features a hard abrasive resistant nitride base for enhanced tool life in abrasive materials including cast iron
- Steam oxide surface treatment reduces friction, loading and galling, helps retain cutting fluids, improves thread quality and extends tool life
-
UNSPSC23241615
-
Package Description1/PK
-
Standards/ApprovalsISO 9001:2008
-
