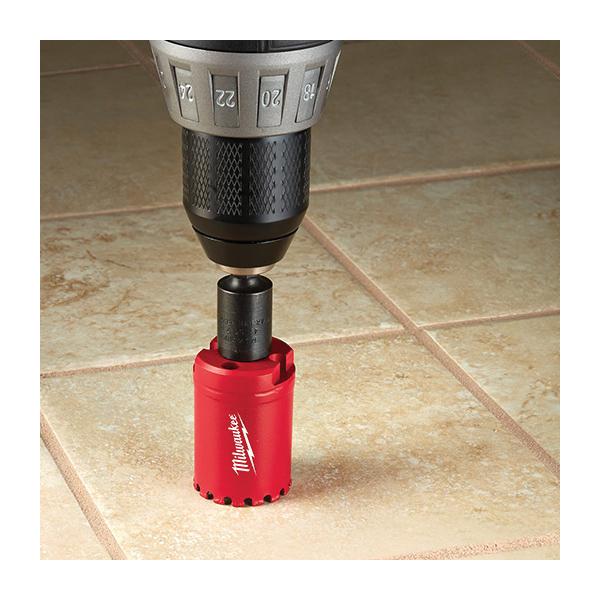

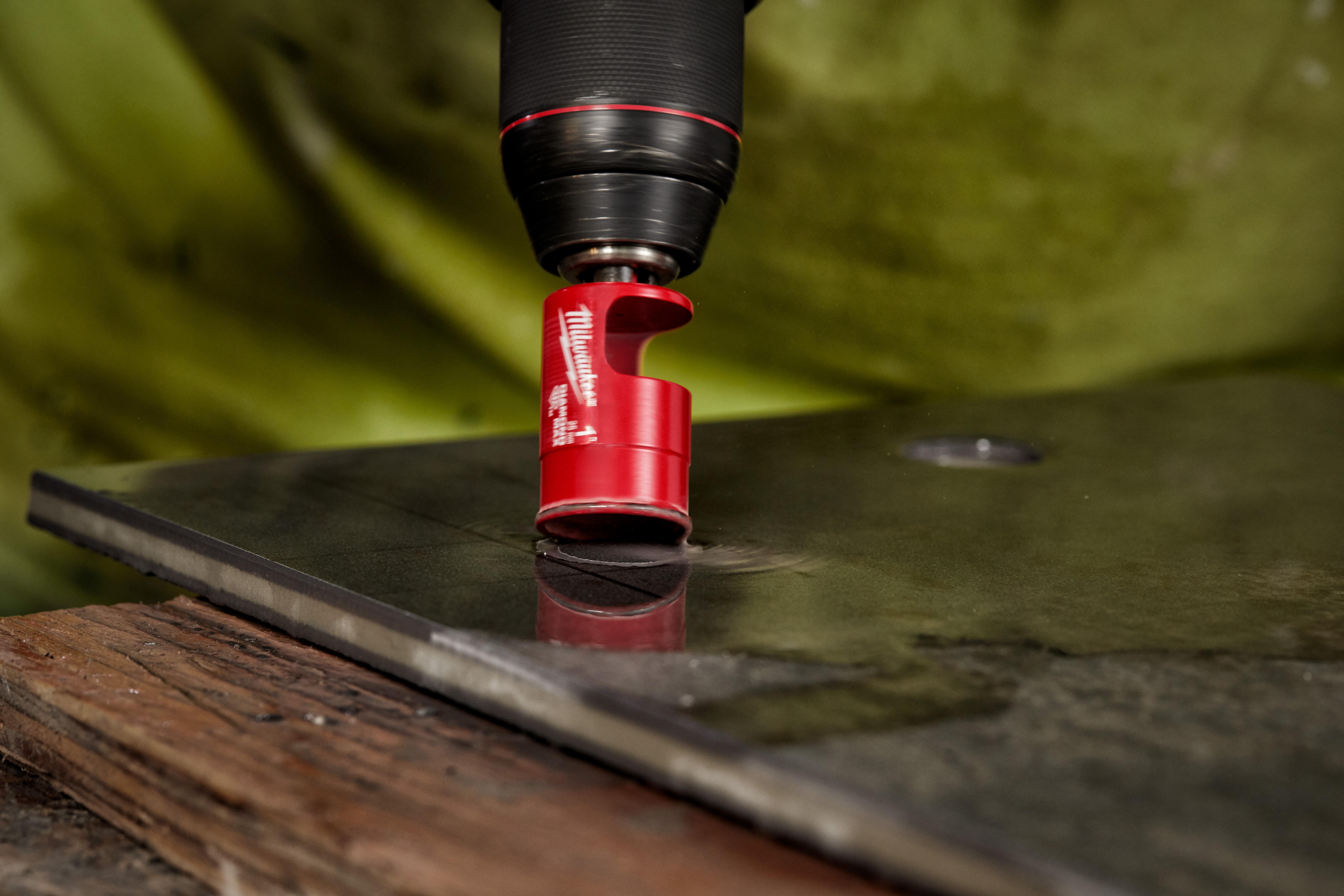

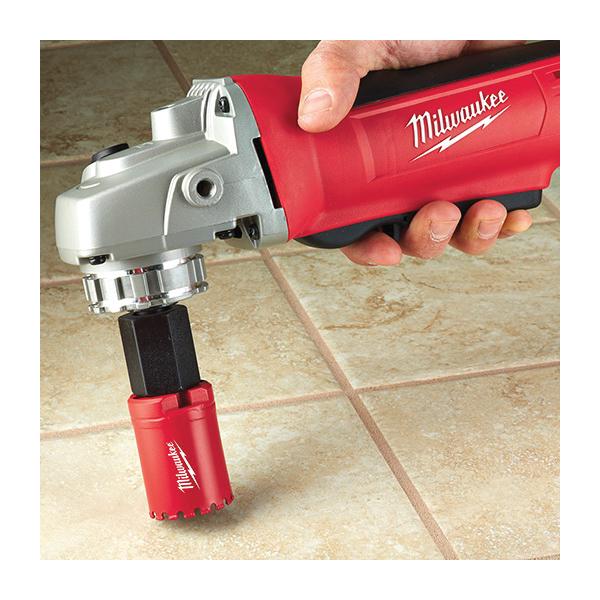

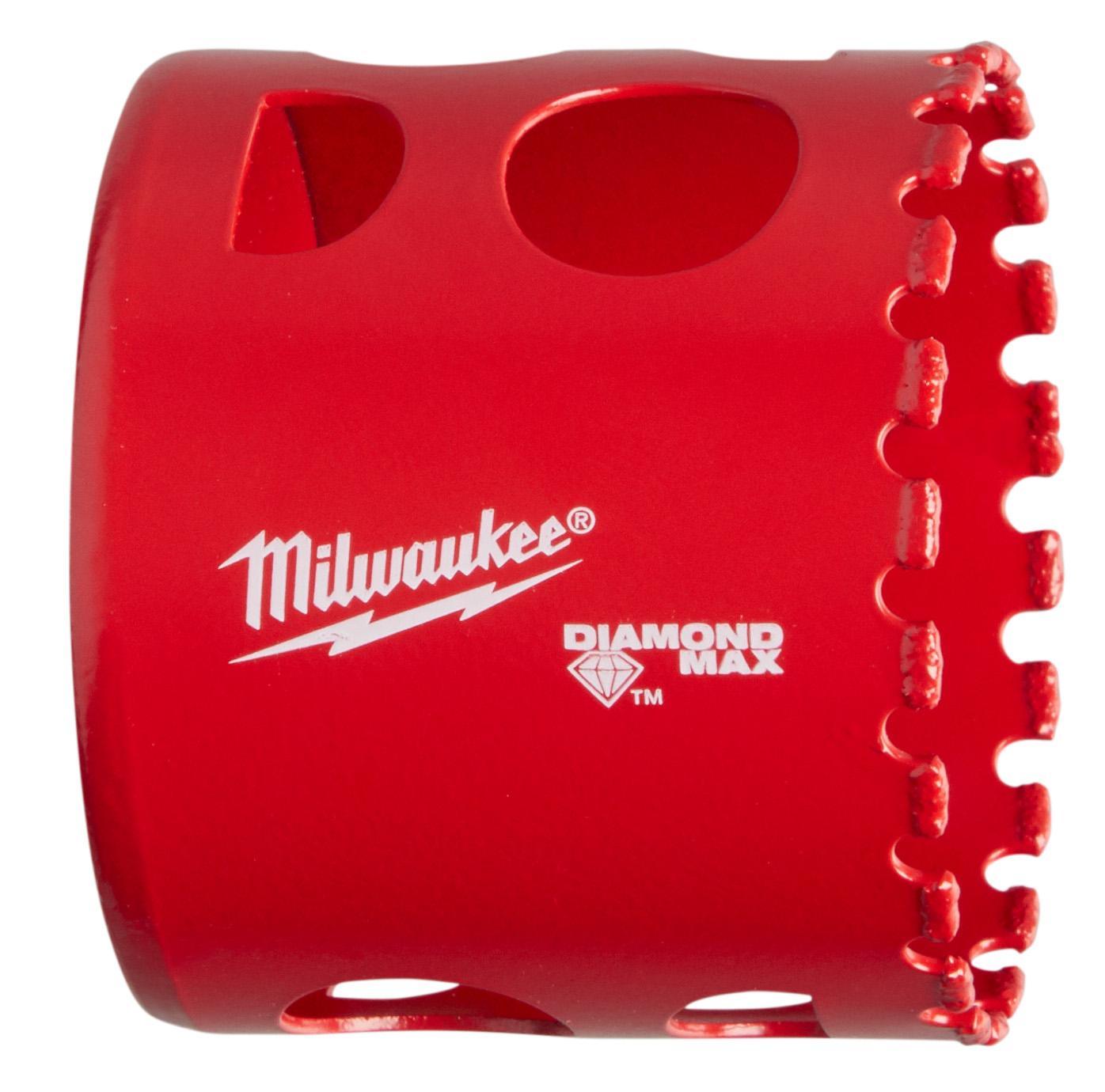

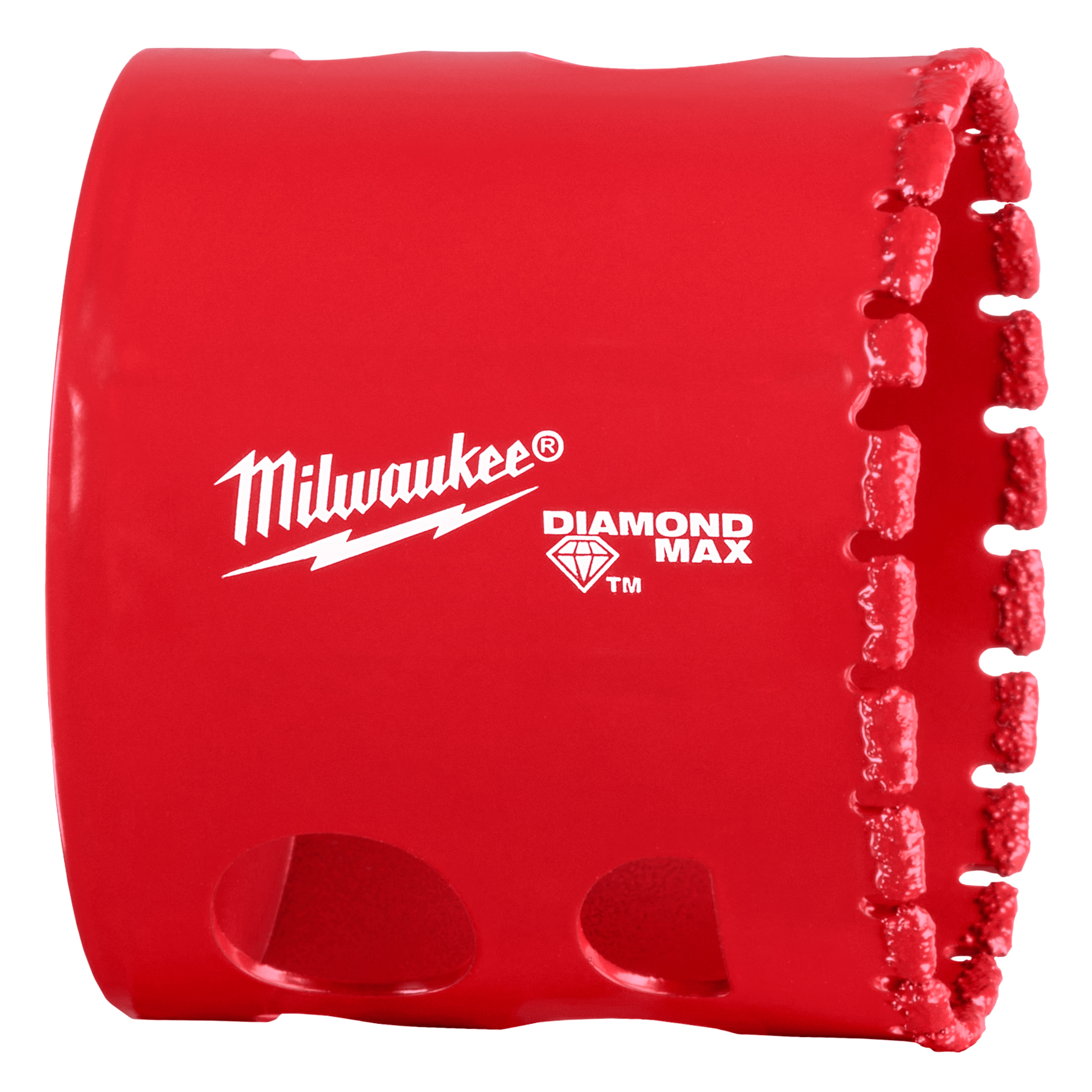

Milwaukee® Diamond Plus™ 49-56-5645 Diamond Grit Threaded Hole Saw, 2 in Dia, 1-1/2 in D Cutting
The MILWAUKEE® 2" Diamond Max™ Hole Saw delivers up to 20X longer life with unmatched cuts in porcelain. Diamond Max™ Hole Saws offer best-in-class performance with higher-grade diamonds and superior retention. Features Maximum wear resistance to tackle the most demanding tile and stone applications. The improved grip delivers easier starts into material for clean, fast cuts. Designed for more cutting with less clogging.
-
BrandMilwaukee®
-
UPC045242308507
-
Manufacturer Part Number49-56-5645
-
CountryUSA|Canada
-

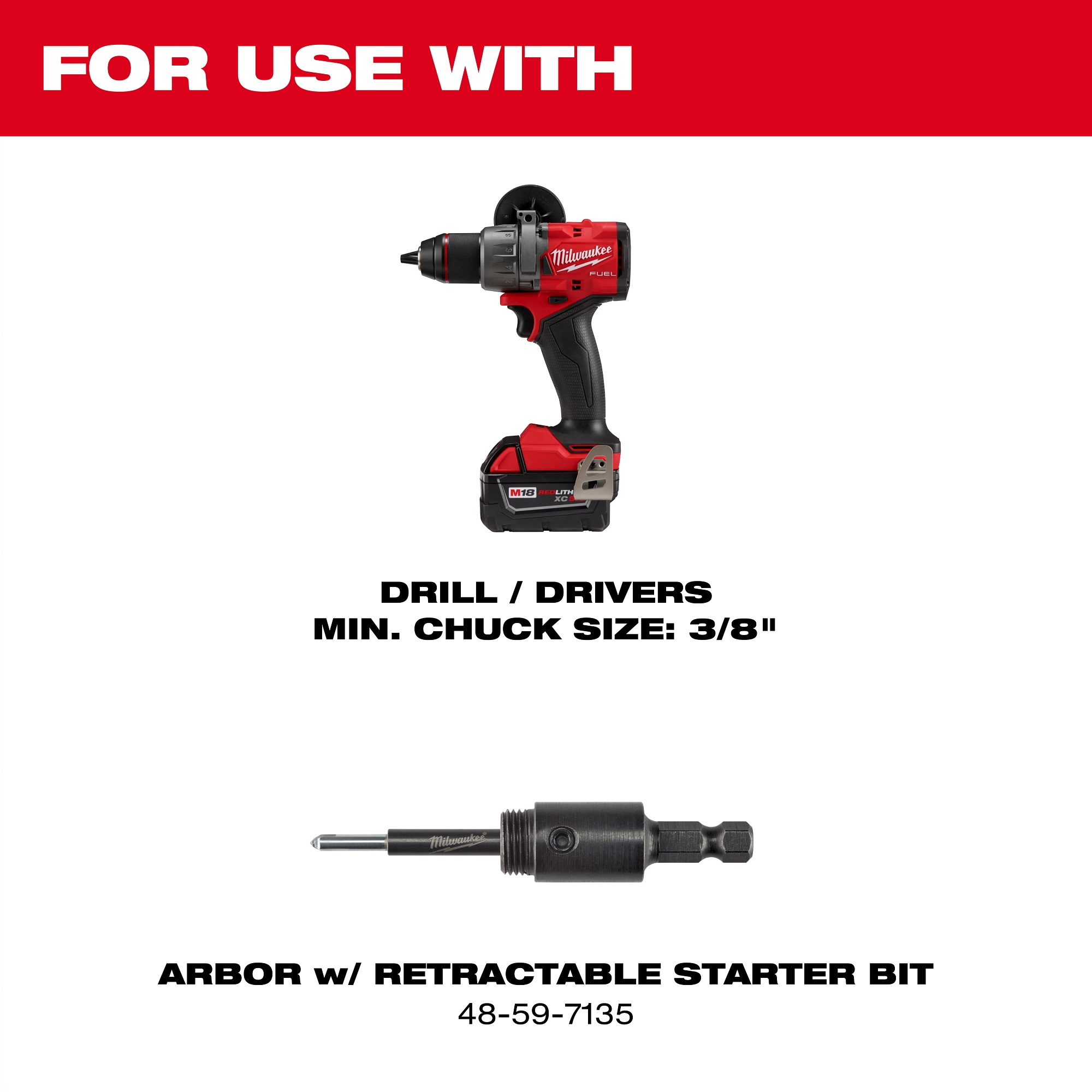

Chuck Size1/2 in
-
TypeDiamond Grit Threaded
-
Applicable MaterialsGlass, Stone and Tile
-
Series49-56
-
Cutting Depth1-1/2 in
-
Shank Size7/16 in
-
Shank TypeHex
-
Diameter2 in
-
Drill Size1/4 in Dia x 2 in L
-
Overall Length1-5/8 in
-
TPI or Pitch4 TPI

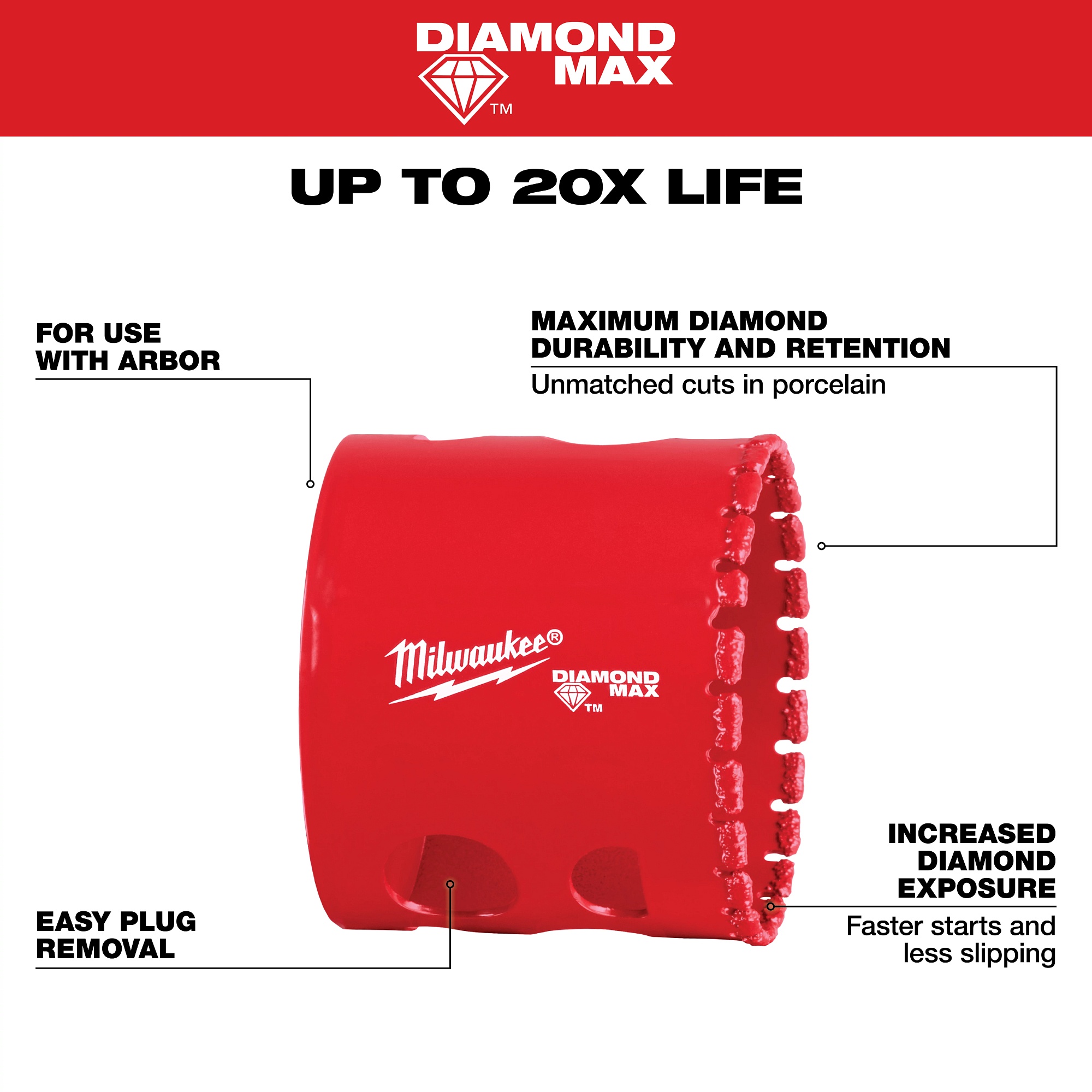

- Maximum diamond durability and retention
- Fastest cutting in porcelain
- Faster starts and less slipping
- More cutting, less clogging
- Dip bit in water before each cut
- Easy Plug Removal
- Easy plug removal
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 33UH18 |
| MSC | 42867861 |
| Fastenal | 2115774 |
-
Alternative Part Number13926378
-
UNSPSC27112826
-
IDEA Index ID13926378
-
Package DescriptionEACH
-
WarrantyNo Warranty
