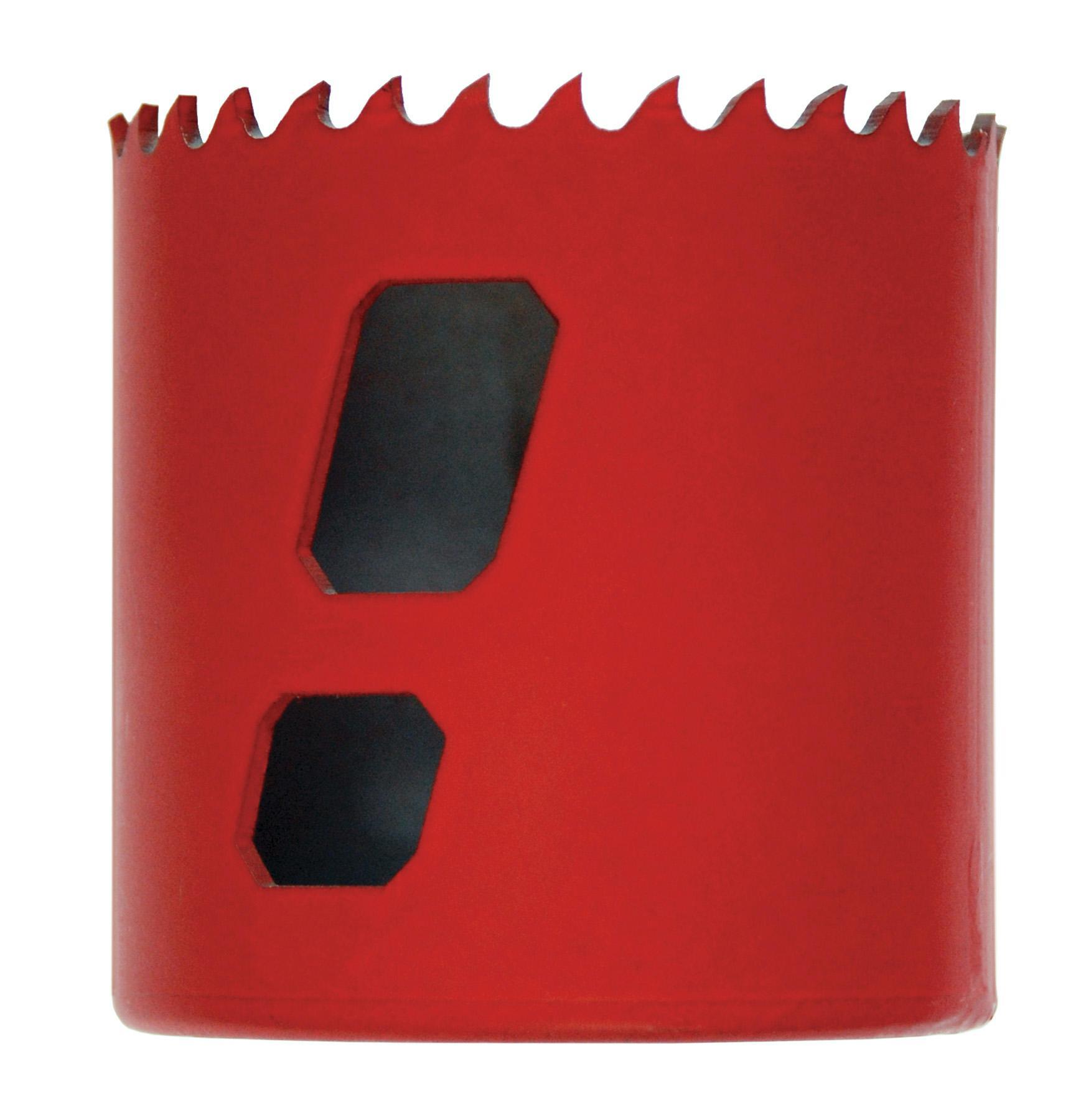

Morse® 177283 MHS Advanced Hole Saw, 1-3/4 in Dia, 1-15/16 in D Cutting, M42 HSS-Co 8 Cutting Edge, 5/8-18 Arbor
The all new advanced bi-metal hole saw by M.K. Morse®. Our latest sawing innovation replaces all current Morse bi-metal hole saw solutions into one, simple optimized powerhouse. Arbor required.
-
BrandMorse®
-
UPC050326177283
-
Manufacturer Part Number177283
-
CountryUSA|Canada
-
Chuck Size1/2 in
-
ColorRed
-
TypeAdvanced
-
Use ArborMA45PS
-
Applicable MaterialsMachinable Metal, Nail Embedded Wood, Plastic, Stainless Steel Alloy and Wood
-
Arbor Size5/8-18
-
SeriesMHS
-
Cutting Depth1-15/16 in
-
Shank Size7/16 in
-
Cutting Edge MaterialM42 HSS-Co 8
-
Cutting Edge StyleToothed
-
Shank TypeHex
-
Diameter1-3/4 in
-
Speed95 to 295 rpm
-
Drill Size1/4 in Dia x 3-3/32 in L
-
Body MaterialBi-Metal
-
TPI or Pitch5/6 TPI
- Bimetal cutting edge for heat and wear resistance
- Patented tooth set assists in slug removal
- Positive tooth rake penetrates quickly and cuts faster
- Solid cap construction reducing vibration, cutting faster
- New Side Slot - Increased leverage for faster, easier slug removal
- New exterior red coating - reduces side wall friction for efficient cutting
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | FZ50177283 |
-
Alternative Part NumberMHS28
-
UNSPSC27112826
-
Package DescriptionEACH
-
WarrantyLimited
-
Specification Sheet
-
Catalog
-
Warranty Information
