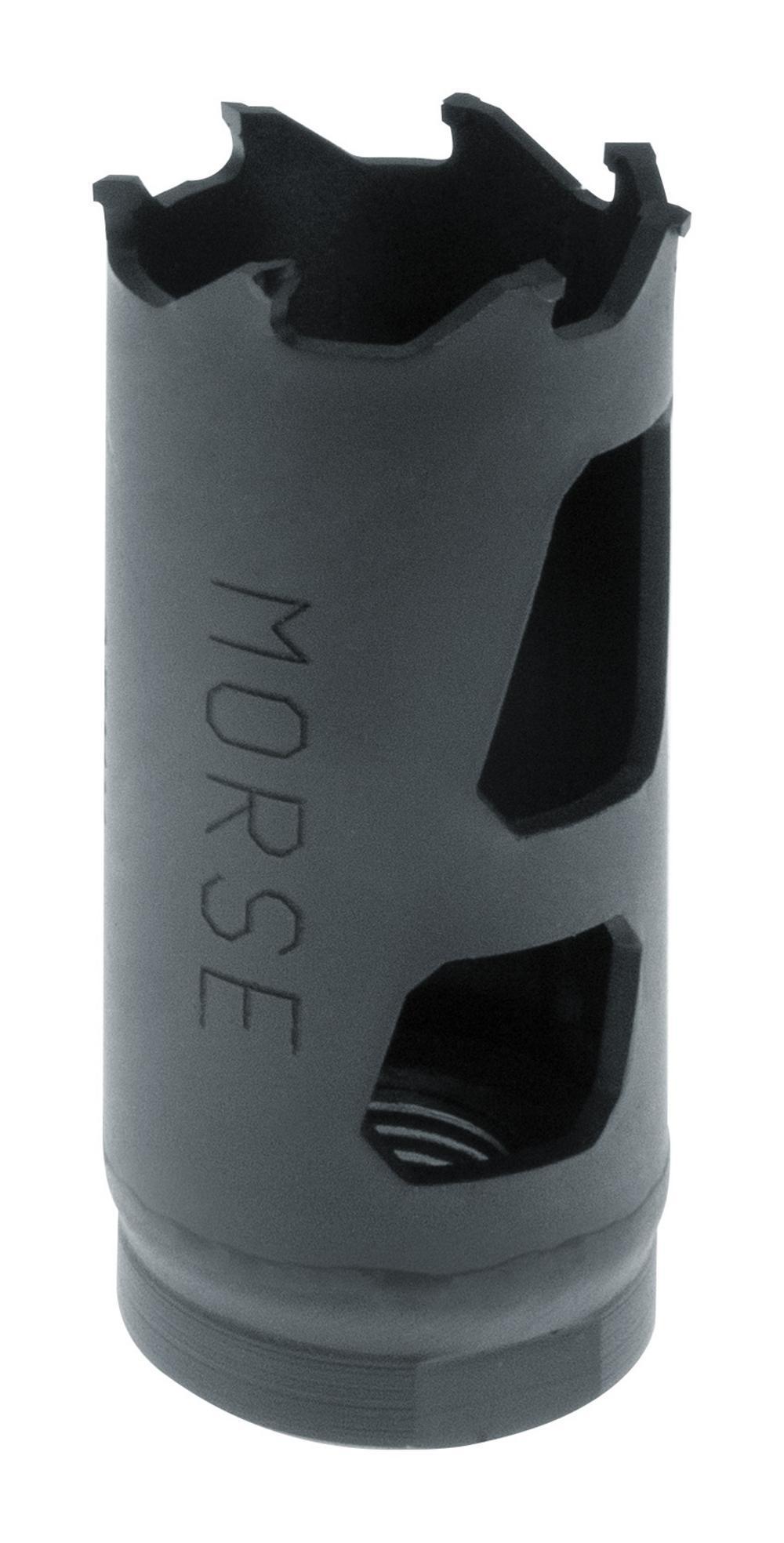

Morse® 157186 MHST Hole Saw, 1-1/8 in Dia, 1-15/16 in D Cutting, Tungsten Carbide Cutting Edge, 1/2-20 Arbor
Morse® 131186 MHSTK Hole Saw, 1-1/8 in Dia, 1-15/16 in D Cutting, Carbide Cutting Edge, 1/2 to 20 Arbor
-
BrandMorse®
-
UPC050326157186
-
Manufacturer Part Number157186
-
CountryUSA
-
Chuck Size3/8 in
-
Use ArborMA34CT
-
Applicable MaterialsAcoustic Tile, Countertops, Drywall, Fiberboard, Fiberglass, Nail-Free Wood, Plaster and Plastic
-
Arbor Size1/2-20
-
SeriesMHST
-
Cutting Depth1-15/16 in
-
Shank Size3/8 in
-
Cutting Edge MaterialTungsten Carbide
-
Cutting Edge StyleToothed
-
Shank TypeHex
-
Diameter1-1/8 in
-
Speed150 to 450 rpm
-
Drill Size1/4 in Dia x 3-3/32 in L
-
Body MaterialSteel
-
TPI or Pitch3 TPI
- Special tooth design for very fasthole saw cutting
- Ground and set teeth help to cut materialsthat bi-metal saws will not cut
- 3 TPI creates a wider gullet forbetter chip clearance and faster cutting
- Tungsten carbide tooth tips offer the highest wear resistance possible for fast holes and longer life cutting abrasive materials
- Arbor required
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | FZ50157186 |
-
Alternative Part NumberMHST18
-
UNSPSC27112826
-
Package Description1/PK
-
WarrantyLimited
-
Specification Sheet
-
Warranty Information
-
Catalog
