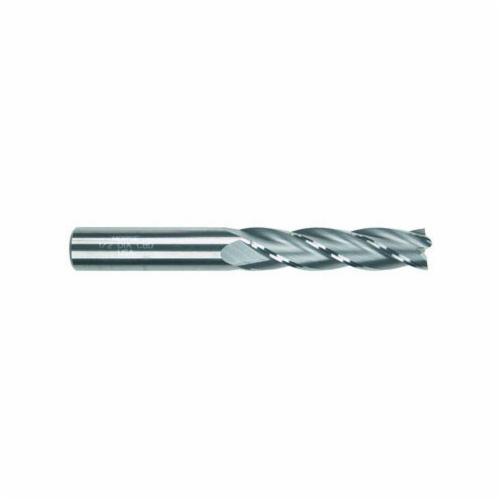

MORSE C/Tool 5/16" 4-FL CARBIDE SE LONG ENDMILL MCT 58150
MORSE® 58150 5955 Center Cutting Long Length Single End End Mill, 5/16 in Dia Cutter, 1-1/8 in Length of Cut, 4 Flutes, 5/16 in Dia Shank, 3 in OAL, Bright
-
BrandMORSE®
-
UPC686125581503
-
Manufacturer Part Number58150
-
CountryUSA
-
FinishBright
-
MaterialSolid Micrograin Carbide
-
Flute TypeSpiral
-
TypeCenter Cutting Long Length Single End
-
Helix Angle30 deg
-
Series5955
-
Cutter Diameter5/16 in
-
Shank Diameter5/16 in
-
Number of Flutes4
-
Cutting DirectionRight Hand
-
Shank TypePlain/Round
-
Length of Cut1-1/8 in
-
Overall Length3 in
- 4 flute end mills with a greater core thickness offer increased tool strength and reduced tool deflection
- 4 flutes also reduce chip load per tooth for the milling of tougher materials, greater wear resistance and improved surface finish
- Center cutting end allows for plunge cutting like a drill into solid material
- External coolant
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | MT3258150 |
-
UNSPSC23242511
-
Package Description1/PK
-
Standards/ApprovalsISO 9001:2008
-
