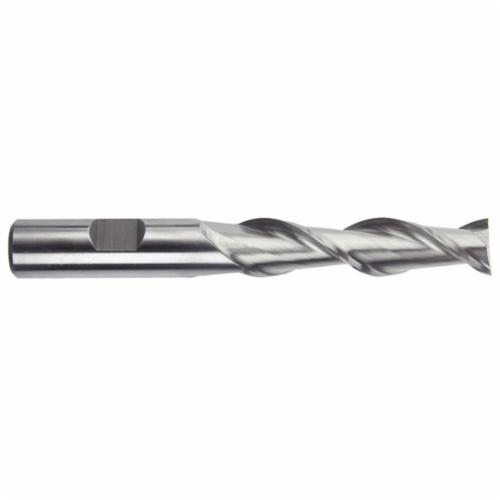

MORSE C/Tool 3/8" 2-FLUTE HSS SE CC ENDMILLS MCT 44053
MORSEĀ® 44053 1921 Center Cutting High Helix Long Length Single End End Mill, 3/8 in Dia Cutter, 1-1/2 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3-1/4 in OAL, Bright
-
BrandMORSEĀ®
-
UPC686125440534
-
Manufacturer Part Number44053
-
CountryUSA
-
FinishBright
-
MaterialHSS
-
Flute TypeSpiral
-
TypeCenter Cutting High Helix Long Length Single End
-
Helix Angle37 deg
-
Series1921
-
Cutter Diameter3/8 in
-
Shank Diameter3/8 in
-
Number of Flutes2
-
Cutting DirectionRight Hand
-
Shank TypeRound/Weldon Flat
-
Length of Cut1-1/2 in
-
Overall Length3-1/4 in
- 2-flute end mills provide increased chip capacity and are recommended for milling slots, keyways and pockets
- Center cutting end allows for plunge cutting like a drill into solid material
- High helix end mills are recommended for aluminum, magnesium, zinc alloys and other soft non-ferrous materials
- The higher helix angle provides a positive smoother cutting shearing action and enhanced chip evacuation
-
UNSPSC23242511
-
Package Description1/PK
-
Standards/ApprovalsISO 9001:2008
