MORSE C/Tool 1/2" 4-FLUTE DE CC CARBIDE ENDMILL MCT 57132

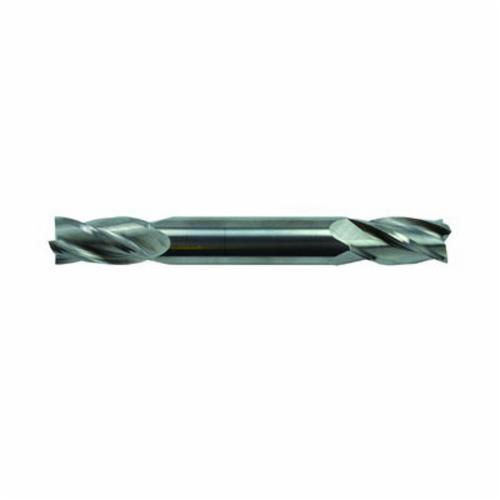

MORSE® 57132 5895 Center Cutting Double End Regular Length End Mill, 1/2 in Dia Cutter, 1 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 4 in OAL, Bright
-
BrandMORSE®
-
UPC686125571320
-
Manufacturer Part Number57132
-
CountryUSA
-
FinishBright
-
MaterialSolid Micrograin Carbide
-
Flute TypeSpiral
-
TypeCenter Cutting Double End Regular Length
-
Helix Angle30 deg
-
Series5895
-
Cutter Diameter1/2 in
-
Shank Diameter1/2 in
-
Number of Flutes4
-
Cutting DirectionRight Hand
-
Shank TypeRound/Weldon Flat
-
Length of Cut1 in
-
Overall Length4 in
- 4 flute end mills with a greater core thickness offer increased tool strength and reduced tool defection also reduce chip load per tooth for the milling of tougher materials, greater wear resistance and improved surface finish
- Recommended for easy-to-machine materials including low alloy steels, non-ferrous materials and cast iron
- Center cutting end allows for plunge cutting like a drill into solid material
- Solid carbide offers excellent rigidity, hardness, wear resistance and heat resistance for higher cutting speeds and longer tool life
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | MT3257132 |
-
UNSPSC23241614
-
Package Description1/PK
-
Standards/ApprovalsISO 9001:2008
-
