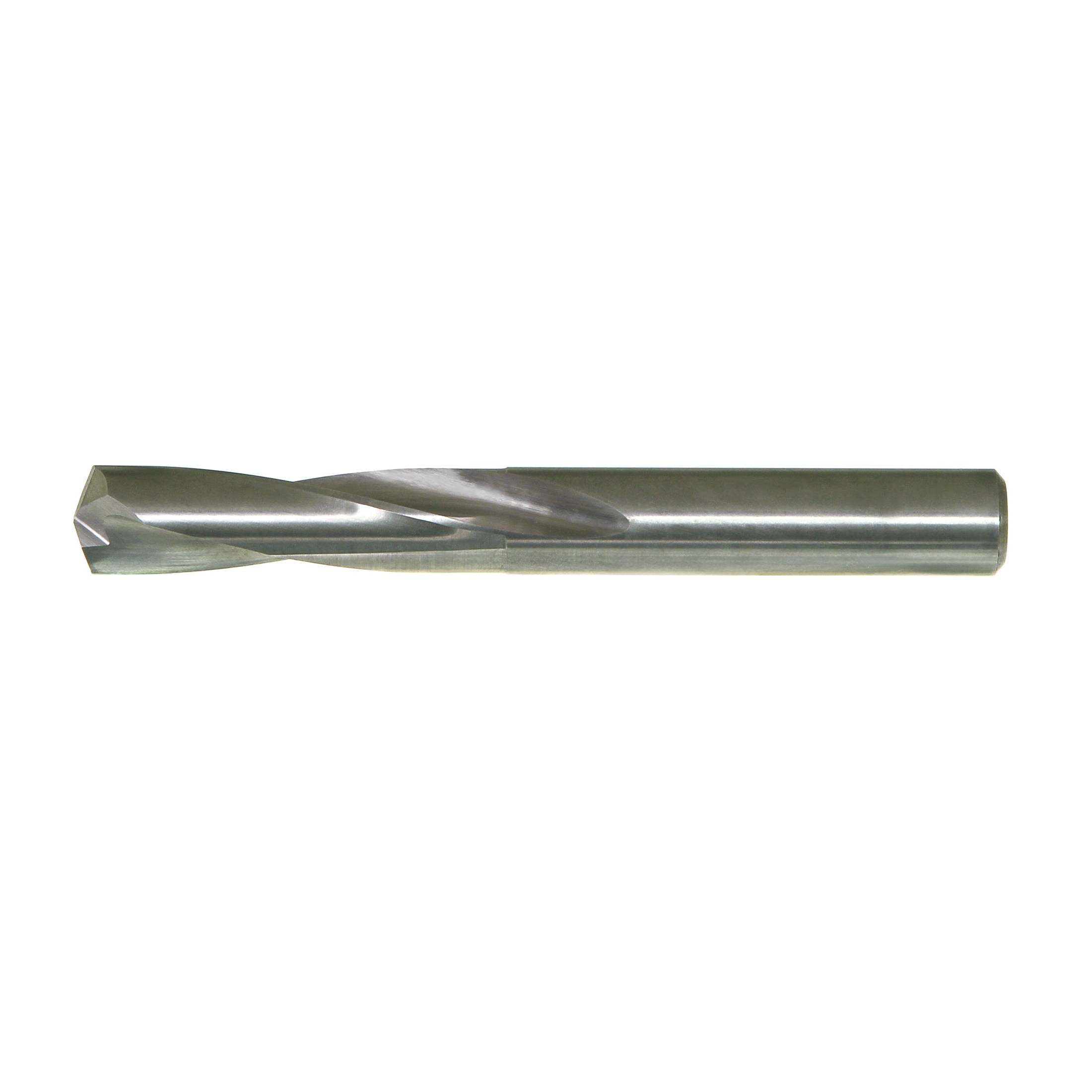

Drillco 720A108 Heavy Duty Stub Length Screw Machine Length Drill, 1/8 in Drill - Fraction, 0.125 in Drill - Decimal Inch, Solid Carbide, Bright
Slow helix 135° split point provides ease of penetration and increases edge strength. Heavy-duty web, short flute and overall length increase strength and rigidity.Solid Carbide ideally suited for drilling difficult materials (up to Rc 60).
-
BrandDrillco
-
UPC045997299488
-
Manufacturer Part Number720A108
-
CountryUSA|Canada
-
FinishBright
-
Point Angle135 deg
-
Point TypeSplit
-
MaterialSolid Carbide
-
Flute Length7/8 in
-
Flute TypeSpiral
-
TypeHeavy Duty Stub Length
-
Applicable MaterialsNickel Alloys, Chrome Alloys, Steel Weldments, Titanium Alloys, High Temperature Alloys and Stainless Steel Weldments
-
Series720
-
Cutting Depth7/8 in
-
Cutting DirectionRight Hand
-
Cutting Edge MaterialSolid Carbide
-
Shank TypeStraight
-
Drill Diameter Measurement SystemImperial
-
Drill Size - Decimal Inch0.125 in
-
Drill Size - Fraction1/8 in
-
Overall Length1-7/8 in
- Solid carbide construction for extreme rigidity and strength
- Carbide base material can drill up to 2x faster than HSS
- Self centering 135 deg split-point for reduced thrust requirements and minimized walking
- Bright finish for added lubricity
- Shorter screw machine length adds rigidity to the drill bit to reduce breakage
- Bright finish for added lubricity
- Shorter screw machine length adds rigidity to the drill bit to reduce breakage
-
UNSPSC23241605
-
Package Description1/PK
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including Cobalt, which is [are] known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
-
SDS
-
Catalog
