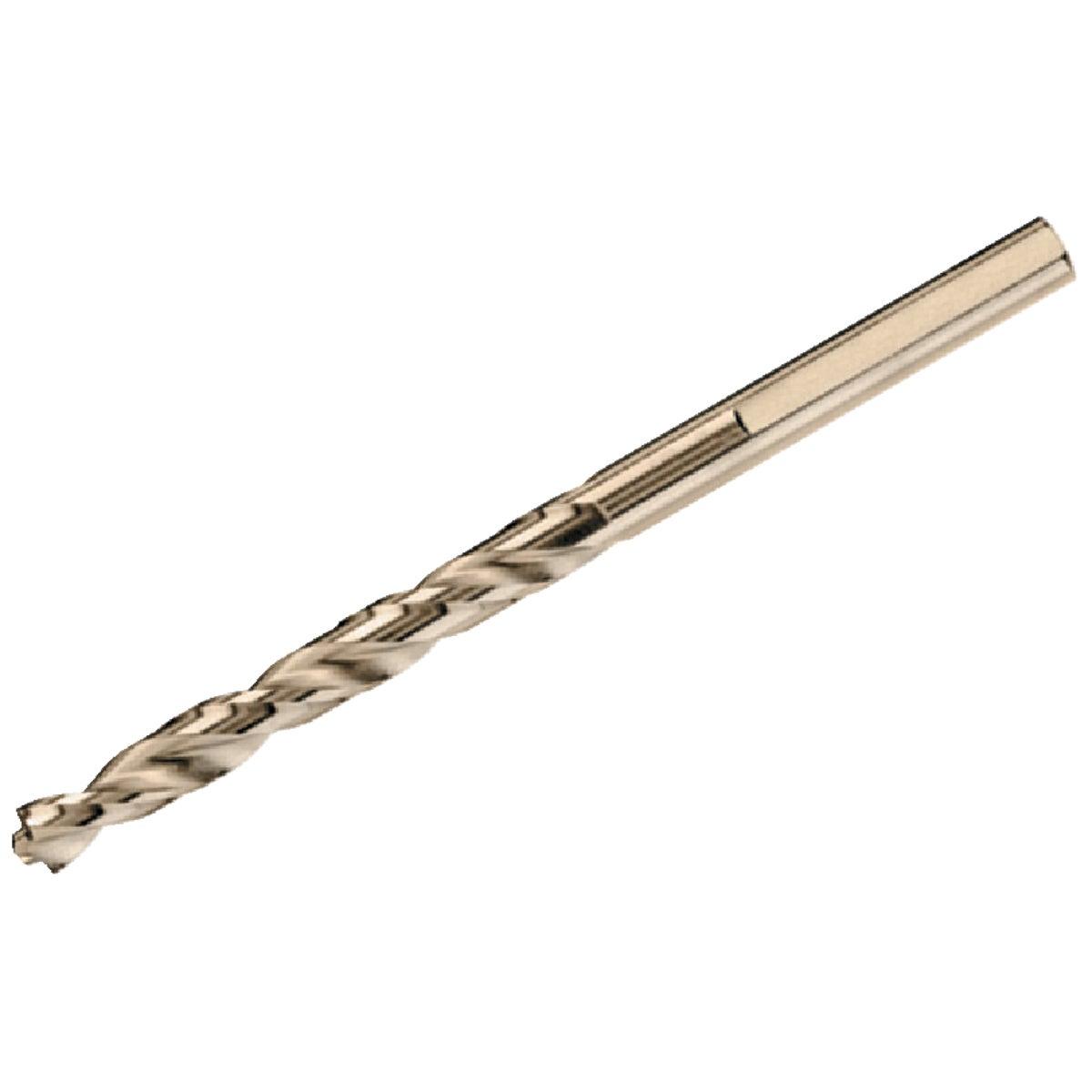

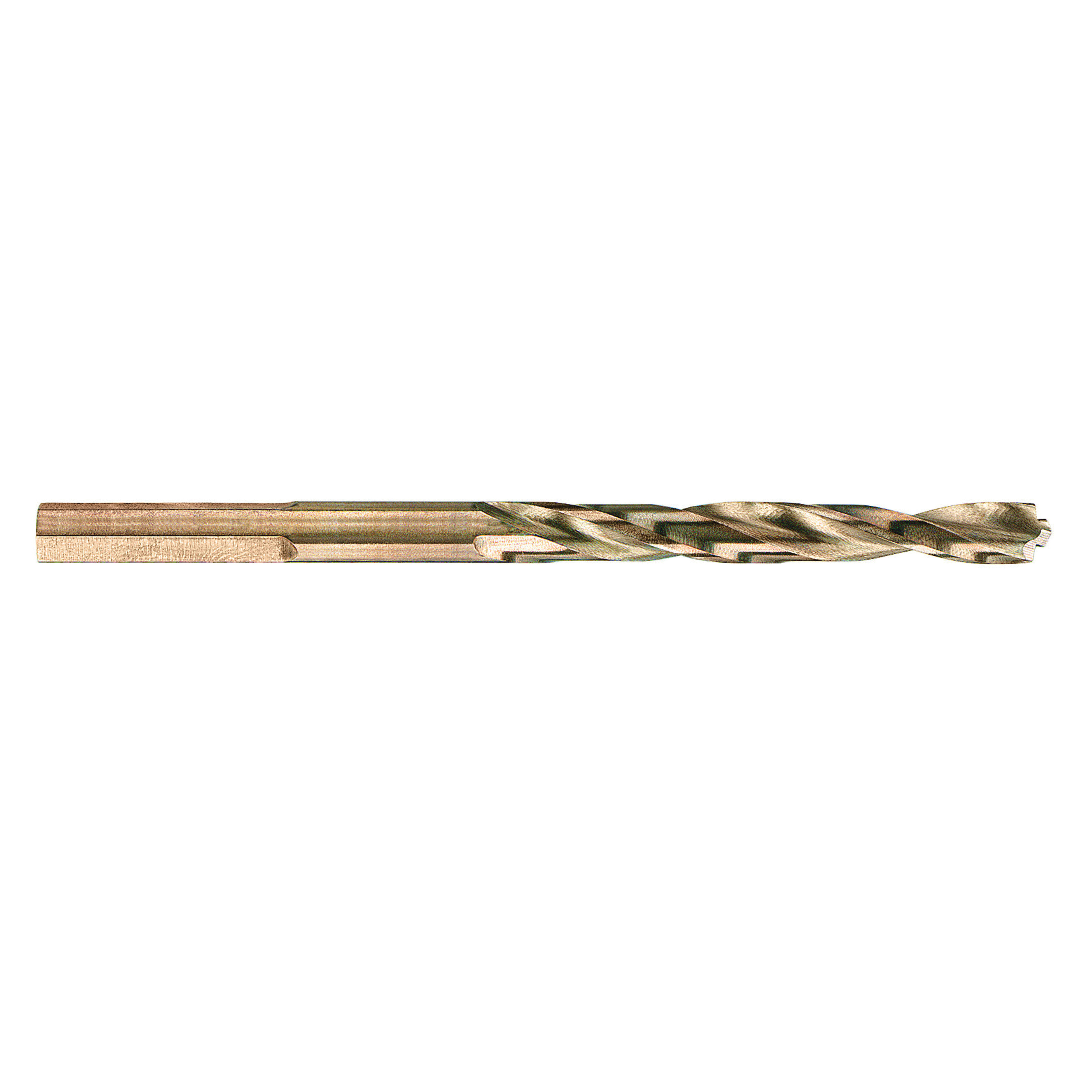

DeWALT® DW1912 General Purpose Pilot Point Drill Bit, 3/16 in Drill - Fraction, 3/16 in Drill - Decimal Inch, 2-5/16 in L Flute, HSS
DeWALT® has the first industrial drill bit specially designed to maximize the performance of your drill. DeWALT® Pilot Point® drill bits are designed to solve the common problems professionals encounter when drilling with portable drills into metal and wood - walking, spinning and breaking. The patented Pilot Point® tip, (Sizes 1/8 in and over), prevents the bit from walking across the workpiece, while providing a clean, round hole. The no spin shank, (Sizes 3/16 in and over), overcomes the professionals #1 frustration with keyless chucks, bits spinning in the chucks. And, with the patented tapered web, breaking is a thing of the past. DeWALT® Pilot Point®, flat out better.
-
BrandDeWALT®
-
UPC028877302119
-
Manufacturer Part NumberDW1912
-
CountryUSA|Canada
-
FinishGold Ferrous Oxide
-
Point Angle135 deg
-
Point TypeSplit
-
MaterialHSS
-
Flute Length2-5/16 in
-
Flute TypeSpiral
-
TypeGeneral Purpose
-
Applicable MaterialsAluminum/Wood/Plastic
-
Cutting Depth2.31 in
-
Shank Size3/16 in
-
Cutting DirectionRight Hand
-
Cutting Edge MaterialHSS
-
Shank TypeStraight
-
Drill Size - Decimal Inch3/16 in
-
Drill Size - Fraction3/16 in
-
Overall Length3-1/2 in
- Pilot Point® tip starts on contact for clean, accurate holes and reduces lock-up on breakthrough
- No-spin shank eliminates the frustration of bit spinning in the chuck
- Tapered web provides greater durability to reduce breaking
- Size markings are located above the shank to prevent wearing away
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 0234743 |
| Grainger | 5TG12 |
-
UNSPSC23241634
-
Package DescriptionEACH
-
WarrantyLifetime
-
Warranty Information
-
Specification Sheet
