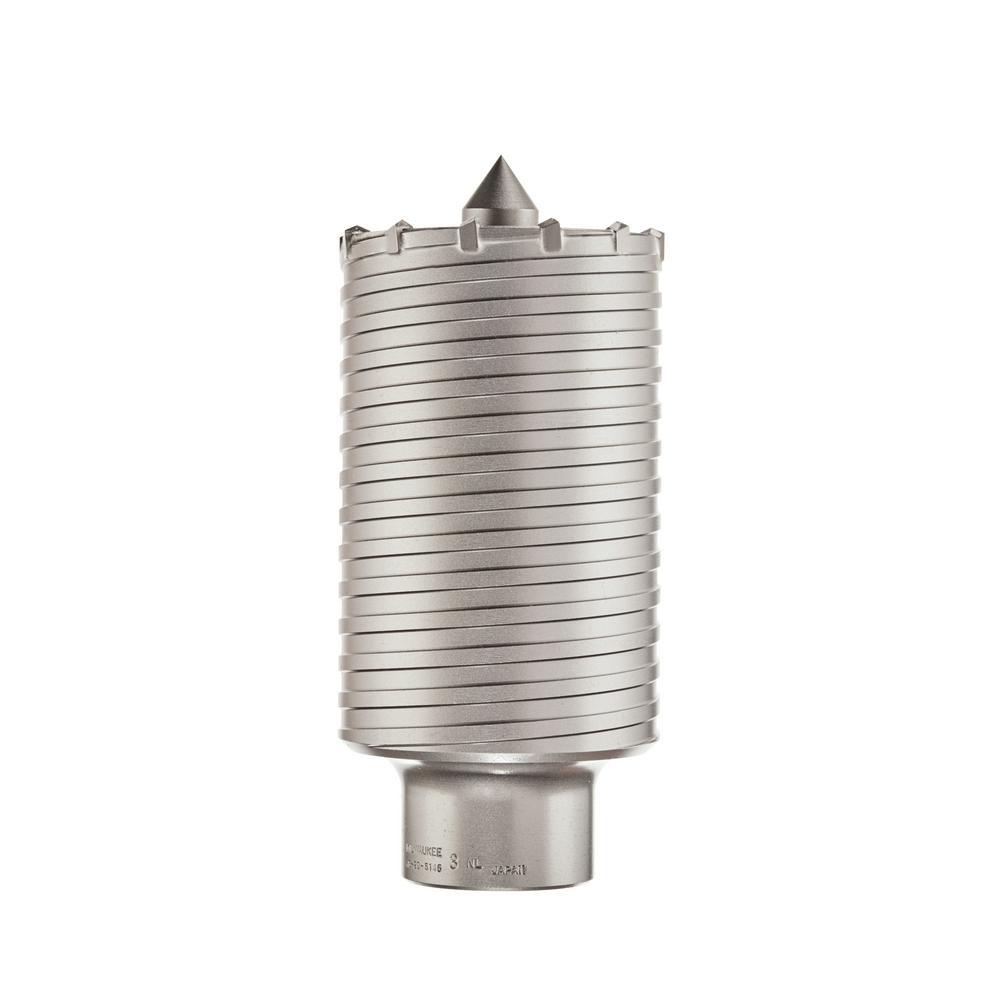

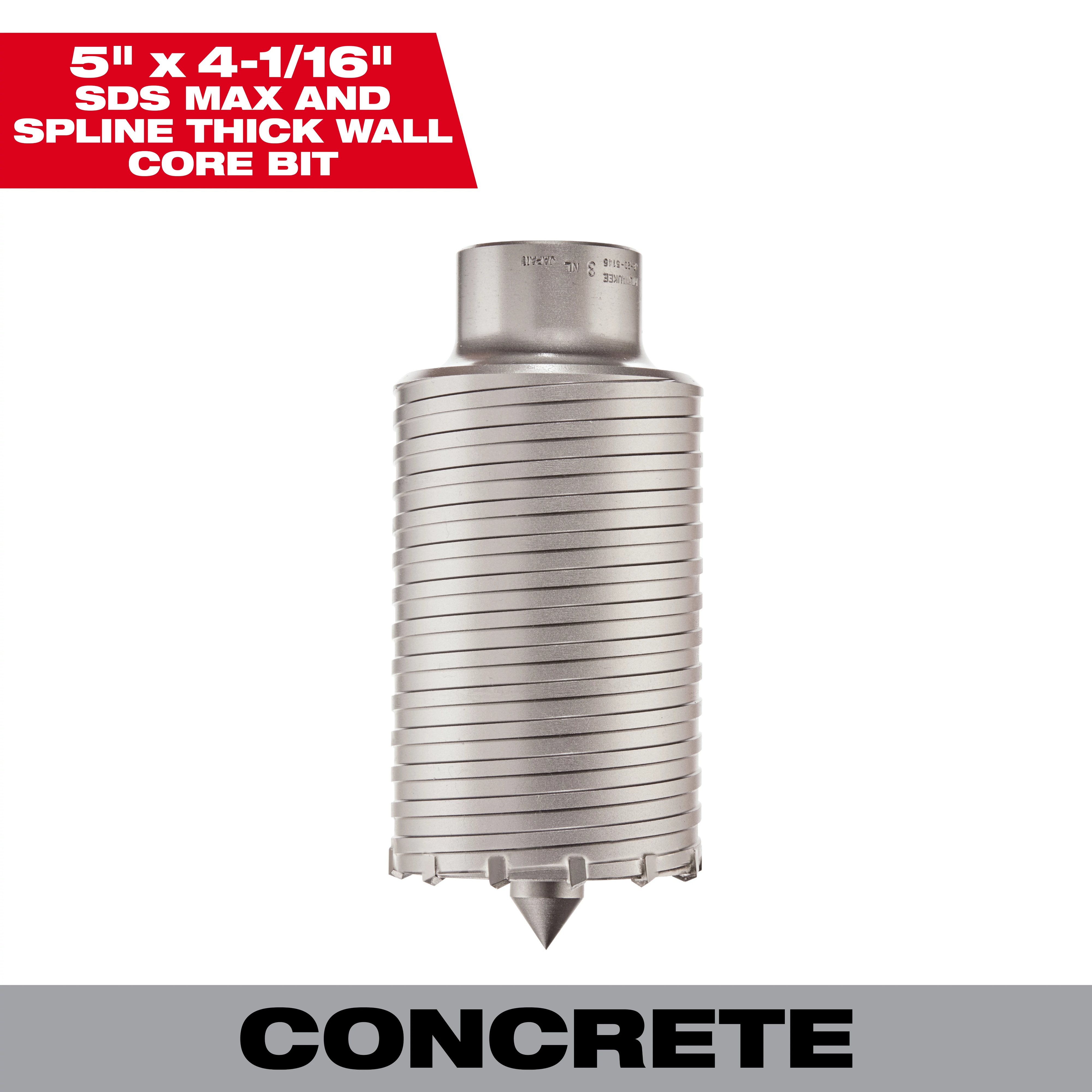

Milwaukee® 48-20-5160 Heavy Duty Thick Wall Core Bit, 5 in Drill - Fraction, 5 in Drill - Decimal Inch
Milwaukee's core bits are ideal for large hole drilling where depth is relatively shallow. The core bit cuts a Kerf only. The usable depth of thick wall core bits is 4-3/8 in. The inside core must be removed by the operator before deeper drilling can be accomplished. The thick wall construction is ideal for larger hammers and more seasoned/cured concrete. A 7-1/2 in. extension is available to allow for the deeper holes to be drilled. The appropriate (Dependant on the diameter) Spline drive shank must be used to drive the core bit. Use 48-20-5199 center pin and 48-20-5175 guide plate for positioning and starting the hole. Thick wall core bits are available from 1 in. to 6 in. diameters. See thin wall core bits for less expensive drilling in new concrete and/or smaller hammers.
-
BrandMilwaukee®
-
UPC045242106202
-
Manufacturer Part Number48-20-5160
-
CountryUSA|Canada
-
TypeHeavy Duty
-
Applicable MaterialsBlock, Brick and Concrete
-
Cutting Depth4-3/8 in
-
Shank Size12/18 in L
-
Cutting Edge MaterialCarbide
-
Shank TypeSDS Max®/Spline
-
Drill Size - Decimal Inch5 in
-
Drill Size - Fraction5 in
- Usable Cuting Depth 4-1/16 in
- Use with thick wall core bit shank 48-03-3564 (12 in) or 48-03-3565 (18 in)
| Competitor Name | Competitor Part Number |
|---|---|
| MSC | 95605069 |
| Grainger | 22UR17 |
-
Alternative Part Number8576416
-
UNSPSC20121607
-
IDEA Index ID8576416
-
Package DescriptionEACH
-
WarrantyNo Warranty
-
Owners/User Manual
