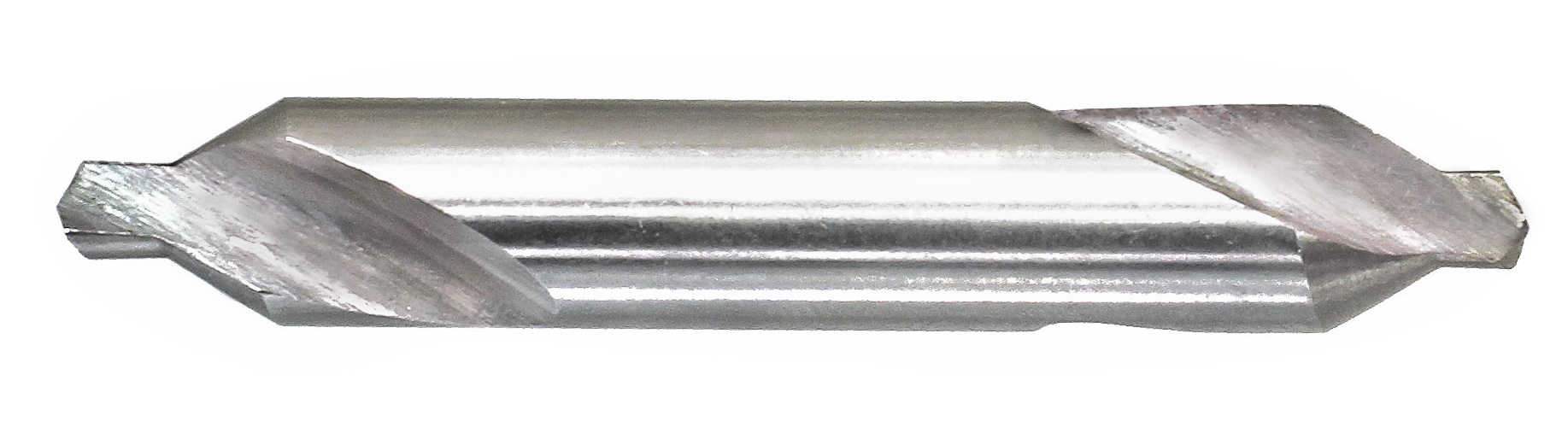

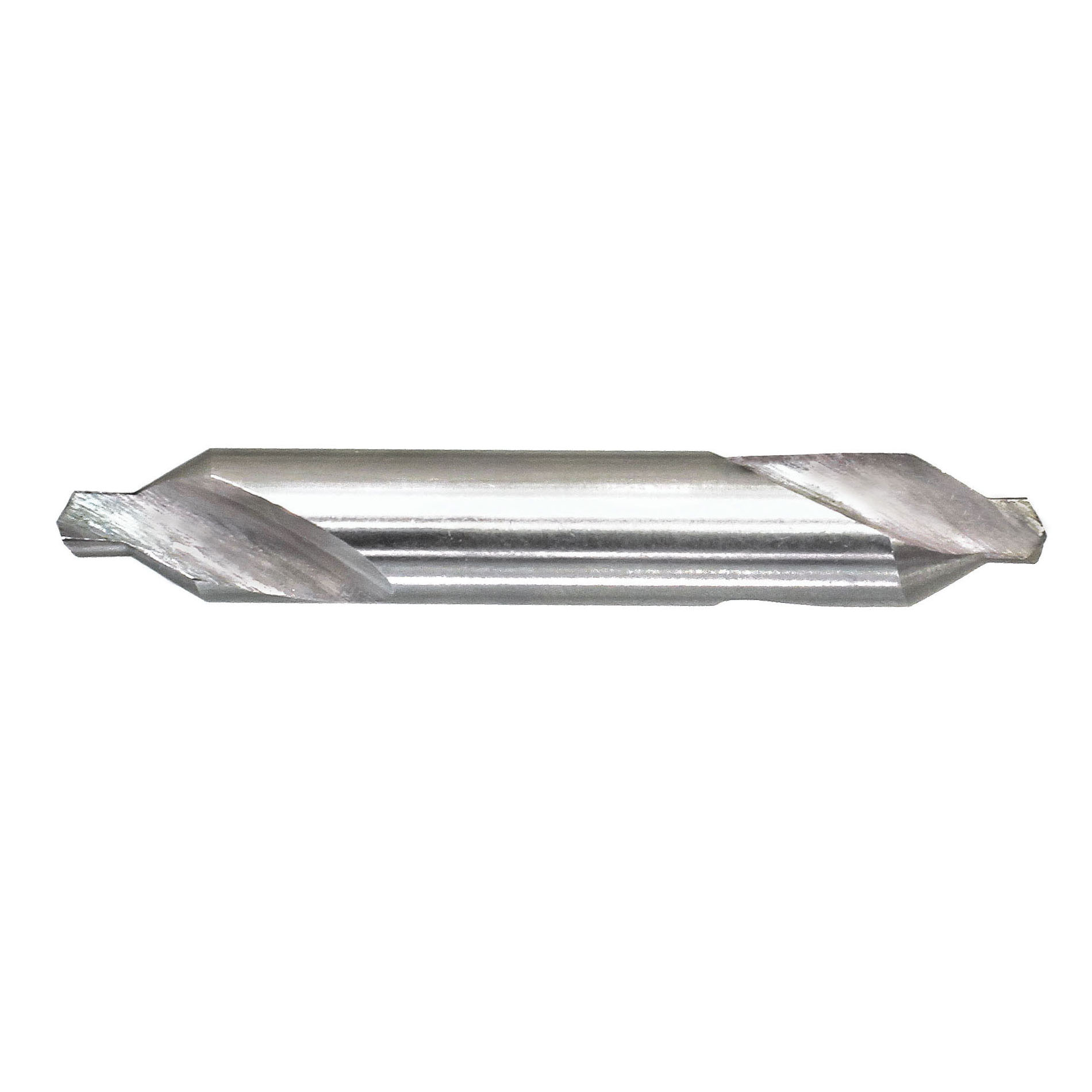

Drillco 350E006 3500E Imperial Plain Combined Drill and Countersink, 7/32 in Drill - Fraction, 0.2188 in Drill - Decimal Inch, 60 deg Included Angle, 60 deg Point Angle, HSS, Uncoated
When metal parts are machined on centers, as in turning or cylindrical grinding, it is always necessary to drill and countersink the center holes to serve as seats or bearings in the machine centers.
-
BrandDrillco
-
UPC045996999235
-
Manufacturer Part Number350E006
-
CountryUSA|Canada
-
FinishUncoated
-
Point Angle60 deg
-
Point Diameter7/32 in
-
MaterialHSS
-
TypeImperial Plain
-
Series3500E
-
Shank Size1/2 in
-
Cutting DirectionRight Hand
-
Cutting Edge MaterialHSS
-
Included Angle60 deg
-
Drill Size - Decimal Inch0.2188 in
-
Drill Size - Fraction7/32 in
-
Body Diameter1/2 in
-
Overall Length3 in
- Plain type with single 60 chamfer
- Bright finish for added lubricity
- Double ended for twice the life
- Double ended for twice the life
-
UNSPSC20121600
-
Package Description1/PK
-
