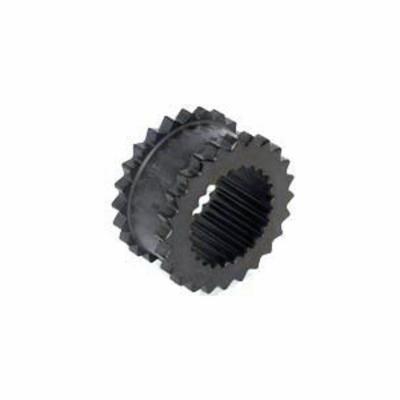

Dodge® 004208 D-Flex Type JE Coupling Sleeve, 03 Coupling, 1 in L, 1-7/8 in OD, 9200 rpm Max, EPDM Rubber
Dodge® 004208 D-Flex Type JE Coupling Sleeve, 03 Coupling, 1 in L, 1-7/8 in OD, 9200 rpm Max, EPDM Rubber
-
BrandDodge®
-
UPC782475871414
-
Manufacturer Part Number004208
-
CountryUSA
-
Temperature Rating-30 to 275 deg F
-
MaterialEPDM Rubber
-
Maximum Speed9200 rpm
-
Torque Rating60 in-lb
-
TypeType JE
-
Coupling Size03
-
SeriesD-Flex
-
Outside Diameter1-7/8 in
-
Length1 in
-
Suitable For Use WithD-Flex Coupling
- Rounded EPDM and neoprene element edges for full tooth engagement, even load distribution, reduced stress build up, and longer life
- Outside diameter concentric to bore for ease in alignment
- Interchangeable components makes installation quick and easy
- No lubrication assures trouble-free operation
-
UNSPSC31163005
-
Standards/ApprovalsATEX Certified
-
Specification Sheet
-
Instruction/Installation Manual
-
Catalog
