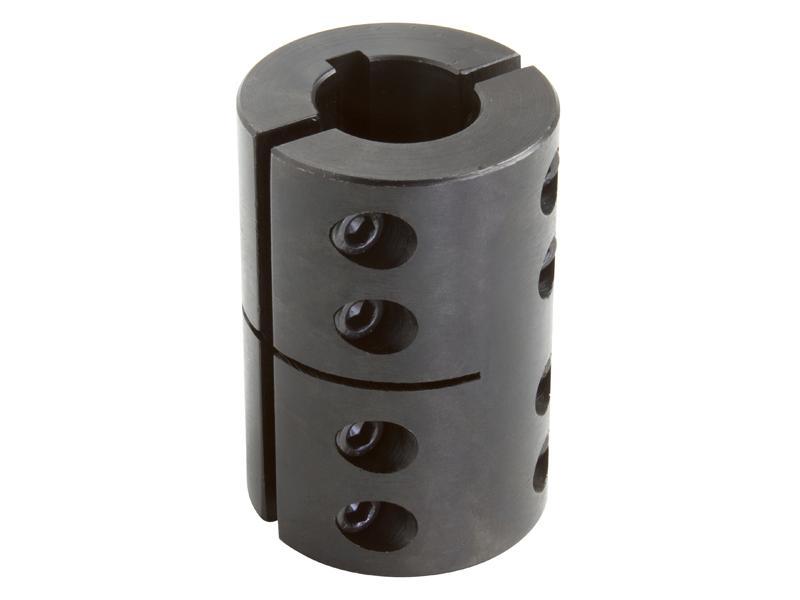

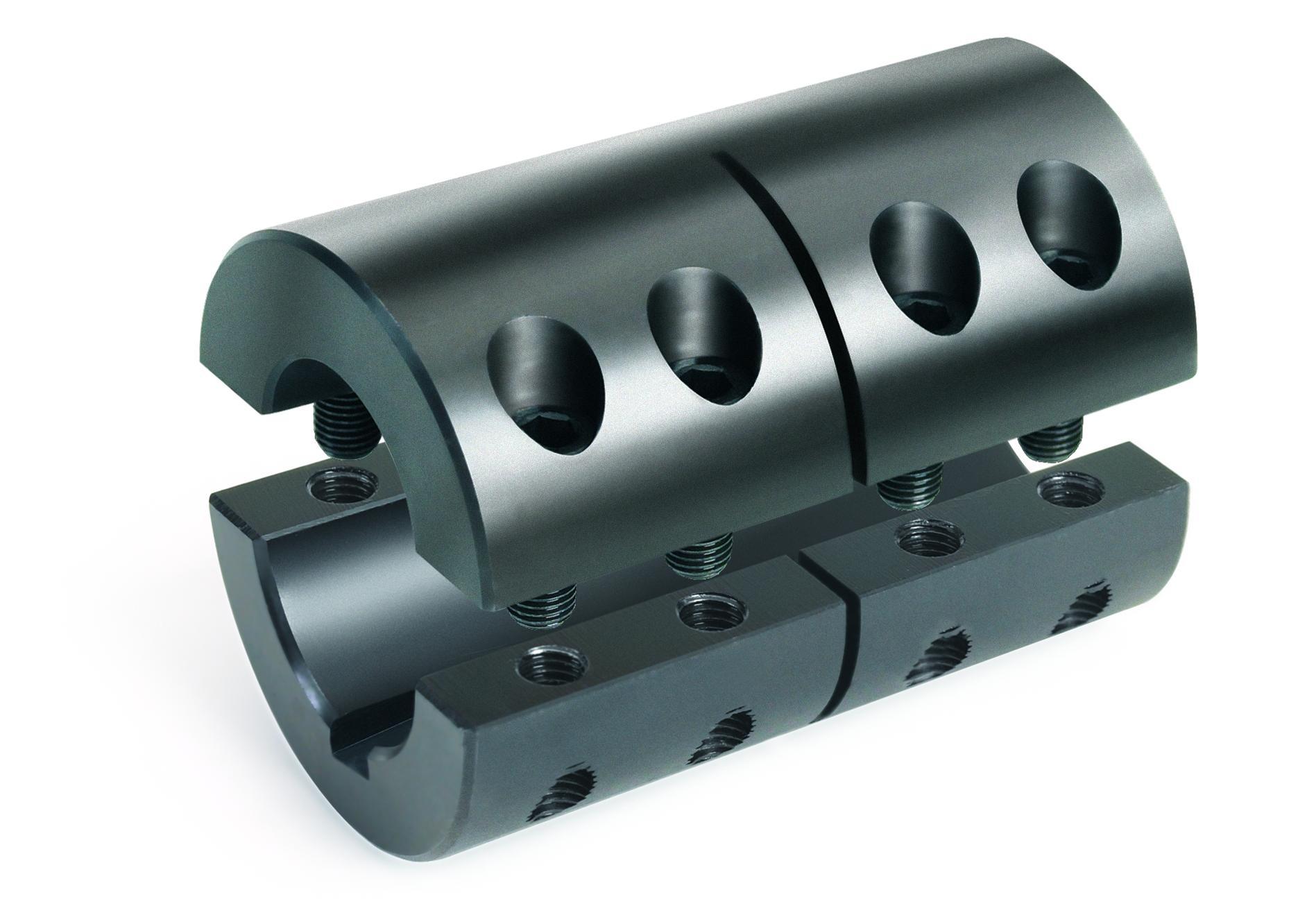

2CC-112-100-KW 2-Piece Large Clamping Coupling With 1/4 x 1/8 in Keyway and Recessed Screw, 1 in Dia Bore, 2-1/8 in OD, 3-1/4 in OAL, 175 in-lb Torque
Black Oxide Plated Steel Two-Piece Clamping Coupling with Keyway - Recessed Screw Heads. Recessed Screw Head provides an outside surface free of major projections for safety. Easily installed where major disassembly would otherwise be required. Does not mar the shaft. View Catalog Page
-
BrandClimax
-
UPC044861965535
-
Manufacturer Part Number2CC-112-100-KW
-
CountryUSA
-
FinishBlack Oxide
-
MaterialSteel
-
Torque Rating175 in-lb
-
Type2-Piece Large
-
Series2CC
-
Outside Diameter2-1/8 in
-
Bore Diameter1 in
-
Overall Length3-1/4 in
- Install/replace without major disassembly of other shaft components
- Does not mar the shaft
- For use on keyed shafts
- Recessed screw design provides safety with an outside surface free of major projections
- Does not mar the shaft
- For use on keyed shafts
-
UNSPSC31163009
-
Package DescriptionEACH
-
Standards/ApprovalsASTM A108|ASTM A574 Cap Screw
-
Catalog
-
Specification Sheet
-
Line Drawing
-
Technical Bulletin
