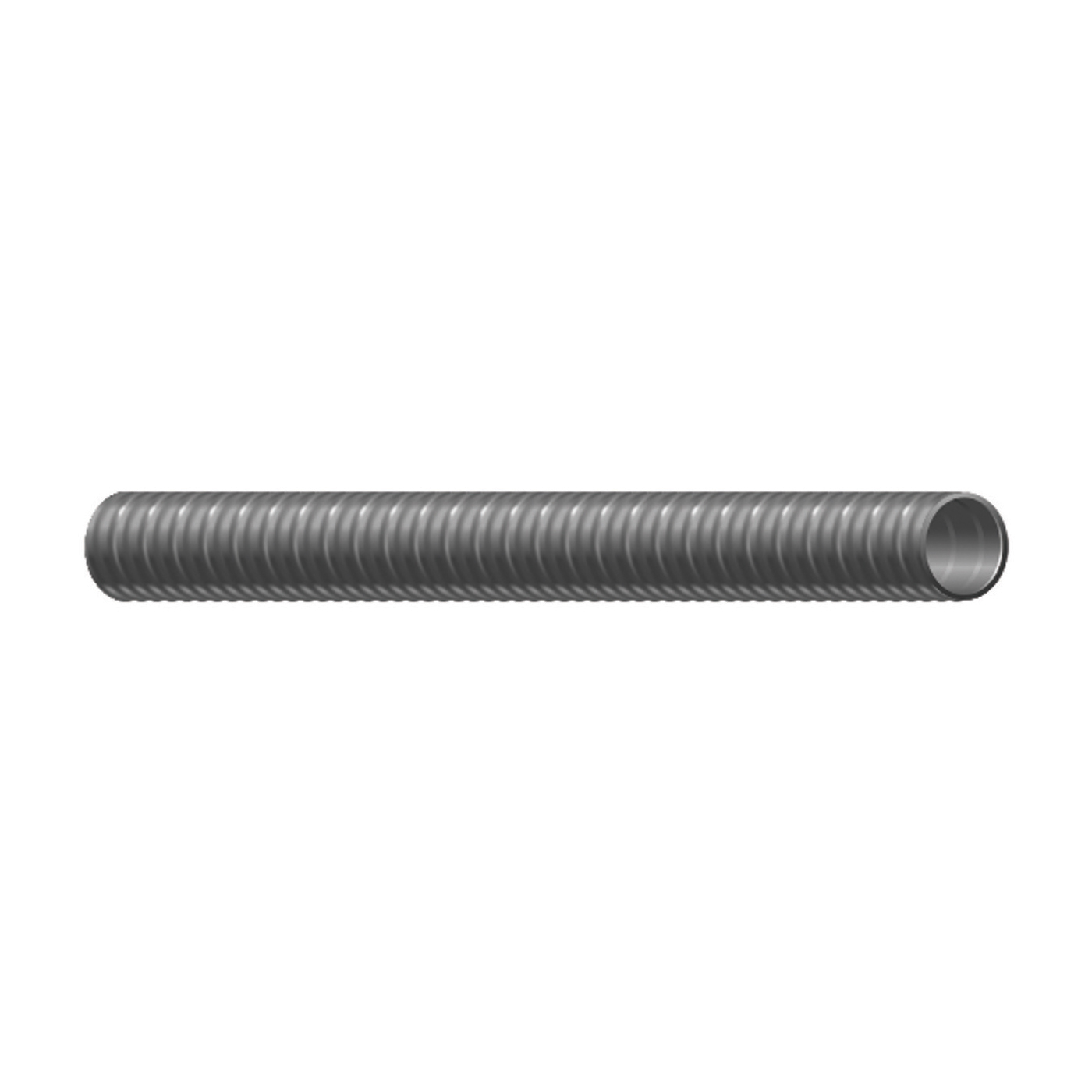

KAF-TECH 1/2" NON-METAL L/TITE CONDUIT KAF 1/2-NM
Ultratite® type NM is manufactured with rigid polyvinyl chloride reinforcement imbedded within a flexible polyvinyl chloride wall. The construction provides excellent impact and crush strength while remaining highly flexible. The conduit resists oils, mild acids and exposure to sunlight.
-
BrandSouthwire®
-
UPC032886042737
-
Manufacturer Part Number55094201
-
CountryUSA
-
Temperature Rating-22 to 176 deg F/140 deg F Oil
-
MaterialRigid PVC
-
Trade Size1/2 in
-
ColorGray
-
TypeType NM Liquidtight
-
Inside Diameter0.622 to 0.642 in
-
Bend Radius4 in
-
Outside Diameter0.82 to 0.84 in
-
Length100 ft
- A protective combination of thermoplastic materials formed into a conduit/raceway which seals out water, liquids, abrasives, alcohol, coolants, corrosive fumes and gases, dirt, grease, mineral acids, non-concentrated fixed alkaline, petroleum oils, salt air, spray and weather
- Smooth interior for easy wire pulling
- UV sunlight-resistant jacket
- Accepts standard liquidtight fittings for use with LFNC-B
-
UNSPSC39131706
-
Standards/ApprovalsANSI/NFPA-70|CSA Certified|NEC Type LFNC-B/Article 356|REACH/RoHS 2 Compliant/UL 1660
-
Warranty1 year
-
Specification Sheet
