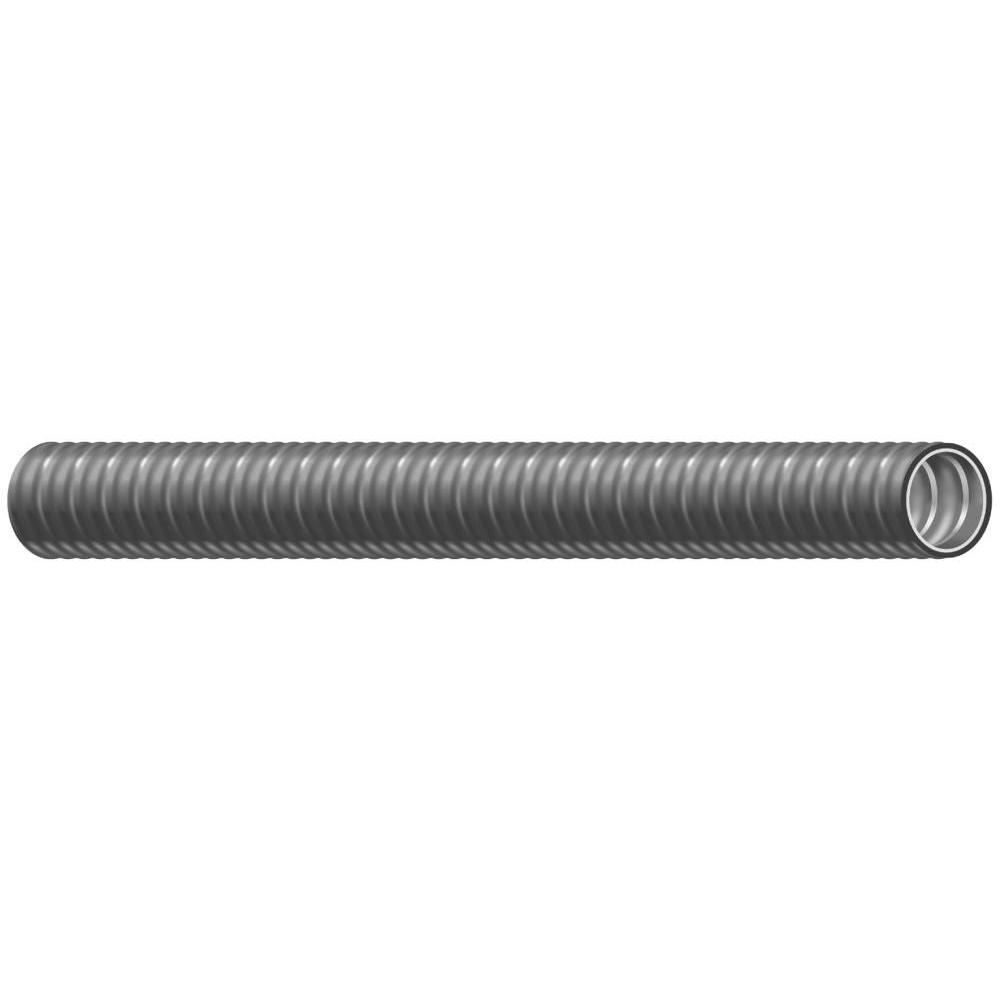

Southwire® Titan2® 55106802 Type LTM-EF Liquid Tight Flexible Metal Conduit, 1 in Trade, 1.041 to 1.066 in ID x 1.29 to 1.315 in OD, 100 ft L, Aluminum/Steel
Titan® type EF is manufactured with a spiral wound interlocked strip of corrosion resistant, galvanized steel. Titan® type EF is manufactured with a spiral wound interlocked strip of steel. Titan® type AEF is manufactured with a spiral wound interlocked strip of aluminum. A flame retardant, flexible PVC jacket is extruded over the metal cores. The gray jacket resists oils, mild acids and exposure to sunlight. Black available but subject to economic order quantity.
-
BrandSouthwire®
-
UPC032886043048
-
Manufacturer Part Number55106802
-
CountryUSA
-
Temperature Rating14 to 140 deg F
-
FinishGalvanized
-
MaterialAluminum/Steel
-
Trade Size1 in
-
ColorGray
-
TypeType LTM-EF
-
Inside Diameter1.041 to 1.066 in
-
Bend Radius6 in
-
Outside Diameter1.29 to 1.315 in
-
Length100 ft
- Delivers wiring protection where listed products are not required
- For exposed or concealed installations requiring movement crossover connections or tight bends
- Requires standard liquid-tight fittings
- Delivers wiring protection where listed products are not required
- Seals out abrasives, alcohol, coolants, corrosive fumes and gases, dirt, grease, mineral acids, non-concentrated fixed alkalines, petroleum oils, salt air spray, water and weather
- For exposed or concealed installations requiring movement, crossover connections, or tight bends
- Oil resistant, sunlight resistant
- Titan® type EF is manufactured with a spiral wound interlocked strip of corrosion resistant, galvanized steel
- A flame retardant, flexible PVC jacket is extruded over the metal core
- The gray jacket resists oils, mild acids and exposure to sunlight
-
Alternative Part Number8872411
-
UNSPSC39131706
-
IDEA Index ID8872411
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|NEC Article 350|PROP65: This product contains material that,the State of California has determined|may cause reproductive harm. www.p65warnings.ca.gov/product
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
