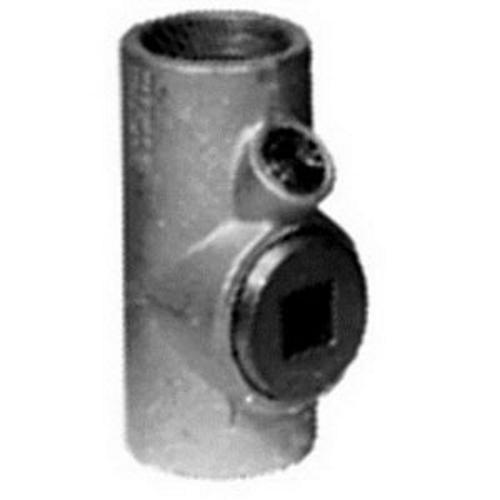

Appleton® UNILETS® EYSF50 Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting, 1/2 in, For Use With IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple Coated
These Appleton® sealing fittings minimize the passage of gases and vapors and prevent the passage of flames from one portion of a conduit system to another. They prevent pressure piling within conduit system and contain any explosion that occurs. The EYS series is used for sealing vertical conduit, and provides a large opening for damming and filling.
-
BrandAppleton®
-
UPC781381330459
-
Manufacturer Part NumberEYSF50
-
CountryUSA|Canada
-
FinishTriple Coated
-
MaterialMalleable Iron
-
TypeDust-Ignitionproof Explosionproof Raintight
-
SeriesEYS
-
Dimensions3.25 in L x 1.13 in W
-
Size1/2 in
-
Suitable For Use WithIMC/Threaded Rigid Metallic Conduit
- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
- Large opening for damming and filling
- Restrict any explosion to the sealed off enclosure
- Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
- Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
- Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
- Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure
- Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations
- Tapered FNPT connection
- 25% fill vertical conduit sealing fittings
- Chromate/epoxy powder coated/zinc electroplated finish
-
Alternative Part Number8334280
-
UNSPSC39121311
-
IDEA Index ID8334280
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|UL 1203 File No. E10444|CSA 065181 C22.2 No. 30
-
WarrantyLimited
-
Warranty Information
-
Specification Sheet
