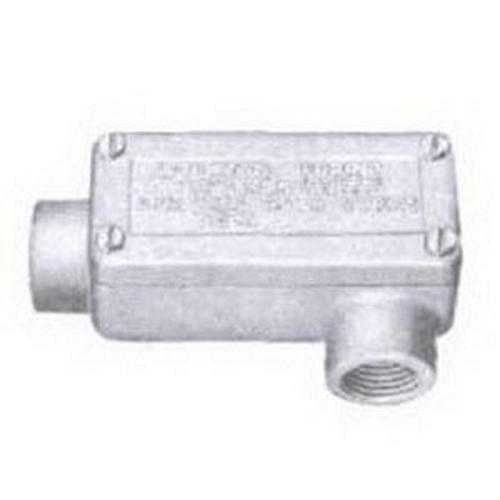

Appleton® UNILETS® ERLL50 LL-Style Dust-Ignitionproof Explosionproof Conduit Outlet Box With Cover, 1/2 in, Triple Coated
Appleton® ER explosionproof and dust-ignitionproof conduit outlet boxes have a compact, rectangular design that is ideal for use in classified locations where space is limited. These corrosion-resistant outlet boxes provide access for maintece, and allow the connection of different lengths of conduit and for changing of direction of conduit.
-
BrandAppleton®
-
UPC781381302609
-
Manufacturer Part NumberERLL50
-
CountryUSA|Canada
-
FinishTriple Coated
-
MaterialMalleable Iron
-
TypeLL-Style Dust-Ignitionproof Explosionproof
-
SeriesER Series
-
Dimensions5 in L x 1.5 in W x 1.81 in H
-
Size1/2 in
-
Suitable For Use WithThreaded Rigid Metallic Conduit
- Meet a wide range of classified area requirements
- Corrosion resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
- Malleable iron bodies have high tensile strength and ductility
- Provides great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- General purpose wiring
- Compact, rectangular conduit outlet boxes are ideal in classified locations where space is limited
- Six different hub arrangements
- Ground surface contact between body and cover assures a flame-tight joint
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Tapered female threaded connection
- Chromate/epoxy powder coated/zinc electroplated finish
-
Alternative Part Number8331655
-
UNSPSC39121308
-
IDEA Index ID8331655
-
Package DescriptionEACH
-
Standards/ApprovalsUL File No. E30513/R1044/009795, Class I, Division 1 and 2, Group C and D Class II, Division 1 and 2, Groups E, F, G Class III
-
WarrantyLimited
-
Warranty Information
-
Specification Sheet
