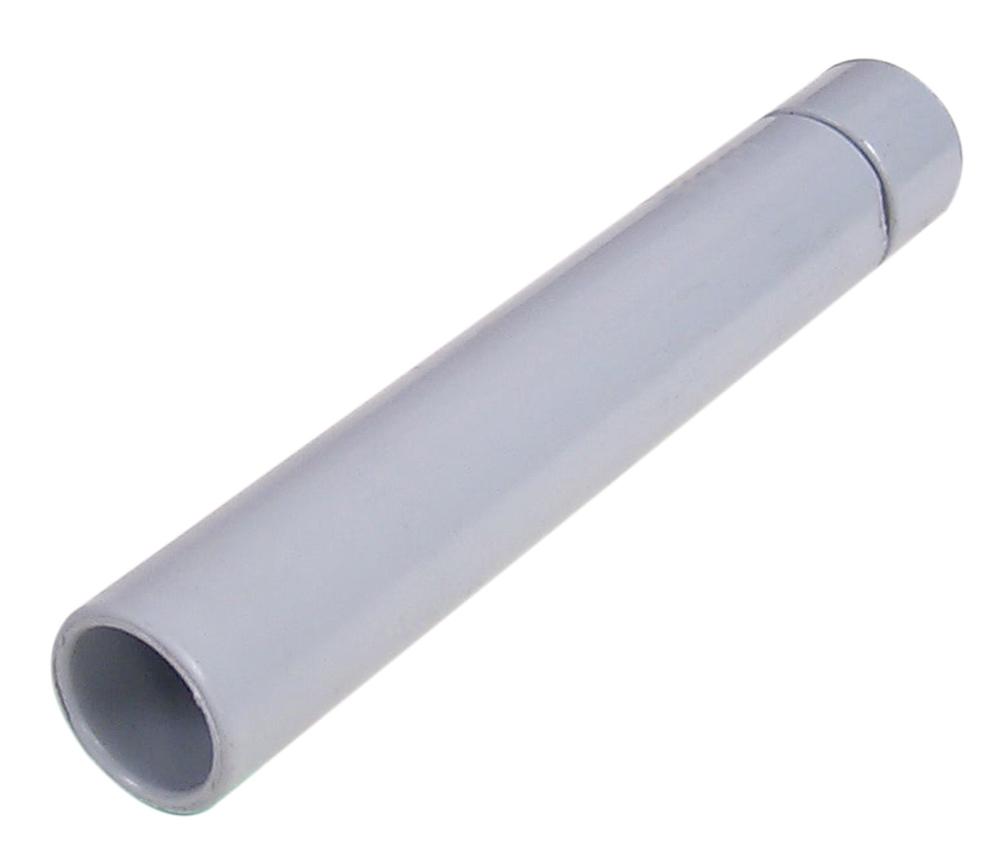

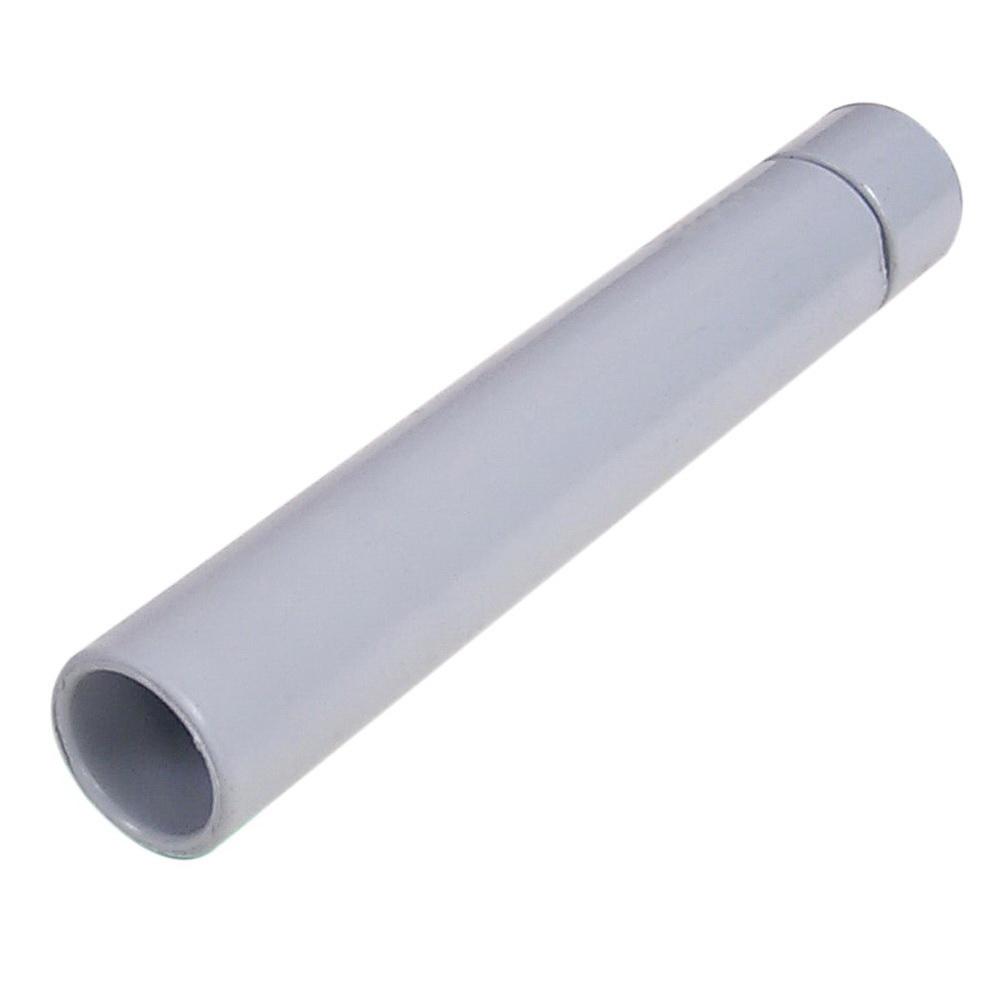

Southwire - Topaz 1074 2-Piece Compression Conduit Expansion Coupling, 1-1/4 in, For Use With SCH 40/80 PVC Conduit, Type T Conduit Body, PVC
Topaz's Schedule 40 PVC Two Piece Expansion Couplings compensate for temperature-related length changes in exposed applications. Two piece, rugged and noncorrosive construction with lubricated seals provides easier movement; manufactured with a male terminator adapter end design. For use with both Schedule 40 and Schedule 80 PVC conduit; cULus approved in sizes from 1/2” to 4.”
-
BrandSouthwire - Topaz
-
UPC751338231559
-
Manufacturer Part Number1074
-
CountryUSA
-
MaterialPVC
-
ColorGray
-
Type2-Piece Compression
-
SeriesE945
-
Dimensions1-11/16 in OD x 9 in L
-
Size1-1/4 in
-
Suitable For Use WithSCH 40/80 PVC Conduit, Type T Conduit Body
- Seal is watertight
- Exclusive molded in mid-point indicator on the piston
- 2-piece molded design with lubricated seals for easier movement for the life of the product
- Ridges on the fitting for easier installation, 2 in through 6 in only
- Male terminal adapter end design
- Two O-rings to prevent leakage
- Can be installed vertically or horizontally
- 1-1/4 in female socket end
- 5.71 to 9.71 in opening
- 7.7 in L mid-point
- 0.1 in THK wall
-
Alternative Part Number8751451|18198634
-
UNSPSC39131707
-
IDEA Index ID18198634
-
Package DescriptionEACH
-
Standards/ApprovalsUL 514B File No. E170258|CSA Certified|Federal Specification No. A-A-50552|NEMA/ANSI FB-1|Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D|cULus Listed
-
Warranty1 Year
-
