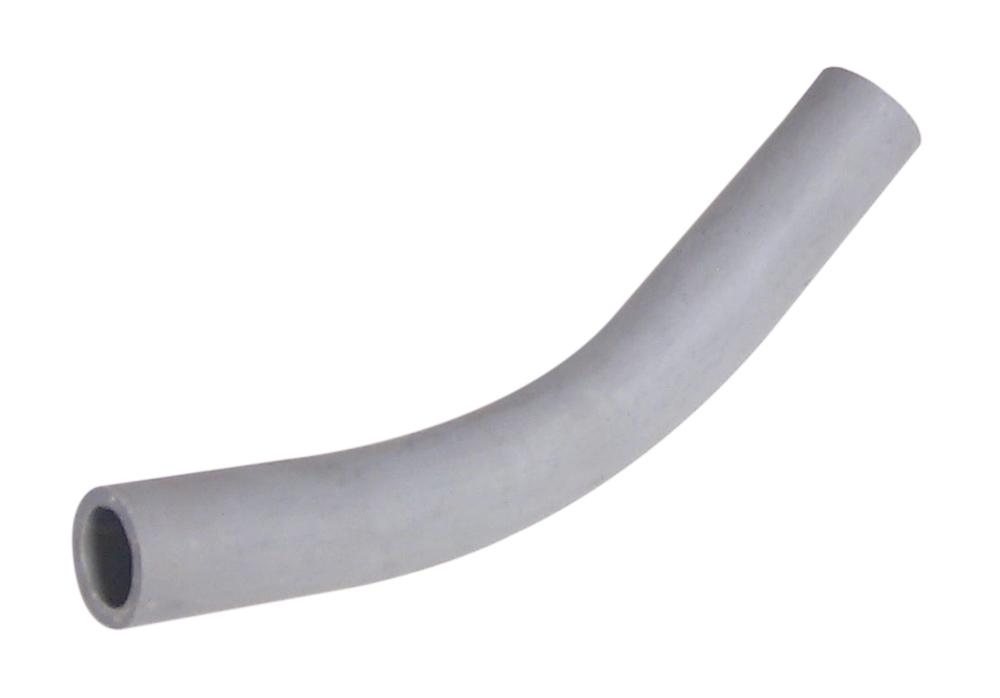

Southwire - Topaz 1058 Compression Plain End Elbow, 3 in Trade, 45 deg, PVC
Enable fast, easy and secure 45°directional changes in conduit runs and allow for design configuration changes with Topaz's Schedule 40 PVC 45° Plain End Elbows. Manufactured from rugged, nonconductive PVC, the elbow is finished with two plain, spigot ends. Suitable for above or below ground use and in concrete casement; cULus approved in sizes from 1/2” to 6.”
-
BrandSouthwire - Topaz
-
UPC751338230583
-
Manufacturer Part Number1058
-
CountryUSA
-
MaterialPVC
-
Radius13 in
-
Trade Size3 in
-
TypeCompression
-
Angle45 deg
- Both ends of the bend are spigot (plain) end
-
Alternative Part Number8750886
-
UNSPSC39131717
-
IDEA Index ID8750886
-
Package DescriptionEACH
-
Standards/ApprovalsUL 514B|UL E170258|cULus Listed|Federal Specification A-A-50563|NEMA/ANSI FB-1|Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
-
Warranty1 Year
-
