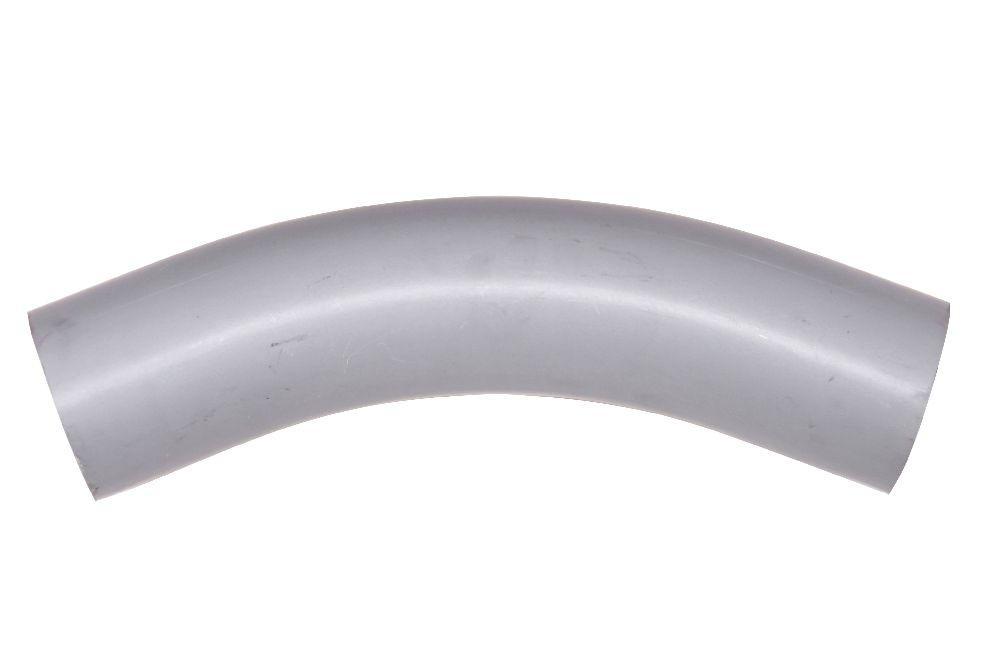

Kraloy® 078560 Spigot Standard Radius 99 Conduit Elbow, 3-1/2 in Trade, 45 deg, PVC
Kraloy 45° Standard Radius Elbows are manufactured from high impact, nonconducting and noncorroding rigid PVC. Elbows are suitable for exposed, concrete encased and direct burial applications, are lightweight and offer excellent chemical resistance with high tensile and impact strength.
-
BrandKraloy®
-
UPC622454785601
-
Manufacturer Part Number078560
-
CountryUSA
-
MaterialPVC
-
Radius15 in
-
Trade Size3-1/2 in
-
TypeSpigot Standard Radius
-
Angle45 deg
-
Dimensions4 in Dia
-
Suitable For Use WithRigid PVC Conduit
- Made from impact resistant Schedule 40 rigid nonmetallic PVC
- Approved for use in exposed, concrete encased and direct burial applications Available in plain and integral belled end for use with nonmetallic solvent weld fittings
- Lightweight yet offers high impact and tensile strength
- Chemical resistant to a wide range of acids, alkalis or salt solutions
- Corrosion resistant for lower maintenance cost and longer life
- PVC is nonconductive eliminating dangerous second point of contact
-
Alternative Part Number40STD3545|13139060
-
UNSPSC39131717
-
IDEA Index ID13139060
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|UL 514B|UL 651
-
WarrantyLimited
-
Warranty Information
-
Catalog
-
Specification Sheet
