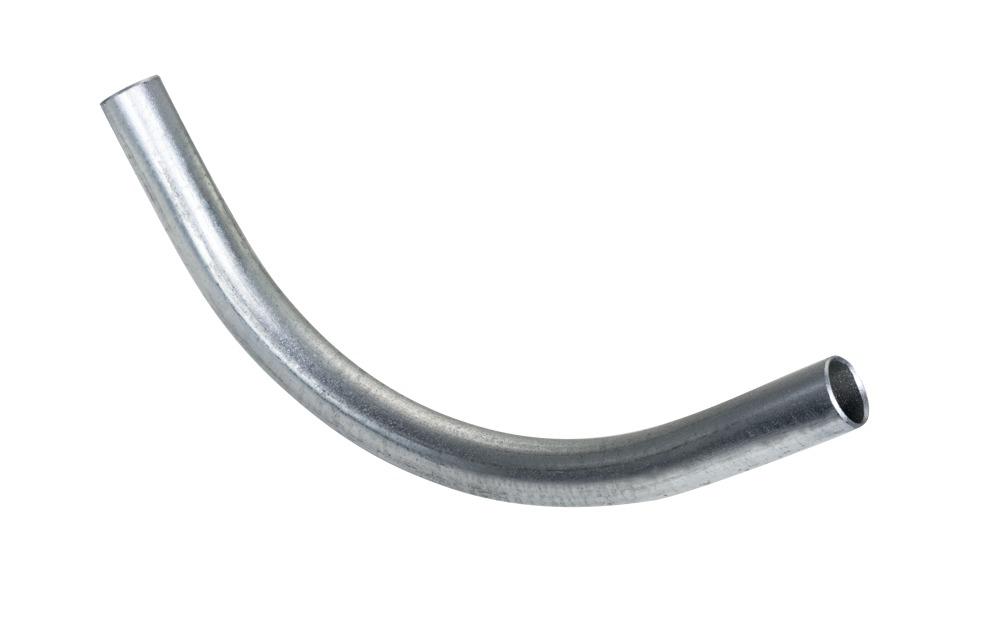

ELECTROLINE 1/2" 90-DEG EMT CONDUIT GALV/ELBOW ELE TTE-1/2
EMT 90 deg elbow is precision manufactured to deliver optimum safety and performance. Fabricated from galvanized steel for low conductivity and high corrosion resistance, all surfaces, both interior and exterior are free from defect to ensure a secure connection to EMT conduit and to preserve integrity and longevity.
-
BrandSouthwire - Topaz
-
UPC751338304208
-
Manufacturer Part Number81
-
CountryUSA
-
FinishGalvanized
-
MaterialSteel
-
Radius4 in
-
Trade Size1/2 in
-
Angle90 deg
-
Dimensions2-7/8 in L Leg
-
Suitable For Use WithEMT Conduit
- Low conductivity and high corrosion resistance
- Smooth defect free interior and exterior
-
Alternative Part Number8753356
-
UNSPSC39121464
-
IDEA Index ID8753356
-
Package DescriptionEACH
-
Standards/ApprovalsUL 514B|UL 797|cULus E197604 Listed|US Federal Spec Number A-A-50552|NEMA/ANSI FB-1|Military Specification:W-F-406D|W-F-406E|W-F-408D|W-S-610D|ANSI C80.3|Federal Spec WW-C-563
-
Warranty1 Year
-
