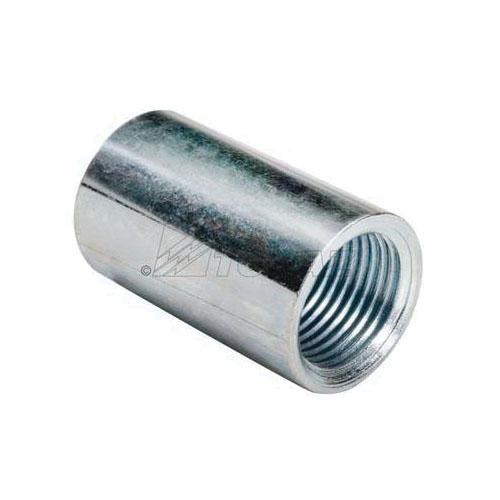

Southwire - Topaz 52 Tubular Rigid Coupling, 3/4 in, Steel, Galvanized
Topaz's Rigid Couplings feature a tubular threaded type assembly and ensure proper alignment and a secure connection when joining two ends of threaded Rigid conduit. Other applications include bonding threaded conduits to electrical junction boxes or enclosures when used in conjunction with chase nipples and connectors. Constructed of strong galvanized steel for low conductivity and high corrosion resistance. Available in 1/2” to 6” sizes with NPSM threads. UL listed; Meets Federal specification WW-C-563.
-
BrandSouthwire - Topaz
-
UPC751338101401
-
Manufacturer Part Number52
-
CountryUSA
-
FinishGalvanized
-
MaterialSteel
-
TypeTubular
-
Mounting TypeThreaded
-
Dimensions1.64 in L x 1.625 in H
-
Size3/4 in
- NPSM thread type
-
Alternative Part Number8738983
-
UNSPSC39131707
-
IDEA Index ID8738983
-
Standards/ApprovalsANSI C80.1-2015|cULus E223147|Fed. Spec. WW-C-563|UL 6A
-
Warranty1 year Limited
-
Specification Sheet
