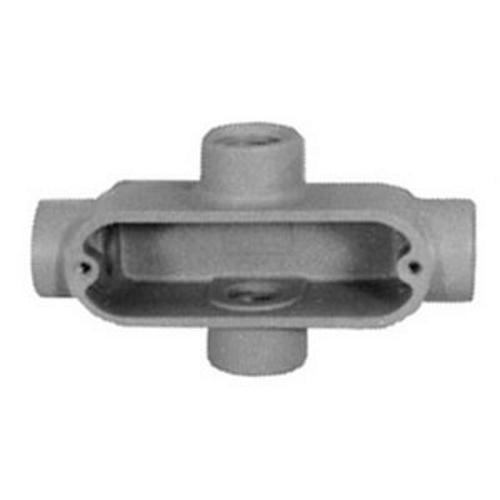

Appleton® UNILETS™ X75A Type X Conduit Outlet Body, 3/4 in Hub, Form 85, 7 cu-in, Sand Cast Aluminum, Epoxy Powder Coated
Appleton® Form 85™ UNILETS™ Conduit Outlet Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintece.
-
BrandAppleton®
-
UPC781381745758
-
Manufacturer Part NumberX75A
-
CountryCanada
-
Capacity7 cu-in
-
FinishEpoxy Powder Coated
-
MaterialSand Cast Aluminum
-
FormForm 85
-
TypeType X
-
Connection TypeTapered FNPT
-
Mounting TypeSurface
-
Hub Size3/4 in
-
Number of Hubs4
-
Dimensions5.63 in L x 3 in W x 1.63 in H
-
EnclosureNEMA FB-1
- Roomy interiors more wiring space
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 85™ copper free aluminum UNILETS™ are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance
- Lightweight aluminum facilitates shipping, handling and installing
- Sizes with flat back design ideal where fitting is mounted flat against surface
- Internal volume and maximum wire capacity clearly marked on castings
- Threaded style is raintight when used with casketed covers
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 10W191 |
-
Alternative Part Number8229162
-
UNSPSC39131708
-
IDEA Index ID8229162
-
Package DescriptionEACH
-
Standards/ApprovalsUL 514A/514B/E2527|CSA C22.2 No. 18.3/065183|RoHS Compliant
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
