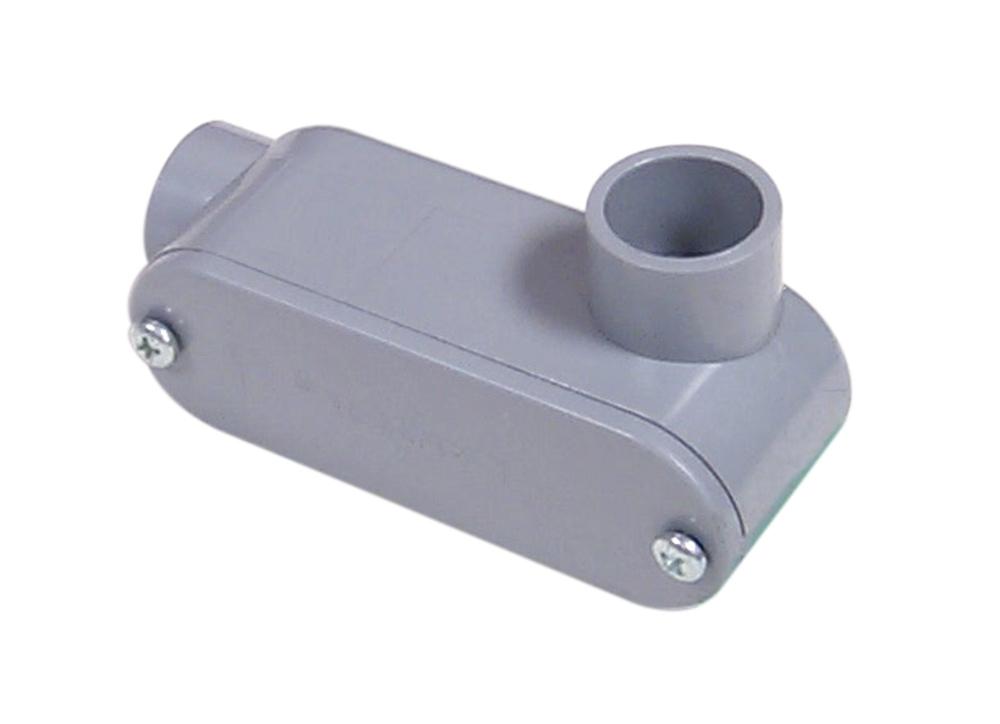

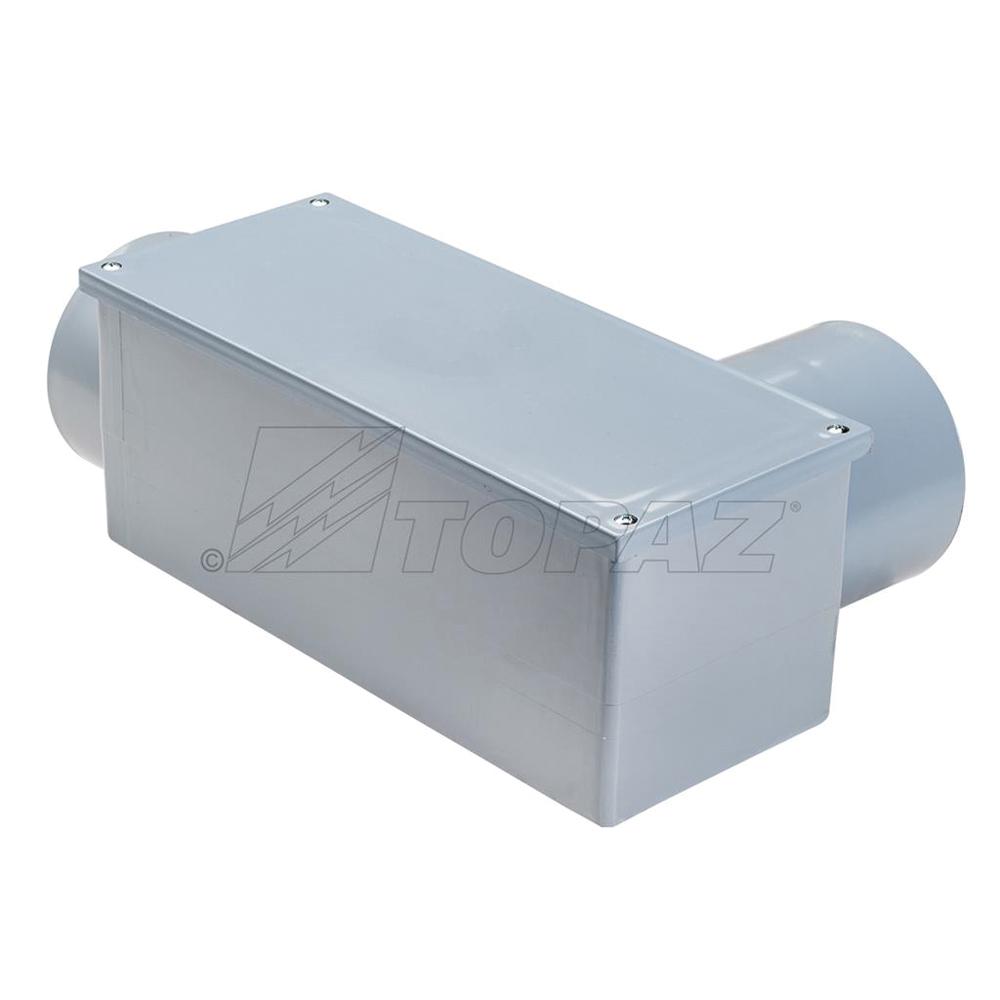

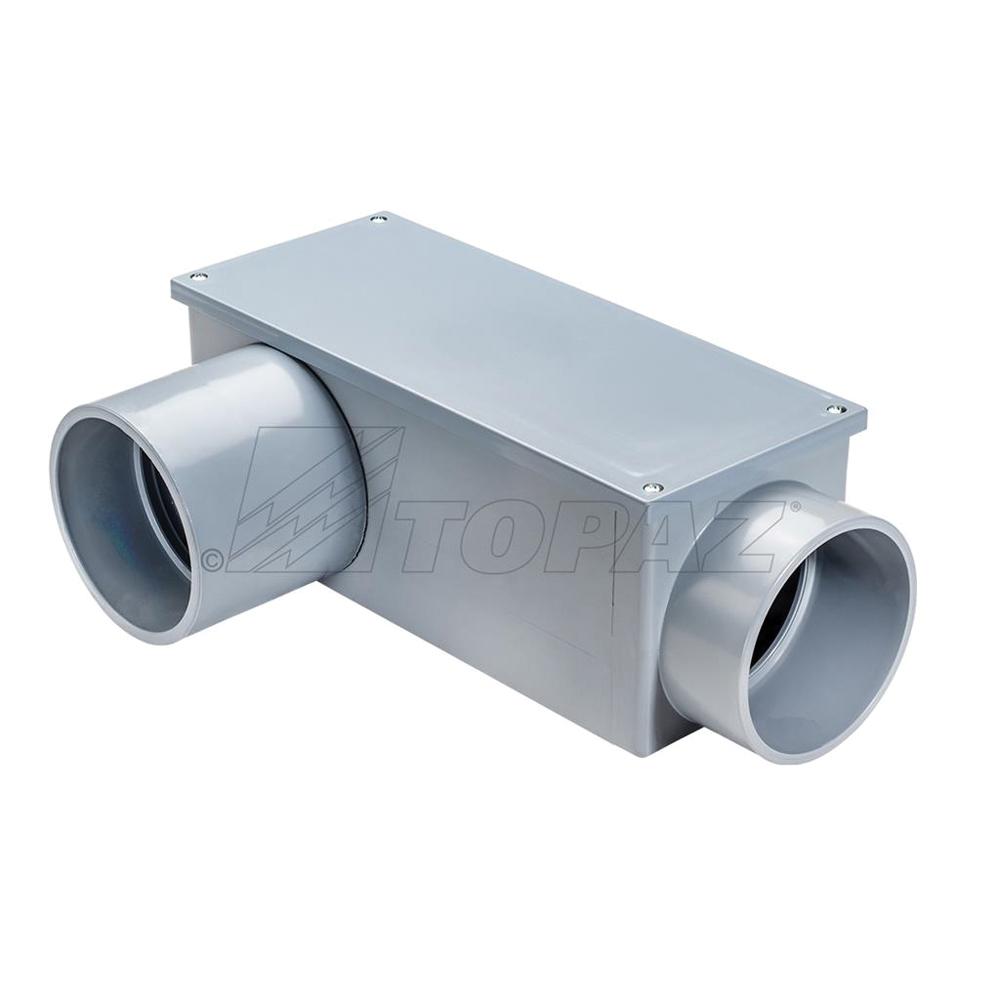

Southwire - Topaz 1168 Type LR Conduit Body With Junction Box, Zinc Plated Steel Screw, 3 in Hub, PVC

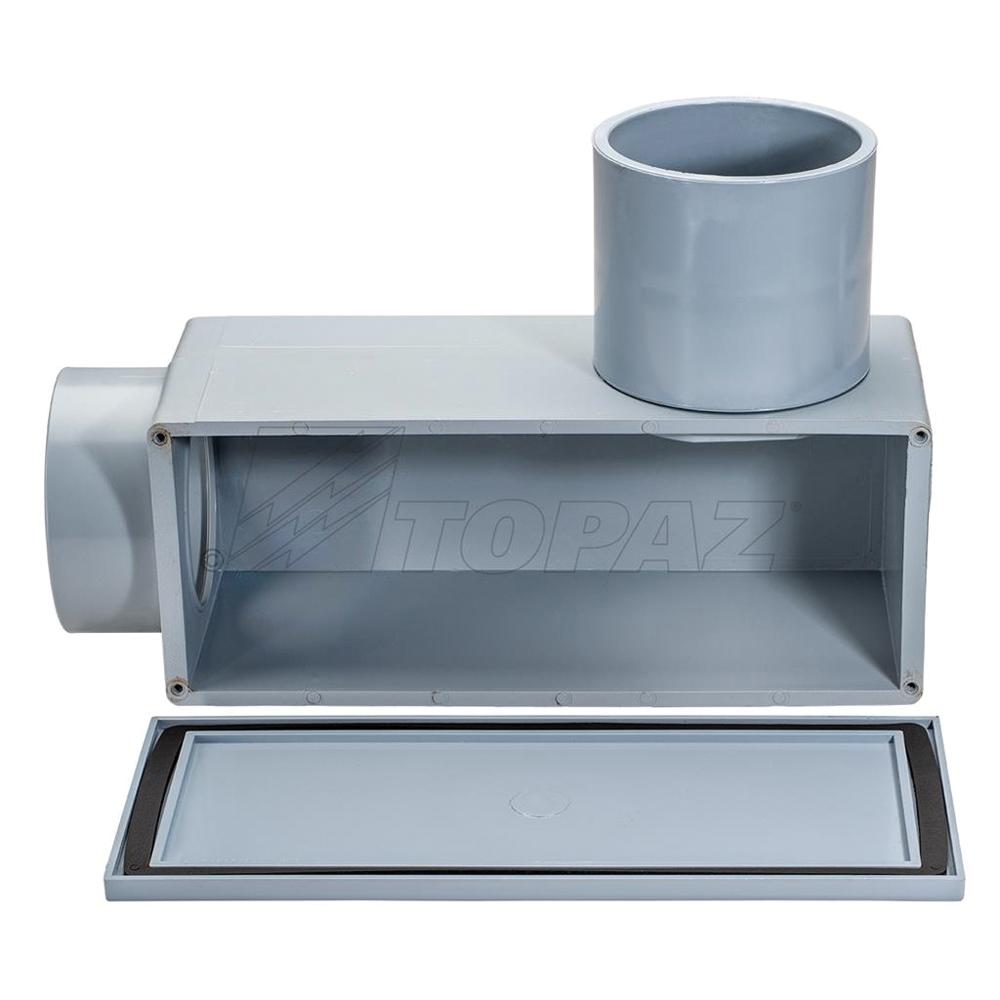

Topaz's Schedule 40 PVC LR Type Conduit Bodies and Junction Boxes can be glued or solvent welded to PVC electrical conduit pipe to create a wire connection point. Removable cover is included with zinc plated screws and a waterproof gasket. Available in sizes from 1/2” to 4”, LR type conduit bodies permit 90° right bends in conduit systems, provide easy access for splicing and can correct and change direction of conduit runs.
-
BrandSouthwire - Topaz
-
UPC751338232273
-
Manufacturer Part Number1168
-
CountryUSA
-
MaterialPVC
-
TypeType LR
-
Wall ThicknessSCH 40
-
Hub Size3 in
-
Number of Hubs2
-
Dimensions15 in L x 4-5/8 in W x 4-5/8 in H
- Rectangular shaped conduit body with a removable cover
- Facing the cover side with the end wall hub pointing up, the second hub is in the right side wall at the opposite end of the fitting
-
Alternative Part Number8751925|18198697
-
UNSPSC39121311
-
IDEA Index ID18198697
-
Package DescriptionEACH
-
Standards/ApprovalsUL 514B|UL File No. E170258|CSA Certified|Federal Specification No. A-A-50563|NEMA/ANSI FB-1|Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
-
Warranty1 Year
-
Warranty Information
-
Catalog
-
Specification Sheet
