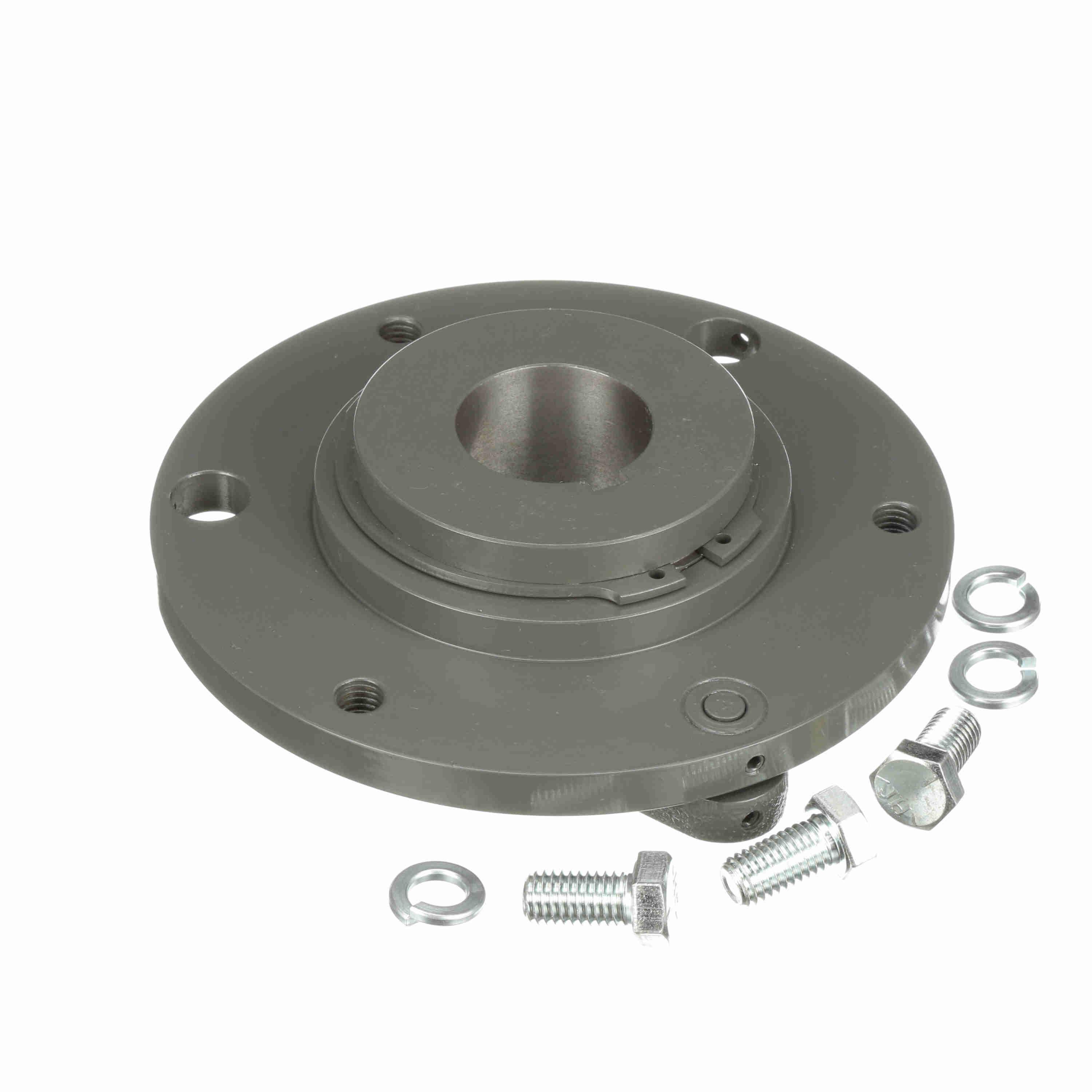

Browning® 1188259 Type 1 Shear Pin Hub, 1/2 to 1-3/4 in Dia Bore, 7/8 in Dia Hub, 7-5/8 in OD Flange, 2-1/8 in L Through Bore
Browning® shear pin hubs are designed to prevent damage to machinery due to sudden overload or jamming by shearing the necked pin at a predetermined load. The inner part of the hub is keyed to the shaft and remains stationary while the outer part, to which the sprocket is bolted, rotates freely after pin breakage, allowing the drive to idle. Shear pin hubs are ideal for heavily lubricated areas where a cost effective solutions is needed.
-
BrandBrowning®
-
UPC662289261499
-
Manufacturer Part Number1188259
-
CountryUSA
-
Flange Outside Diameter7-5/8 in
-
Torque Rating14950 in-lb
-
TypeType 1
-
Number of Bolt Holes3
-
Hub Diameter7/8 in
-
Bolt Size6-1/2 in Dia
-
Length Through Bore2-1/8 in
-
Bore Diameter1/2 to 1-3/4 in
- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning shear pin hubs are designed to prevent damage due to an overload or jam by shearing the necked pin at a predetermined load
- Browning shear pin hubs consist of 3 parts - steel sprockets, hub assembly, malleable bushing
- For P1 split taper bushing
- Stock Sprockets are available in a variety of pitches and number of teeth machined to fit shear pin hubs
-
Alternative Part NumberSHP1 HUB
-
UNSPSC26112000
-
Package DescriptionEACH
-
WarrantyLimited
-
Instruction/Installation Manual
