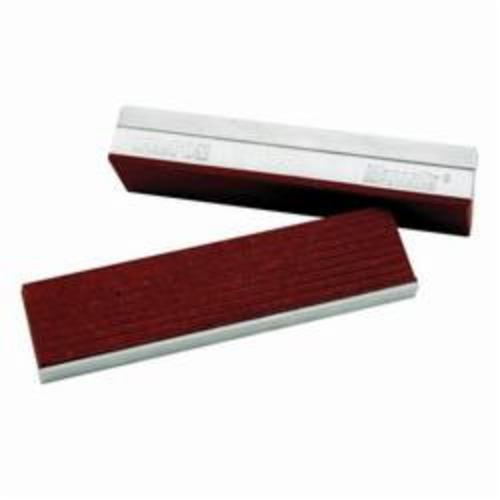

Wilton® WL9-14836 Fiber Face Magnetic Jaw Cap, For Use With Any Vise, 5 in W Jaw, Aluminum Alloy with Laminated Fiber Cover
Wilton fiber-faced jaw caps consist of an aluminum alloy with laminated fiber cover to prevent the absorption of outside materials. Trust these original Wilton parts when it's time to replace your vise jaw caps.
-
BrandWilton®
-
UPC019907148364
-
Manufacturer Part NumberWL9-14836
-
CountryUSA
-
MaterialAluminum Alloy with Laminated Fiber Cover
-
TypeFiber Face Magnetic
-
Jaw Width5 in
-
Suitable For Use WithAny Vise
- Aluminum alloy with laminated fiber cover to prevent the absorption of outside materials
- Heat parts rapidly by concentrating heat into part
- Use on workpieces to avoid distortion and clamping marks
- Temporary work holding systems
- Designed to protect both the vise jaws and the workpiece from marring and distortion during any clamping application
- Caps are constructed from a hardened aluminum alloy with two built-in circular permanent magnets on the backside which holds the product securely to the vise
- Caps are magnetic towards the vise side to prevent steel filings from attaching themselves to the jaws and keep the clamped part from becoming magnetized
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 41D421 |
| Grainger | 41D421 |
-
Alternative Part Number14836
-
UNSPSC27112818
-
Package Description2/CT
-
