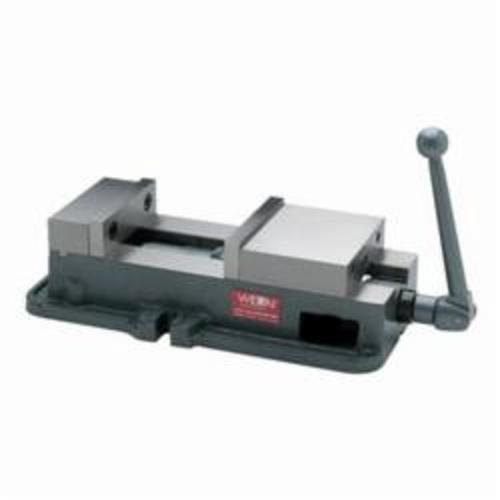

Wilton® WL9-63186 Verti-Lock Machine Vise, 19-45/64 in L 6-5/7 in H, 7-1/2 in Jaw Opening, 6700 lb Capacity, Ductile Alloy
Wilton's verti-lock machine vise has a ductile alloy body with flame hardened bed to provide solid work support, accuracy and longevity. The spindle fully enclosed to protect it from milling elements and cut from special ally steel, hardened and ground.
-
BrandWilton®
-
UPC019907631866
-
Manufacturer Part NumberWL9-63186
-
CountryUSA
-
Capacity6700 lb
-
MaterialDuctile Alloy
-
Throat Depth2 in
-
TypeVerti-Lock
-
Base TypeStationary
-
Jaw Opening7-1/2 in
-
Jaw Width6 in
-
Overall Height6-5/7 in
-
Overall Length19-45/64 in
- The ductile alloy vise body with flame hardened bed provides solid work support, accuracy and longevity
- The fixed jaw is rated at 85000 psi and the annealed, surface ground sliding jaw at 70000 psi
- Totally enclosed vise screw is cut from special alloy steel, hardened and ground
- The vise and optional swivel base have coolant troughs to channel fluid out of your way
- Horizontal vises slide from side to side during milling operations
- Stationary vises are used for machining straight surfaces. they can be fastened to the machine at either a parallel or at a right angle
- 1-3/4 in jaw depth
- Manual operation
- Horizontal orientation
-
Alternative Part Number63186
-
UNSPSC27112102
-
WarrantyLifetime
-
