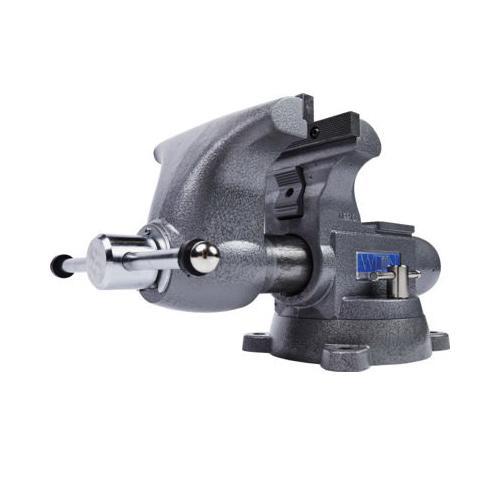

Wilton 8"-JAW-WIDTH SWIVEL-BASE VISES WIL 1780-A
The Tradesman round channel vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut the Tradesman round channel vise nut is anchored at the rear which provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly keeping debris out and lubrication in for a lifetime of smooth operation. For ultimate versatility, the Tradesman vise is equipped with main jaws, pipe jaws and a machined anvil work surface.
-
BrandWilton®
-
UPC731325753981
-
Manufacturer Part NumberWL9-28808
-
CountryUSA
-
Pipe Capacity1/8 to 3-1/2 in
-
MaterialDuctile Iron
-
Throat Depth4-3/4 in
-
TypeRound Channel
-
Mounting TypeBench
-
Rotation Angle360 deg
-
Handle TypePrecision Slide Bar
-
Number of Mounting Points4
-
Base TypeSwivel
-
Jaw MaterialSteel
-
Jaw Opening6-3/4 in
-
Jaw TypeSerrated/Reversible
-
Jaw Width8 in
- Enclosed design keeps lubrication in and contaminants out for a lifetime of smooth operation
- Redesigned spindle assembly improves overall product life and durability
- Machined steel serrated jaws with phosphate coating provide increased durability and an extended life of use
- Reversible jaw inserts are serrated on one side for extra grip and smooth on the other to prevent marring on softer surfaces
- 60000 psi ductile iron body, jaw and base is virtually indestructible with 2X the strength of grey cast iron
- Large anvil designed to take a beating while forming and shaping materials
- Wider jaws provide greater clamping surface
- Large anvil work surface
- Precision slide bar eliminates movement in the front jaw regardless of opened distance
- 360 deg swivel base with double lockdowns
- Longer spindle nut ensures a lifetime of smooth movement and straight line pull
-
Alternative Part Number28808
-
UNSPSC27112102
-
Standards/ApprovalsPROP65: Cancer - www.P65Warnings.ca.gov
-
WarrantyLifetime
-
Instruction/Installation Manual
