Wilton® 10275 Deep Throat Bench and Pipe Combination Vise, Serrated Jaw, 9 in Jaw Opening, 6 in W Jaw Hardened Steel Jaw, 6-5/8 in D Throat
Proudly made in the USA, the Combination pipe and bench round channel vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut, the Combination pipe and bench round channel vise nut is anchored at the rear which provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly keeping debris out and lubrication in for a lifetime of smooth operation. For ultimate versatility, the Combination pipe and bench vise is equipped with main jaws, pipe jaws and a machined anvil work surface.
-
BrandWilton®
-
UPC019907102755
-
Manufacturer Part Number10275
-
CountryUSA
-
MaterialDuctile Iron
-
Jaw Opening9 in
-
Jaw TypeSerrated
-
Jaw Width6 in
-
Pipe Capacity1/4 to 6 in
-
Throat Depth6-5/8 in
-
ColorGray
-
TypeDeep Throat
-
Mounting TypeBolted-Down
-
Rotation Angle360 deg
-
Handle TypePrecision Slide Bar
-
Number of Mounting Points4
-
Base TypeSwivel
-
Jaw MaterialHardened Steel
- The combination pipe and bench round channel vise is designed to handle the most demanding clamping applications
- Unlike most vises that have a fixed center nut, the combination pipe and bench round channel vise nut is anchored at the rear which provides straight line pull and even pressure resulting in greater durability

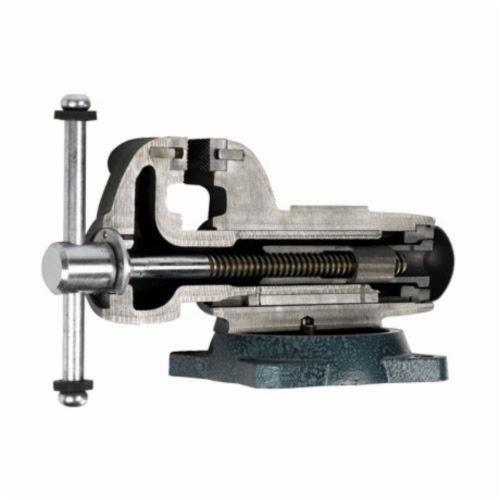

- The round channel design also allows for a completely enclosed spindle and nut assembly keeping debris out and lubrication in for a lifetime of smear operation
- For ultimate versatility, the combination pipe and bench vise is equipped with main jaws, pipe jaws and a machined anvil work surface
- 4 in center distance
- 1-1/4 in H x 5/8 in D jaw
- 27.5 in L x 13.4 in W x 15.7 in H
- Self-centering pipe jaws hold up to 2.5 in pipe safely and securely
- Enclosed construction keeps lubrication in and contaminants out
- Locking swivel base with double lockdowns for non-slip hold in any position
- Precession slide bar eliminates movement in the front jaw regardless of opened distance
- Hardened steel jaw, replaceable inserts are machine serrated for safe, sure grip under maximum torque
- 60000 psi ductile iron body is virtually indestructible with 2X the strength of grey casted vises
- Longer spindle nut ensures a lifetime of smooth movement and straight line pull
-
Alternative Part NumberC-3
-
UNSPSC27112102
-
WarrantyLifetime
-
Package Description1/PK
-
