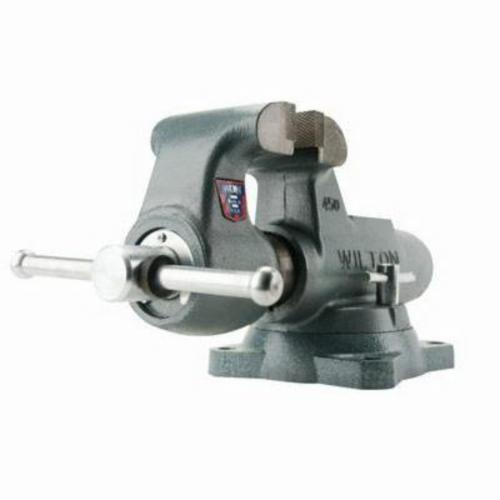

Wilton 6" SWIVEL-BASE MACHINE BENCH VISES WIL 600-S

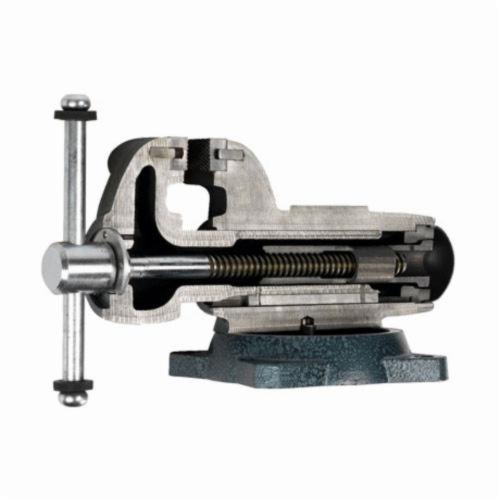

Proudly made in the USA, the machinist vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut the machinist round channel vise nut is anchored at the rear to provide straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly which keeps debris out and lubrication in for a lifetime of smooth operation. The machinist vise is equipped with main jaws and a machined anvil work surface.
-
BrandWilton®
-
UPC731325760576
-
Manufacturer Part NumberWL9-28833
-
CountryUSA
-
MaterialDuctile Iron
-
Throat Depth5-1/2 in
-
TypeRound Channel
-
Mounting TypeBench
-
Rotation Angle360 deg
-
Handle TypePrecision Slide Bar
-
Number of Mounting Points4
-
Base TypeSwivel
-
Jaw MaterialHardened Steel
-
Jaw Opening10 in
-
Jaw TypeSerrated
-
Jaw Width6 in
- Hardened steel jaw, replaceable inserts are machine serrated for safe, sure grip under maximum torque
- Extra deep throat - this design gives you more working room where it counts
- Enclosed design keeps lubrication in and contaminants out for smooth operation
- Locking swivel base - 360 deg rotation is enhanced by serrated swivel base with double lockdowns for non-slip holding and four mounting posts
- Large anvil work surface
- 60000 psi ductile iron body is virtually indestructible with 2X the strength of grey casted vises
- Precession slide bar eliminates movement in the front jaw regardless of opened distance
- Longer spindle nut ensures a lifetime of smooth movement and straight line pull
-
Alternative Part Number28833
-
UNSPSC27112102
-
Owners/User Manual
