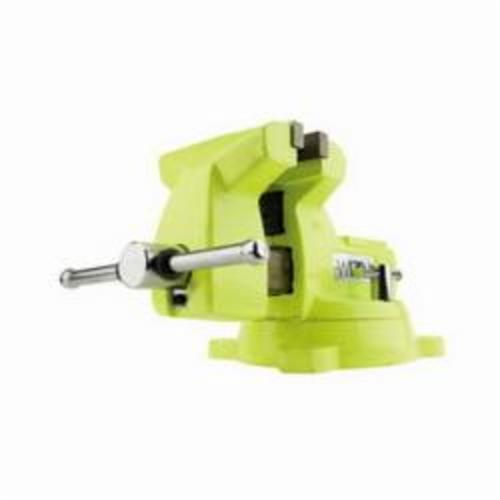

Wilton #1560 SAFETY-YELLOW MECHANICS VISE WIL 63188
Wilton High-Vis Vises conform to OSHA standards for physical hazards regulation #1910.144. Each vise have a heavy-duty casting built for rugged use and extended life. Lifetime lubrication means the grease is permanently sealed in for trouble-free service.
-
BrandWilton®
-
UPC019907631880
-
Manufacturer Part NumberWL9-63188
-
CountryUSA
-
Pipe Capacity1/4 to 3-1/2 in
-
MaterialDuctile Iron
-
Throat Depth4-1/8 in
-
ColorHigh Viz Yellow
-
Mounting TypeBolted-Down
-
Rotation Angle360 deg
-
Number of Mounting Points4
-
Base TypeSwivel
-
Jaw MaterialSteel
-
Jaw Opening5-3/4 in
-
Jaw TypeSerrated
-
Jaw Width6 in
- Safety color conforms to OSHA standard for physical hazards; regulation #1910.144
- Replaceable serrated top jaws and pipe jaws
- 360 deg swivel base and double lockdowns
- Fully enclosed spindle and nut
- Large anvil work surface
- Powder coat paint resists scratches and provides a tough durable finish
- Heavy duty 30000 psi iron casting built for rugged use and extended life
- 5500 lb clamping force
- 16.6 in L x 9.7 in W x 9.8 in H
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 5LJ85 |
-
Alternative Part Number63188
-
UNSPSC27112102
-
Package Description1/PK
-
WarrantyLifetime
-
