Wilton® 10016 Round Channel Machinist Vise With Swivel Base, Serrated Jaw, 6-1/2 in Jaw Opening, 4 in W Hardened Steel Jaw, 3-1/2 in D Throat
Proudly made in the USA, the machinist vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut the machinist round channel vise nut is anchored at the rear to provide straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly which keeps debris out and lubrication in for a lifetime of smooth operation. The machinist vise is equipped with main jaws and a machined anvil work surface.
-
BrandWilton®
-
UPC019907100164
-
Manufacturer Part Number10016
-
CountryUSA
-
Throat Depth3-1/2 in
-
Clamping Capacity0 to 6-1/16 in
-
Clamping Pressure6600 lb
-
TypeRound Channel
-
Screw Size3/4 in
-
Anvil TypeV-Grooved
-
SeriesClassic 400-SF
-
Dimensions12.8 in L x 7.2 in W x 1.5 in H
-
Body MaterialForged Steel
-
MaterialDuctile Iron
-
Mounting TypeBench
-
Rotation Angle360 deg
-
Handle TypePrecision Slide Bar
-
Number of Mounting Points4
-
Base TypeSwivel
-
Jaw MaterialHardened Steel
-
Jaw Opening6-1/2 in
-
Jaw TypeSerrated
-
Jaw Width4 in
- Hardened steel jaw, replaceable inserts are machine serrated for safe, sure grip under maximum torque
- Extra deep throat - this design gives you more working room where it counts
- Enclosed design keeps lubrication in and contaminants out for smooth operation
- Locking swivel base - 360 deg rotation is enhanced by serrated swivel base with double lockdowns for non-slip holding and four mounting posts
- Large anvil work surface
- 60000 psi ductile iron body is virtually indestructible with 2X the strength of grey casted vises
- Precession slide bar eliminates movement in the front jaw regardless of opened distance
- Longer spindle nut ensures a lifetime of smooth movement and straight line pull
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 24W097 |
| Grainger | 24W097 |
-
Alternative Part Number400S
-
UNSPSC27112102
-
Package Description1/CT
-
Standards/ApprovalsOSHA 1910.150
-
WarrantyLifetime
-
Owners/User Manual
Recently Viewed
Wilton® 10016 Round Channel Machinist Vise With Swivel Base, Serrated Jaw, 6-1/2 in Jaw Opening, 4 in W Hardened Steel Jaw, 3-1/2 in D Throat
Proudly made in the USA, the machinist vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut the machinist round channel vise nut is anchored at the rear to provide straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly which keeps debris out and lubrication in for a lifetime of smooth operation. The machinist vise is equipped with main jaws and a machined anvil work surface.
RIDGID® 32905, 228 Soil Pipe Assembly Tool, 1-1/2 to 8 in

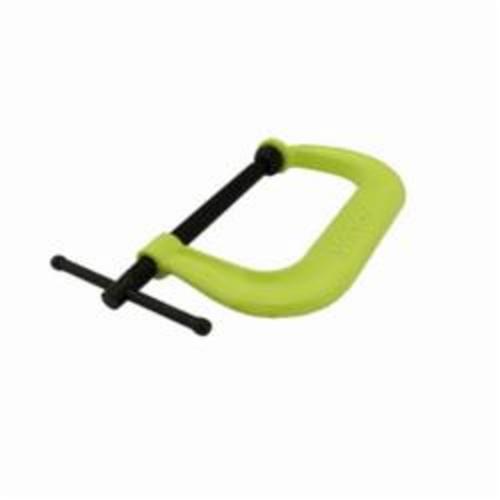

Wilton® WL9-14243 Spark-Duty™ 400P Deep Throat Regular Duty C-Clamp, 3-1/4 in D Throat, 0 to 4-1/4 in Clamping, 3/4 in Screw
