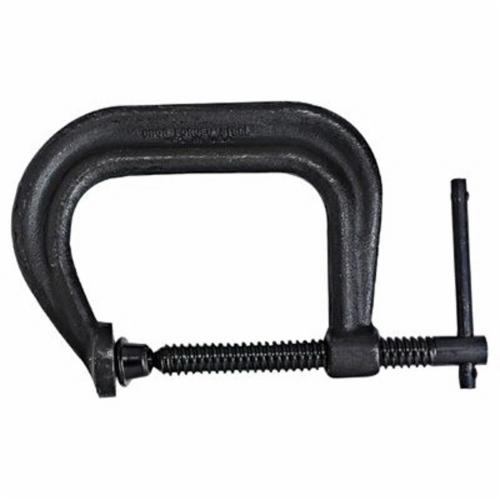

Proto Tools 0" TO 6" X-DEEP-THROAT C-CLAMPS PRO J-426
Proto® J426 Standard Duty C-Clamp, 4-3/4 in D Throat, 6 in Clamping, 0 to 6 in Jaw Opening, 3/4 in Screw
-
BrandProto®
-
UPC662679480387
-
Manufacturer Part NumberJ426
-
CountryUSA
-
Throat Depth4-3/4 in
-
Clamping Capacity6 in
-
Clamping Pressure5400 lb
-
TypeStandard Duty
-
Screw Size3/4 in
-
Anvil TypeFlat
-
Jaw Opening0 to 6 in
-
Body MaterialForged Alloy Steel
- Full length forcing screw
- Heavy rolled, acme thread forcing screw
- 32% more throat depth than standard deep throat clamp
- Hot forged for strength and hard use
| Competitor Name | Cross-Reference Number |
|---|---|
| MSC | 88738331 |
-
UNSPSC27112120
-
Package DescriptionEACH
-
Standards/ApprovalsCID A-A-429C
-
WarrantyLifetime
-
