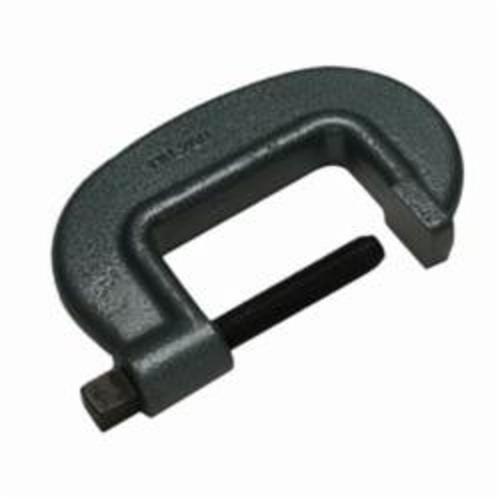

Wilton® Brute Force™ 27211 O Series Extra Heavy Duty Standard Depth Throat C-Clamp, 4-1/4 in D Throat, 7 to 12-3/8 in Clamping, 7-1/2 to 12-1/2 in Jaw Opening, 1-1/8 in Screw
Wilton® Brute Force™ bridge c-clamps are ideal for heavy construction and fabrication. Brute force c-clamps boast a drop forged frame, black oxide coating and clamping pressure ranging up to 40,000 lbs. Spindles are full length, machined from a single piece of square, cold drawn steel tempered and hardened. Square spindle heads stand up to heavy wrench tightening.
-
BrandWilton®
-
UPC019907272113
-
Manufacturer Part Number27211
-
CountryUSA
-
Throat Depth4-1/4 in
-
Clamping Capacity7 to 12-3/8 in
-
Clamping Pressure40000 lb
-
TypeExtra Heavy Duty Standard Depth Throat
-
Screw Size1-1/8 in
-
SeriesO Series
-
Dimensions20.9 in L x 9.6 in W x 1.9 in H
-
Jaw Opening7-1/2 to 12-1/2 in
-
Body MaterialForged Steel
- The partial closing, extra heavy duty models are designed to stand up to the demands of heavy industrial applications like those encountered in ship building
- Hot upset square head on spindle withstands higher torque
- Square head spindle has large diameter rolled thread and hardened point which provides smoother operation and added strength
- Black oxide coated spindle resists corrosion
- Standard c-clamps are used for holding and aligning together multiple workpieces
-
Alternative Part Number12-SS
-
UNSPSC27112120
-
WarrantyLifetime
-
