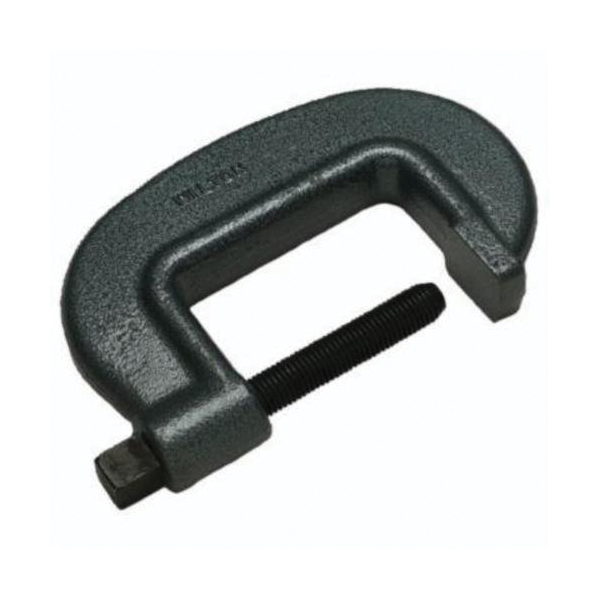

Wilton® Brute Force™ 27209 Bridge/Boiler Short Spindle C-Clamp, 3-5/8 in D Throat, 3 to 8-1/2 in Jaw Opening, 1-1/8 in Screw
Wilton® Brute Force™ 27209 Bridge/Boiler Short Spindle C-Clamp, 3-5/8 in D Throat, 3 to 8-1/2 in Jaw Opening, 1-1/8 in Screw
-
BrandWilton®
-
UPC019907272090
-
Manufacturer Part Number27209
-
CountryUSA
-
Throat Depth3-5/8 in
-
Clamping Pressure31250 lb
-
TypeBridge/Boiler Short Spindle
-
Screw Size1-1/8 in
-
Jaw MaterialTempered and Hardened Steel
-
Jaw Opening3 to 8-1/2 in
-
Body MaterialForged Steel
- Spindles are full length, machined from a single piece of square, cold drawn steel tempered and hardened
- Square spindle heads stand up to heavy wrench tightening
- C-clamps boast a drop forged frame, black oxide coating, and clamping pressure ranging up to 40000 lbs
- The partial closing, extra heavy duty models are designed to stand up to the demands of heavy industrial applications like those encountered in ship building
- Hot upset square head on spindle withstands higher torque
- Square-head spindle has large diameter rolled thread and hardened point which provides smoother operation and added strength
- Black oxide coated spindle resists corrosion
-
Alternative Part Number8-SS
-
UNSPSC27112120
-
WarrantyLifetime
-
