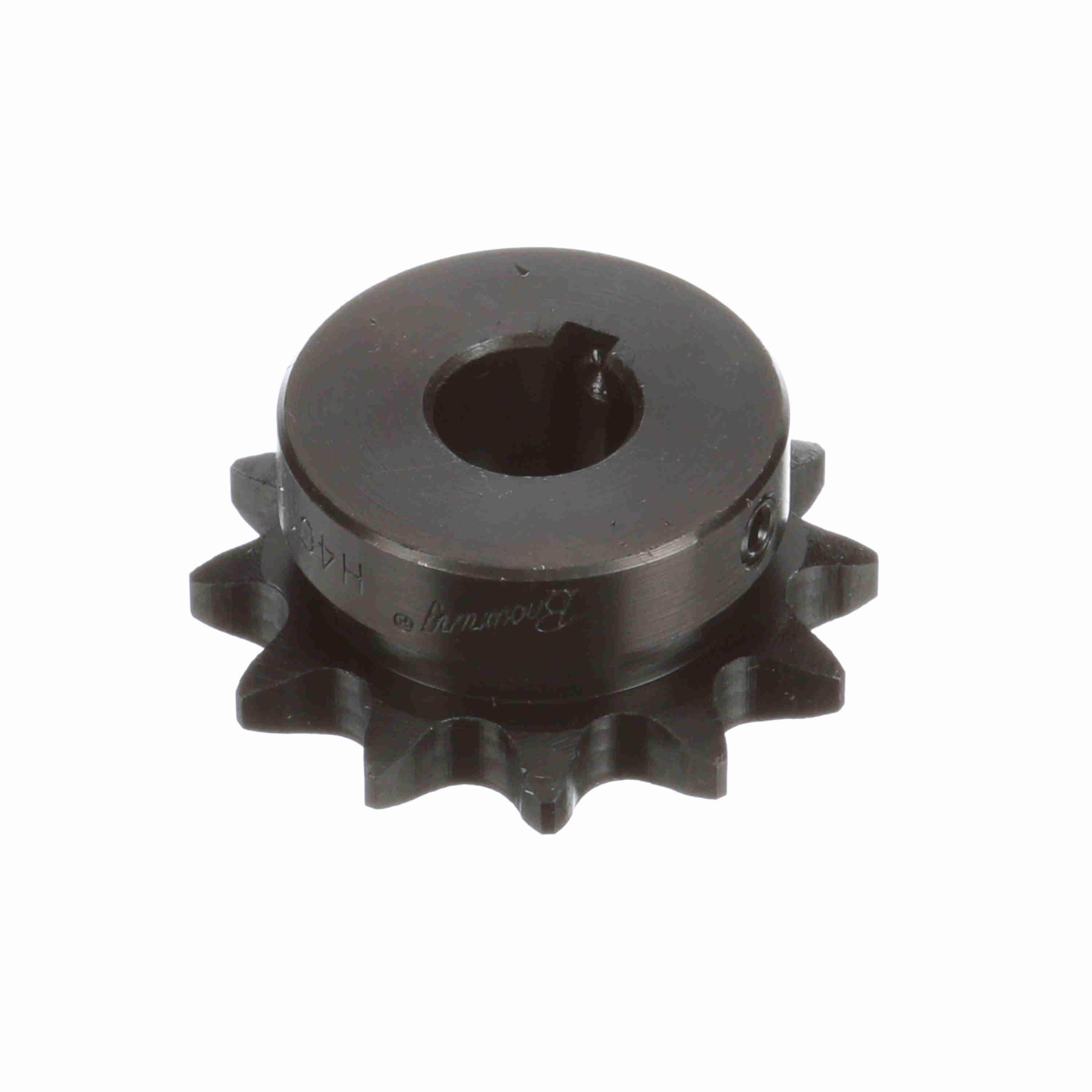

Browning 12-TOOTH #40-1 CHAIN SPROCKETS BRW H-4012 X 5/8
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289162833
-
Manufacturer Part Number1128008
-
CountryUSA
-
Pitch1/2 in
-
Pitch Diameter1.932 in
-
MaterialSteel
-
Chain Size#40
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter1.609 in
-
Number of Teeth12
-
Keyway Size3/16 x 3/32 in
-
Outside Diameter2.166 in
-
Length Through Bore0.891 in
-
Bore Diameter5/8 in
- In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
- For use with 1/2 in pitch ANSI chain
- Additional setscrew at 90 deg to keyway
- This Product has the Browning Exclusive Twice the Life Guarantee
- Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway
| Competitor Name | Competitor Part Number |
|---|---|
| Motion Industries | 00188649 |
| Motion Industries | 00188649 |
-
Alternative Part NumberH4012X5/8
-
UNSPSC31171900
-
Package DescriptionEACH
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
