IDC Select® IDC H50B19F-3/4 Finished Bore Type B Single Strand Roller Chain Sprocket, 3/4 in Dia Bore, 4.12 in OD, 50 Chain, 19 Teeth, 5/8 in Pitch, C1045 Steel
IDC Select® offers a wide range of high quality roller chain sprockets produced in ISO certified facilities to ANSI standards. Plain bore, finished bore, taper and QD® bushing designs are available. All IDC Select® sprockets come with hardened teeth and black oxide finish for long lasting service life. The finished bore design comes complete with a keyway on the centerline of the sprocket tooth and two setscrews, one over the keyway and one at 90 deg.
-
BrandIDC Select®
-
UPC887412033518
-
Manufacturer Part NumberIDC H50B19F-3/4
-
CountryUSA
-
Pitch5/8 in
-
Pitch Diameter3.797 in
-
FinishBlack Oxide
-
MaterialC1045 Steel
-
Chain Size50
-
TypeFinished Bore Type B
-
Screw Size1/4 in
-
Number of Teeth19
-
Keyway Size3/16 in W x 3/32 in D
-

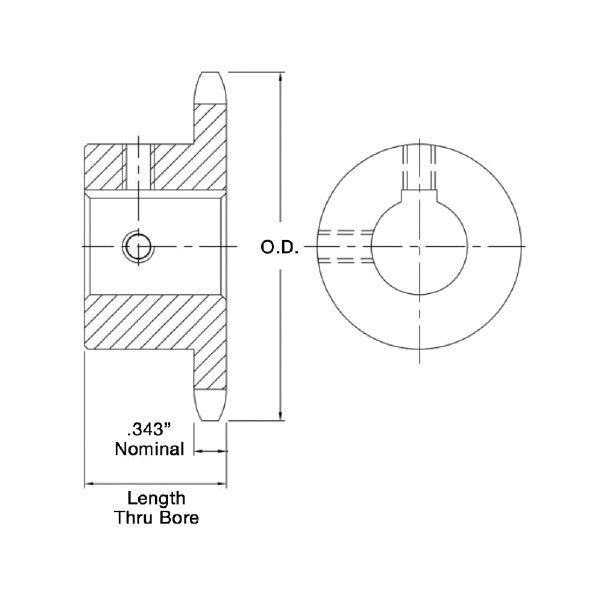

Outside Diameter4.12 in
-
Length Through Bore1 in
-
Bore Diameter3/4 in
- Hardened teeth for longer life
- Bored to size and ready to install
-
UNSPSC31171901
-
Includes(2) Setscrews
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Technical Bulletin
-
Catalog
