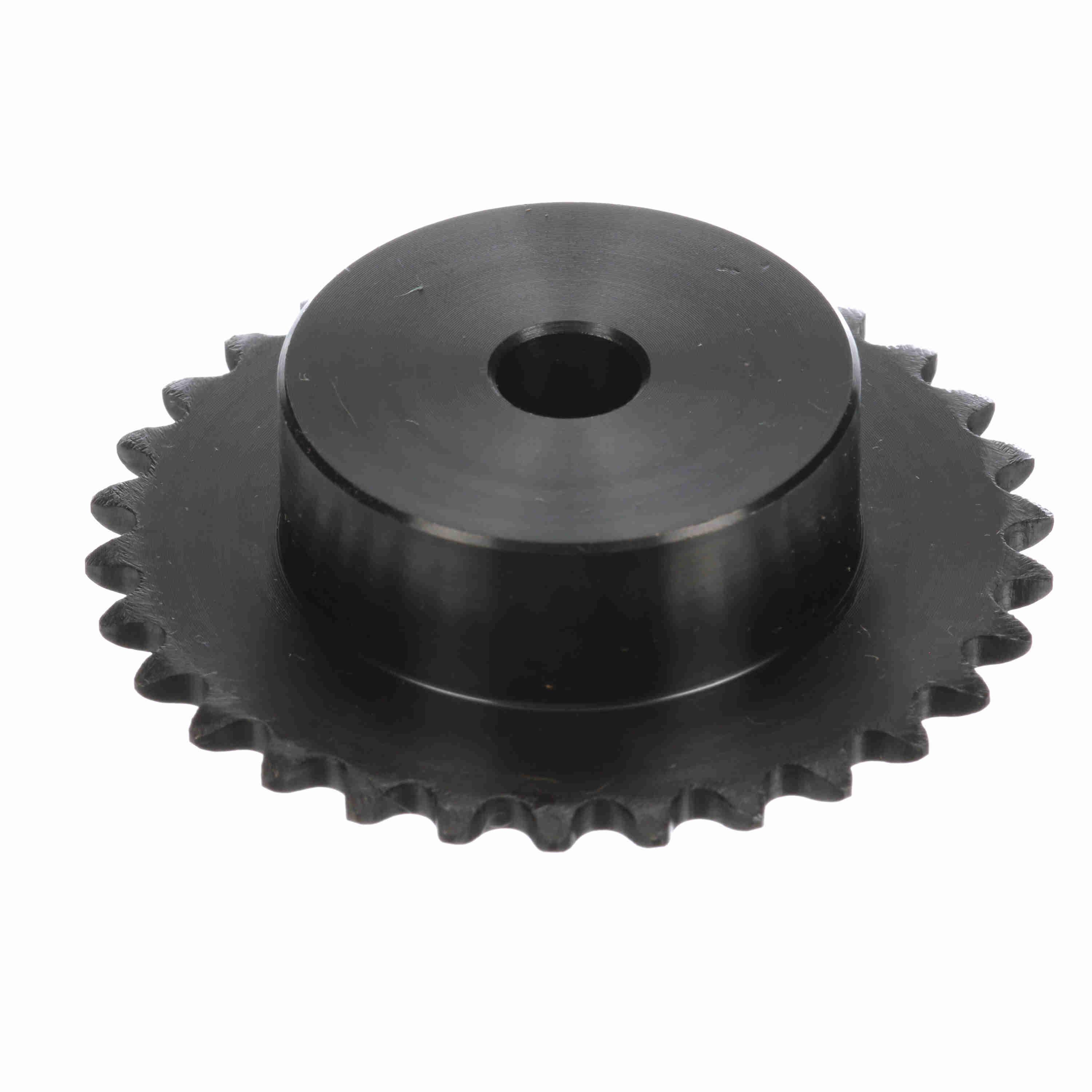

Browning 30-T MPB SPROCKETS FOR #25 CHAIN BRW 25-B-30
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289319220
-
Manufacturer Part Number1121441
-
CountryUSA
-
Pitch1/4 in
-
Pitch Diameter2.392 in
-
MaterialSteel
-
Chain Size#25
-
TypeSingle Strand Minimum Bore Type B
-
Hub Diameter1-1/2 in
-
Number of Teeth30
-
Keyway Size1/4 x 1/8 in
-
Outside Diameter2.53 in
-
Length Through Bore5/8 in
-
Bore Diameter3/8 in
- Made with Minimum bore, no keyseat or setscrew
- This can be bored to size with keyseat and setscrew for a reasonable extra charge
-
Alternative Part Number25B30
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
