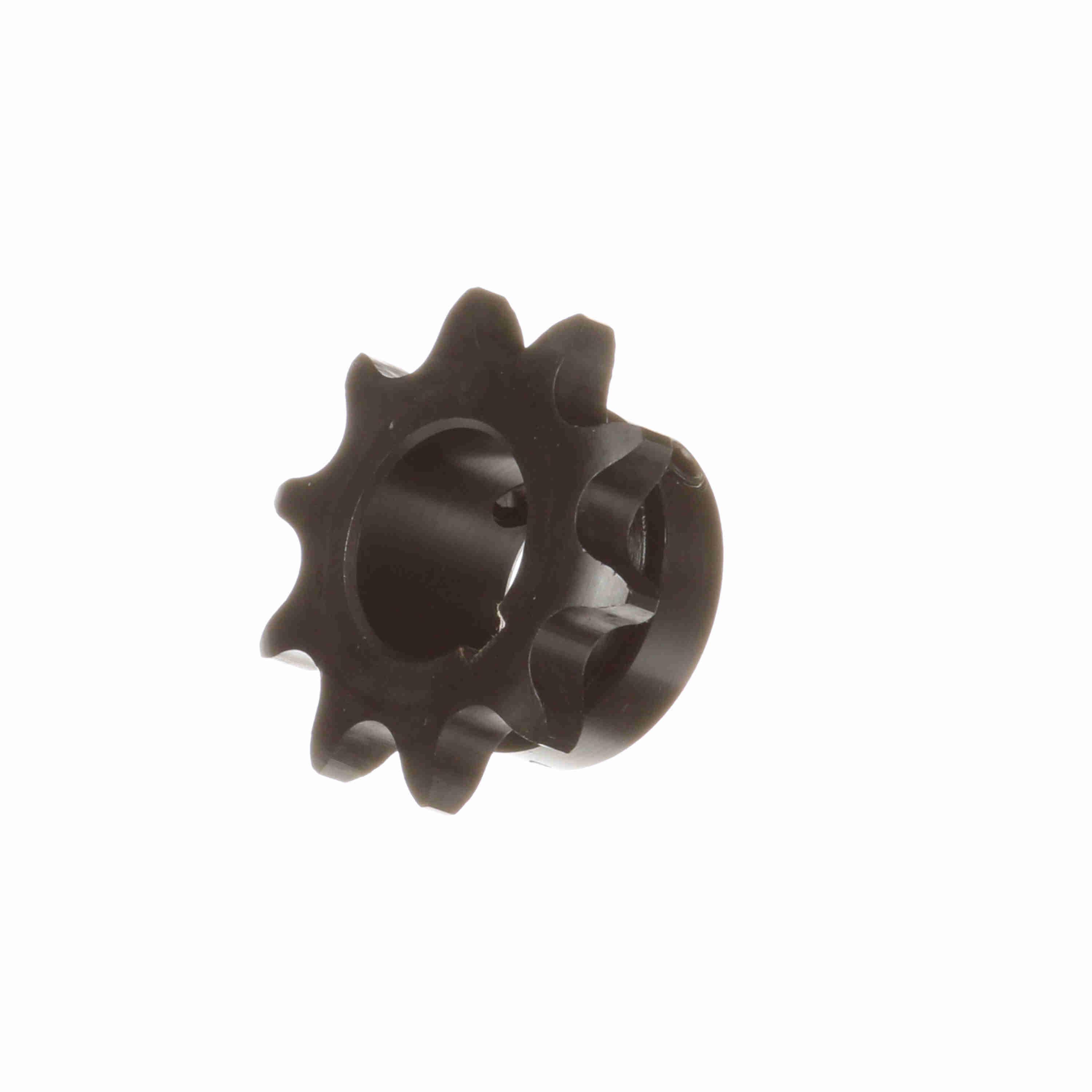

Browning® 1642776 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 1 in Dia Bore, 2.299 in OD, #50 Chain, 10 Teeth, 5/8 in Pitch, Steel
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289862634
-
Manufacturer Part Number1642776
-
CountryUSA
-
Bushing TypeSplit Taper
-
Pitch5/8 in
-
Pitch Diameter2.023 in
-
MaterialSteel
-
Chain Size#50
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter1-19/32 in
-
Number of Teeth10
-
Keyway Size1/4 x 1/8 in
-
Outside Diameter2.299 in
-
Length Through Bore1.016 in
-
Bore Diameter1 in
- This Product has the Browning Exclusive Twice the Life Guarantee
-
Alternative Part NumberH5010X1
-
UNSPSC31171900
-
Package DescriptionEACH
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
