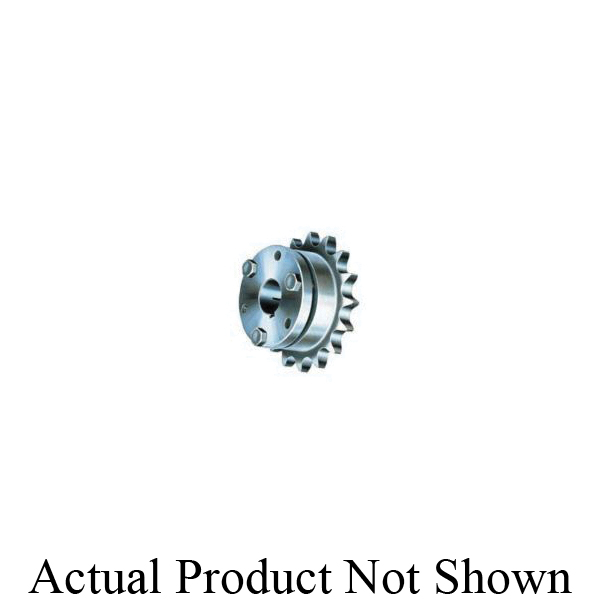

Browning SPROCKETS--USE "BRW" H-100-Q-23
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289277421
-
Manufacturer Part Number1172493
-
CountryUSA
-
Bushing TypeType 4 Split Taper
-
Pitch1-1/4 in
-
Pitch Diameter12.753 in
-
MaterialSteel
-
Chain Size#100
-
TypeSingle Strand
-
Hub Diameter4-1/8 in
-
Number of Teeth32
-
Outside Diameter13.441 in
-
Length Through Bore2-1/2 in
-
Bore Diameter3/4 in
- This product has the Browning® exclusive twice the life guarantee
- Easy installation and removal
- External key higher torque capacity, aligns bolt holes
- Provides key-to-key drive
- Double split barrel improved clamping
- Solid flange true concentricity
- Longer barrel better support on the shaft
- For use with 1-1/4 in pitch ANSI chain
-
Alternative Part Number100Q32
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
