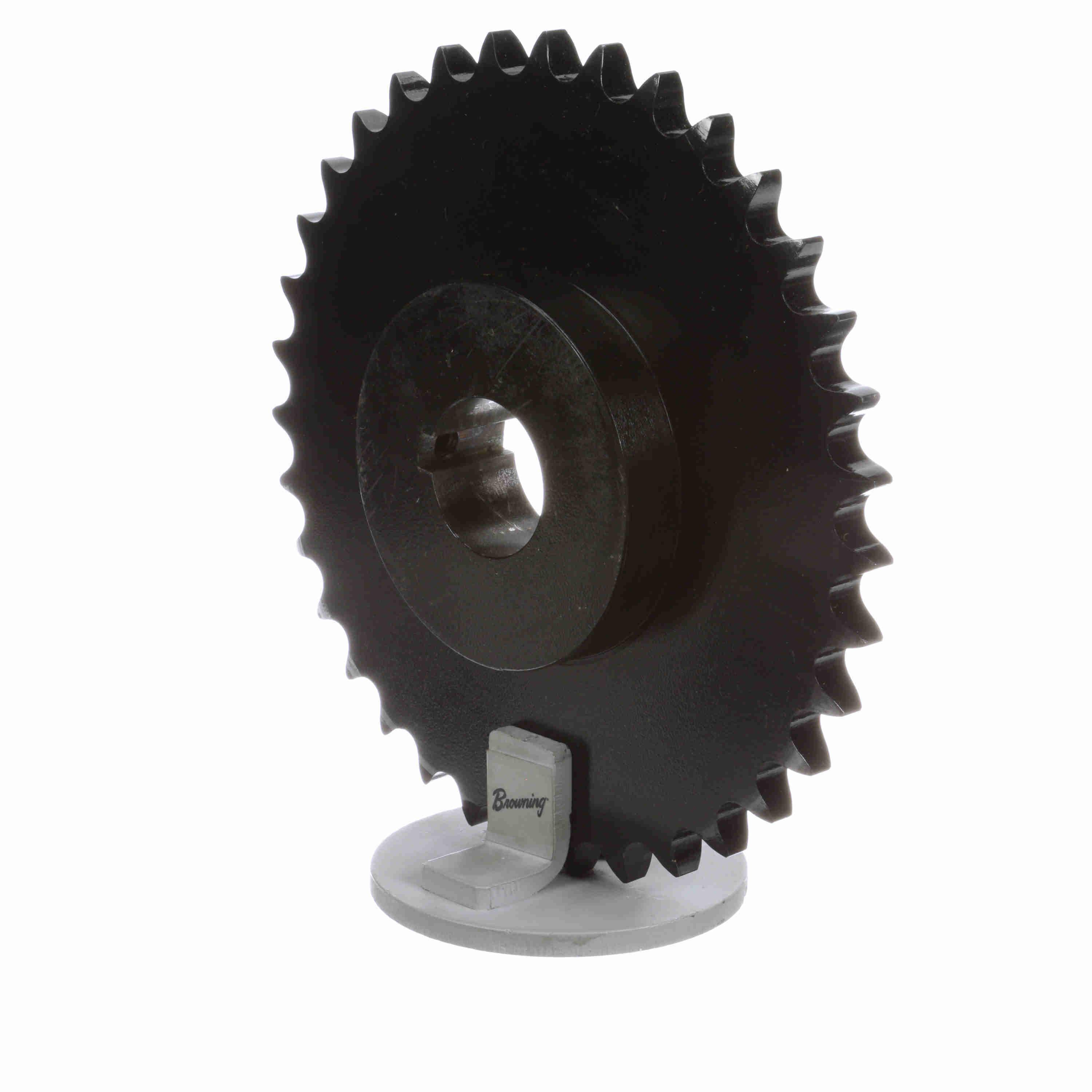

Browning 35-TOOTH #60-1 CHAIN SPROCKETS BRW 6035 X 1-5/8
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289406432
-
Manufacturer Part Number1143403
-
CountryUSA
-
Pitch3/4 in
-
Pitch Diameter8.367 in
-
MaterialSteel
-
Chain Size#60
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter4.016 in
-
Number of Teeth35
-
Keyway Size3/8 x 3/16 in
-
Outside Diameter8.783 in
-
Length Through Bore1-1/4 in
-
Bore Diameter1-5/8 in
- Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
- In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
- For use with 3/4 in pitch ANSI chain
-
Alternative Part Number6035X 1 5/8
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
