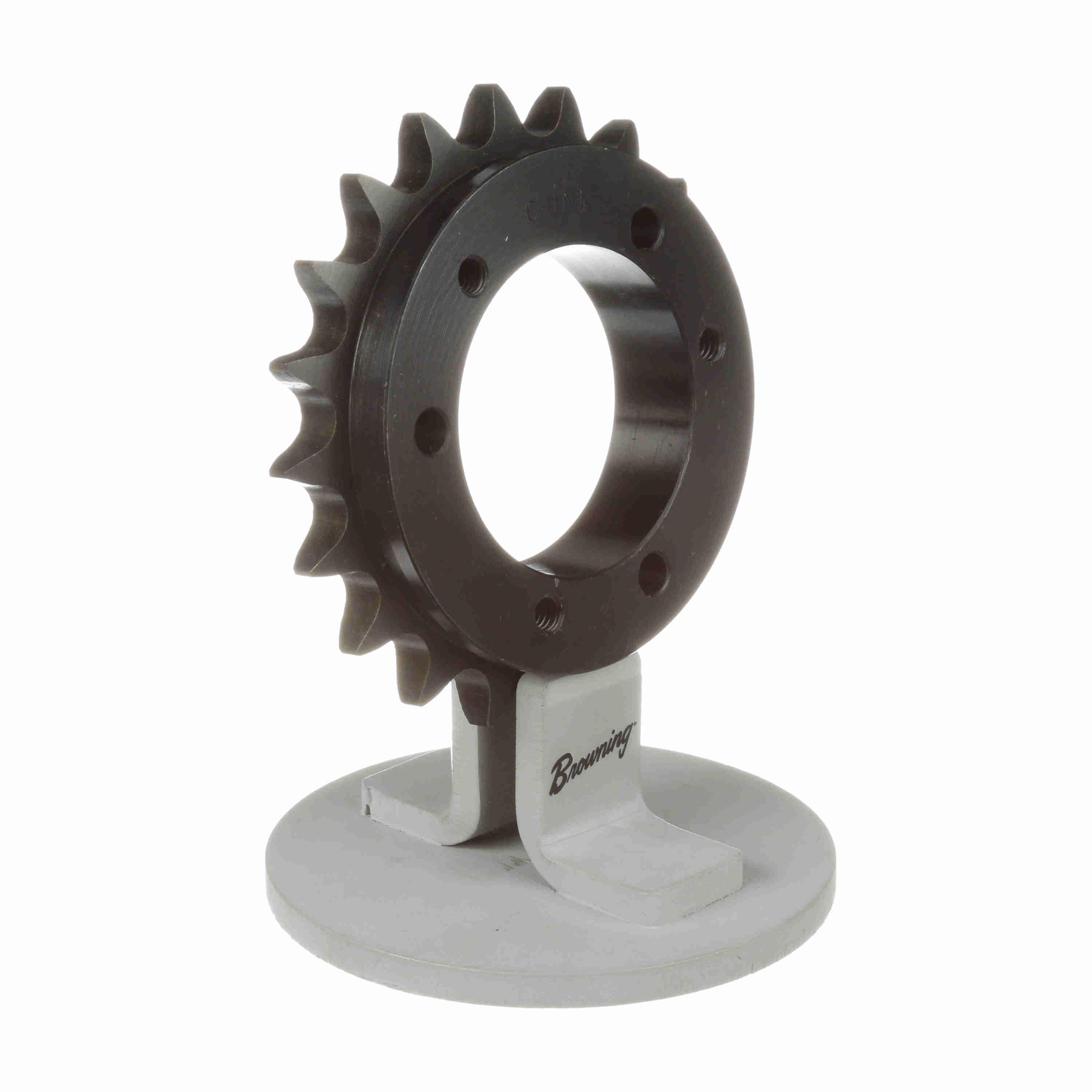

Browning 30-T SDS-BUSH #50 CHAIN SPROCKETS BRW H-50-SDS-30
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289243754
-
Manufacturer Part Number3333549
-
CountryUSA
-
Bushing TypeType QD®-1
-
Pitch5/8 in
-
Pitch Diameter5.979 in
-
MaterialSteel
-
Chain Size#50
-
TypeSingle Strand
-
Hub Diameter3.14 in
-
Number of Teeth30
-
Outside Diameter6.321 in
-
Length Through Bore1.33 in
-
Bore Diameter1/2 in
- This product has the Browning® exclusive twice the life guarantee
- Easy installation and removal
- Reverse mounting possible
- For use with 5/8 in pitch ANSI chain
-
Alternative Part NumberH50SDS30
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
