IDC Select® IDC H80B13F-1-1/2 Finished Bore Type B Single Strand Roller Chain Sprocket, 1-1/2 in Dia Bore, 4.66 in OD, 80 Chain, 13 Teeth, 1 in Pitch, C1045 Steel
IDC Select® offers a wide range of high quality roller chain sprockets produced in ISO certified facilities to ANSI standards. Plain bore, finished bore, taper and QD® bushing designs are available. All IDC Select® sprockets come with hardened teeth and black oxide finish for long lasting service life. The finished bore design comes complete with a keyway on the centerline of the sprocket tooth and two setscrews, one over the keyway and one at 90 deg.
-
BrandIDC Select®
-
UPC887412043579
-
Manufacturer Part NumberIDC H80B13F-1-1/2
-
CountryUSA
-
Pitch1 in
-
Pitch Diameter4.179 in
-
FinishBlack Oxide
-
MaterialC1045 Steel
-
Chain Size80
-
TypeFinished Bore Type B
-
Screw Size3/8 in
-
Number of Teeth13
-
Keyway Size3/8 in W x 3/16 in D
-

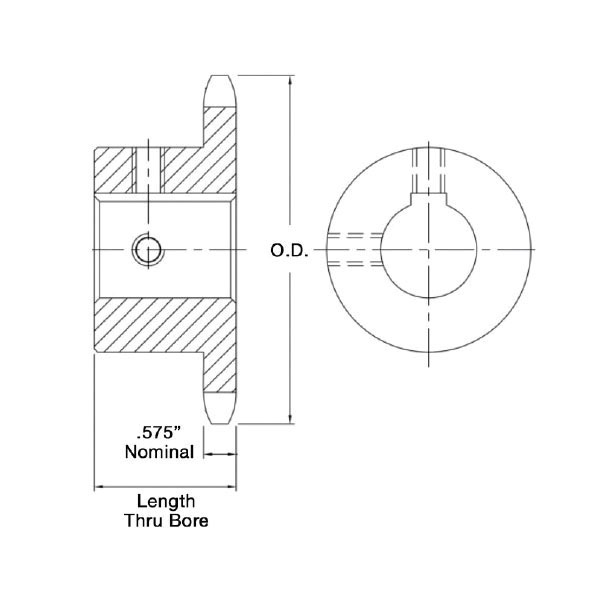

Outside Diameter4.66 in
-
Length Through Bore1-1/2 in
-
Bore Diameter1-1/2 in
- Hardened teeth for longer life
- Bored to size and ready to install
-
UNSPSC31171901
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Technical Bulletin
-
Catalog
