11-TOOTH #80-1 CHAIN SPROCKETS IDC 80-B-11-F-1-1/2

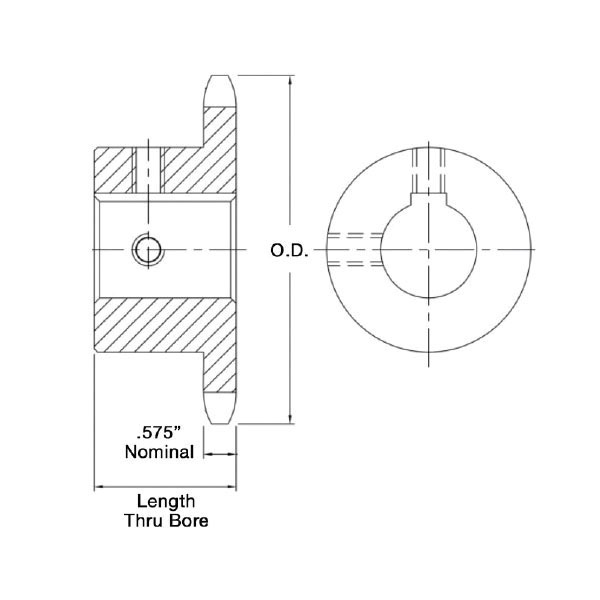

IDC Select® offers a wide range of high quality roller chain sprockets produced in ISO certified facilities to ANSI standards. Plain bore, finished bore, taper and QD® bushing designs are available. All IDC Select® sprockets come with hardened teeth and black oxide finish for long lasting service life. The finished bore design comes complete with a keyway on the centerline of the sprocket tooth and two setscrews, one over the keyway and one at 90 deg.
-
BrandIDC Select®
-
UPC887412043401
-
Manufacturer Part NumberIDC H80B11F-1-1/2
-
CountryUSA
-
Pitch1 in
-
Pitch Diameter3.549 in
-
FinishBlack Oxide
-
MaterialC1045 Steel
-
Chain Size80
-
TypeFinished Bore Type B
-
Screw Size3/8 in
-
Number of Teeth11
-
Keyway Size3/8 in W x 3/16 in D
-
Outside Diameter4.01 in
-
Length Through Bore1-5/8 in
-
Bore Diameter1-1/2 in
- Hardened teeth for longer life
- Bored to size and ready to install
-
UNSPSC31171901
-
Includes
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Technical Bulletin
-
