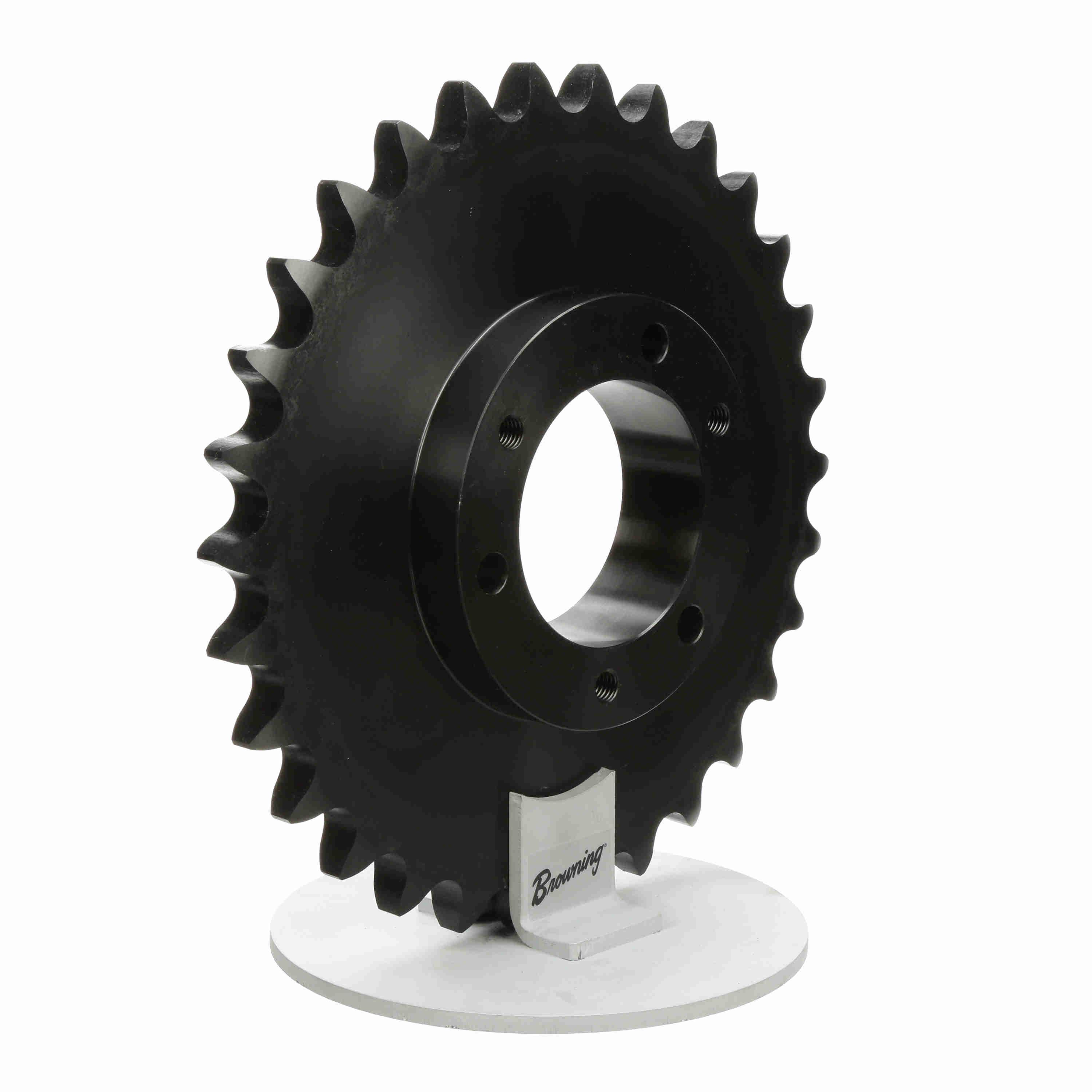

Browning® 3334059 Single Strand QD Bushed Type QD-1 Roller Chain Sprocket With Hardened Teeth, 7/8 in Dia Bore, 9.844 in OD, #100 Chain, 23 Teeth, Steel
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289240920
-
Manufacturer Part Number3334059
-
CountryUSA
-
Pitch Diameter9.18 in
-
MaterialSteel
-
Chain Size#100
-
TypeSingle Strand QD Bushed Type QD-1
-
Hub Diameter6 in
-
Number of Teeth23
-
Outside Diameter9.844 in
-
Length Through Bore3-1/16 in
-
Bore Diameter7/8 in
- This product has the Browning® exclusive twice the life guarantee
- Easy installation and removal
- Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
- Reverse mounting possible
- For use with 1-1/4 in pitch ANSI chain
-
Alternative Part NumberH100E23
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
