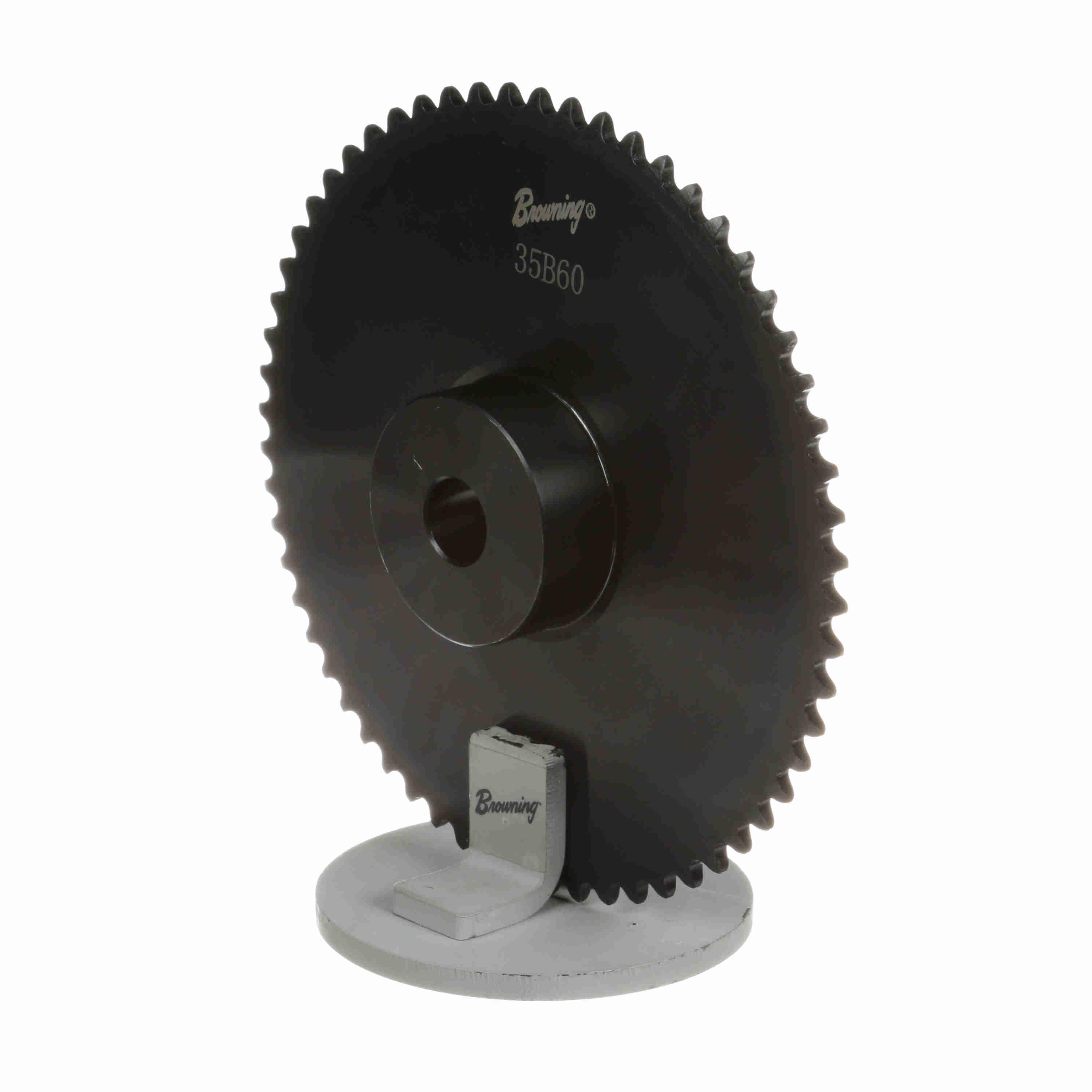

Browning® 1121847 Single Strand Minimum Bore Type B Roller Chain Sprocket With Hardened Teeth, 3/4 in Dia Bore, 7.38 in OD, #35 Chain, 60 Teeth, Steel
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289248704
-
Manufacturer Part Number1121847
-
CountryUSA
-
Pitch Diameter7.165 in
-
MaterialSteel
-
Chain Size#35
-
TypeSingle Strand Minimum Bore Type B
-
Hub Diameter2-1/4 in
-
Number of Teeth60
-
Outside Diameter7.38 in
-
Length Through Bore1 in
-
Bore Diameter3/4 in
- Larger hub diameter allows larger bore capacity
- Lasts longer than sprockets made from low carbon steel
- Maximum bore shown will accommodate standard keyways and setscrews over keyway
- Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
- Hub projection on one side
- High quality, high carbon steel
- For use with 3/8 in pitch ANSI chain
-
Alternative Part Number35B60
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
