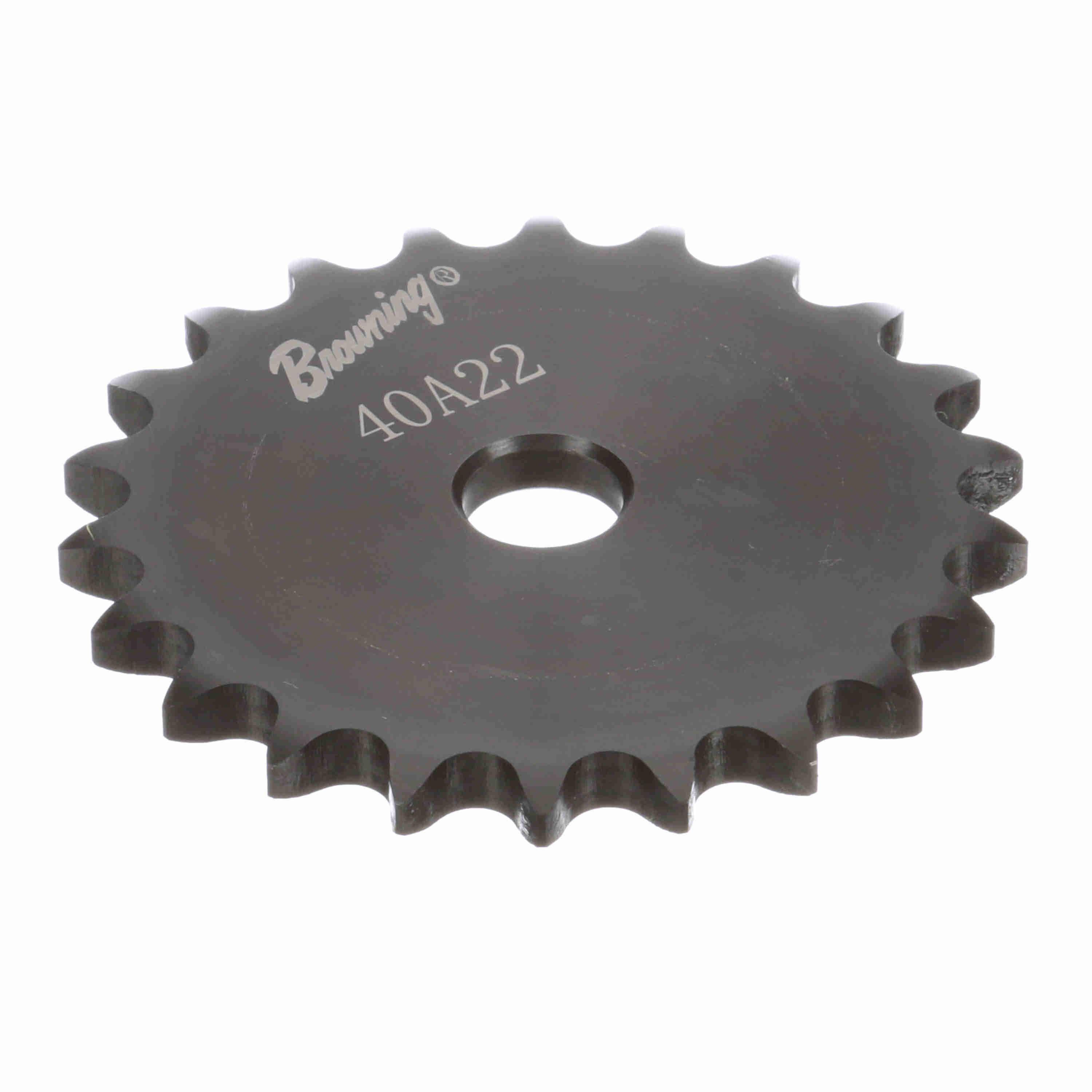

Browning 22-TOOTH MPB #40-1 CHAIN SPROCKETS BRW 40-A-22
Browning® 1108257 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 5/8 in Dia Bore, 3.78 in OD, #40 Chain, 22 Teeth, 1/2 in Pitch, Steel
-
BrandBrowning®
-
UPC662289300907
-
Manufacturer Part Number1108257
-
CountryUSA
-
Pitch1/2 in
-
Pitch Diameter3.513 in
-
MaterialSteel
-
Chain Size#40
-
TypeSingle Strand Plate Type A
-
Number of Teeth22
-
Outside Diameter3.78 in
-
Length Through Bore0.284 in
-
Bore Diameter5/8 in
- When you think Sprockets - Think Browning
-
Alternative Part Number40A22
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
