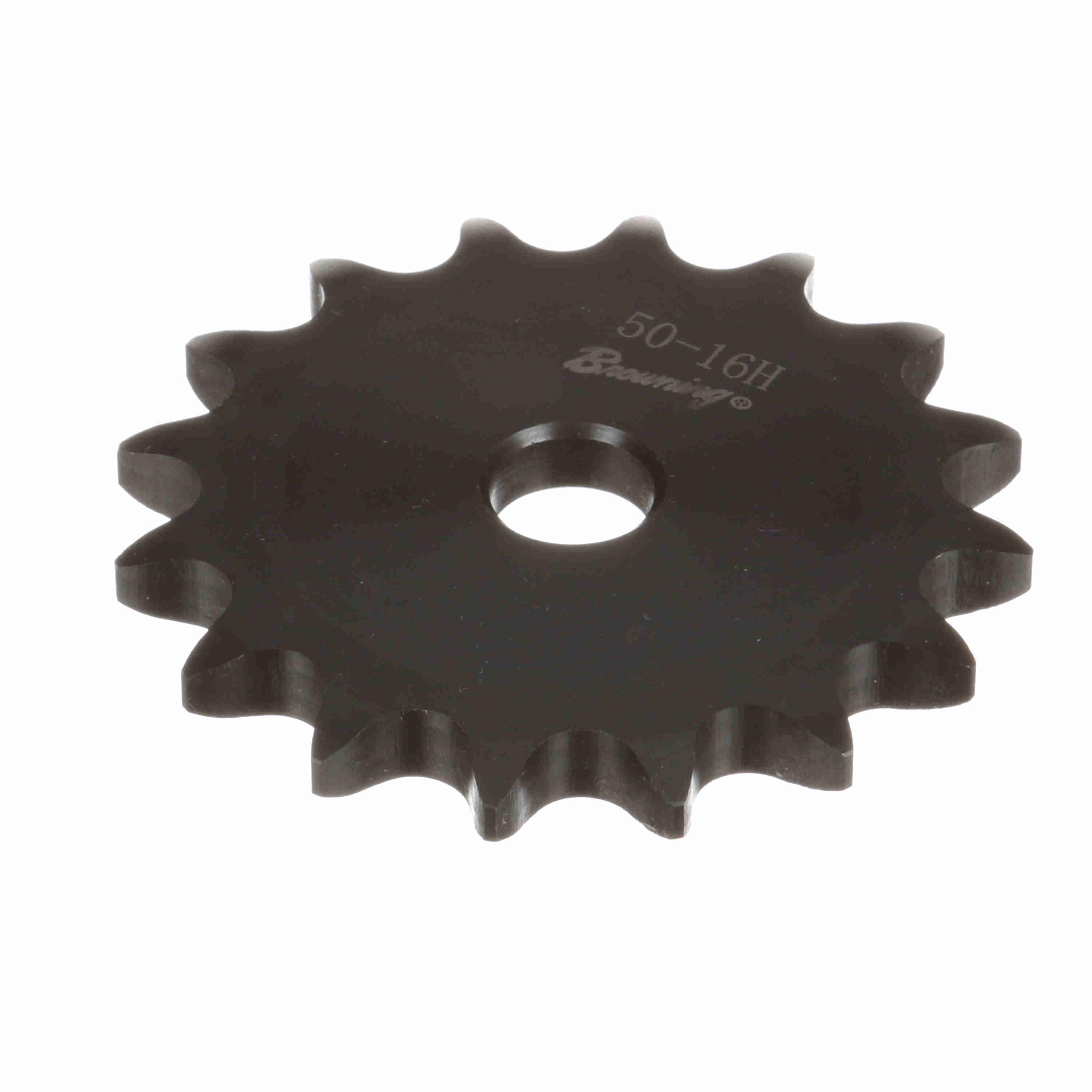

Browning® 1108760 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 5/8 in Dia Bore, 3.52 in OD, #50 Chain, 16 Teeth, 5/8 in Pitch, Steel
Browning® 1108760 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 5/8 in Dia Bore, 3.52 in OD, #50 Chain, 16 Teeth, 5/8 in Pitch, Steel
-
BrandBrowning®
-
UPC662289301355
-
Manufacturer Part Number1108760
-
CountryUSA
-
Pitch5/8 in
-
Pitch Diameter3.204 in
-
MaterialSteel
-
Chain Size#50
-
TypeSingle Strand Plate Type A
-
Number of Teeth16
-
Outside Diameter3.52 in
-
Length Through Bore0.343 in
-
Bore Diameter5/8 in
- Solid plate
- No hub projection
- High quality, high carbon steel
- Browning® offers type A plate steel sprockets in single strands
- Lasts longer than sprockets made from low carbon steel
- For use with 5/8 in pitch ANSI chain
-
Alternative Part Number50A16
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
